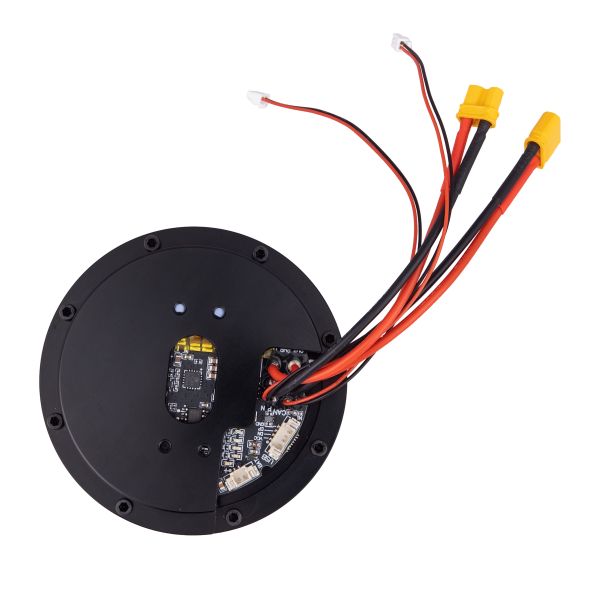

ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
ZBDynamiX ZPA60-10-39-D High-Torque Planetary Joint Actuator | 79 mm Diameter, 39:1 Reduction Ratio, 76 Nm Peak Torque
Specifications
Brand Name :
ZBDynamiX
Model Number :
ZPA60-10-39-D
Place of Origin :
CHINA
MOQ :
2
Price :
To be negotiate
Payment Terms :
L/C,T/T,D/P
Supply Ability :
1000+ units
Delivery Time :
30 work days
Packaging Details :
Standard export package
Description
Key Attributes
OD 79 mm
Reduction Ratio 39:1
Weight 640 g
Rated Torque 25 Nm
Peak Torque 76 Nm
Rated Speed 80 rpm
Peak Speed 100 rpm
Rated Voltage 48 V
Rated Current 7.5 A
Peak Current 25 A
Backlash 10 arcmin
Comm. Protocol CAN
Encoder Mech. Dual, 14bit
Noise Level ≤60 dB
Oper. Temp. Range -20~50℃
Application Field Knee/Shoulder
Warranty Period 1 YEAR
Comm. Protocol
CAN/EC
Motor Efficiency
IE 4
Motor Mounting Type
Flange Mount
Rated Power
360W
Customizable
OEM,ODM
