Specifications
Brand Name :
ZBDynamiX
Model Number :
ZPA43-10-40-D-CO
Place of Origin :
CHINA
MOQ :
2
Price :
To be negotiate
Payment Terms :
L/C,T/T,D/P
Supply Ability :
1000+ units
Delivery Time :
30 work days
Packaging Details :
Standard export package
Description
Key Attributes
OD 57 mm
Reduction Ratio 40:1
Weight 356 g
Rated Torque 10 Nm
Peak Torque 30 Nm
Rated Speed 31 rpm
Peak Speed 88 rpm
Rated Voltage 48 V
Rated Current 1.3 A
Peak Current 4 A
Backlash 10 arcmin
Comm. Protocol CAN
Encoder Mech. Dual, 14bit
Noise Level ≤60 dB
Oper. Temp. Range -20~50℃
Application Field Wrist/Elbow
Motor Efficiency
IE 4
Motor Mounting Type
Flange Mount
Rated Power
62.4W
Application

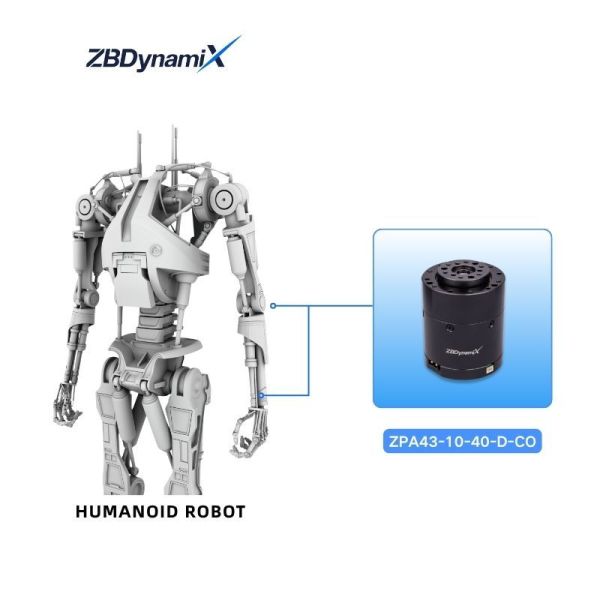

humanoid robot,robot dog,Exoskeleton
Customizable
 OEM,ODM
Warranty
 1 Year
