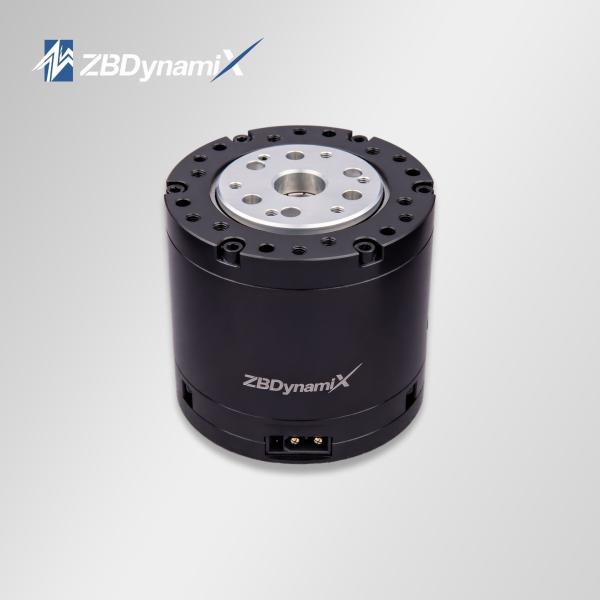

ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
ZBDynamiX ZPA43-15-36-D-CO Integrated Planetary Joint Actuator | 70 Nm Peak Torque, 36:1 Ratio, OD56 mm
Specifications
Brand Name :
ZBDynamiX
Model Number :
ZPA43-15-36-D-CO
Place of Origin :
CHINA
MOQ :
2
Price :
To be negotiate
Payment Terms :
L/C,T/T,D/P
Supply Ability :
1000+ units
Delivery Time :
30 work days
Packaging Details :
Standard export package
Description
Key Attributes

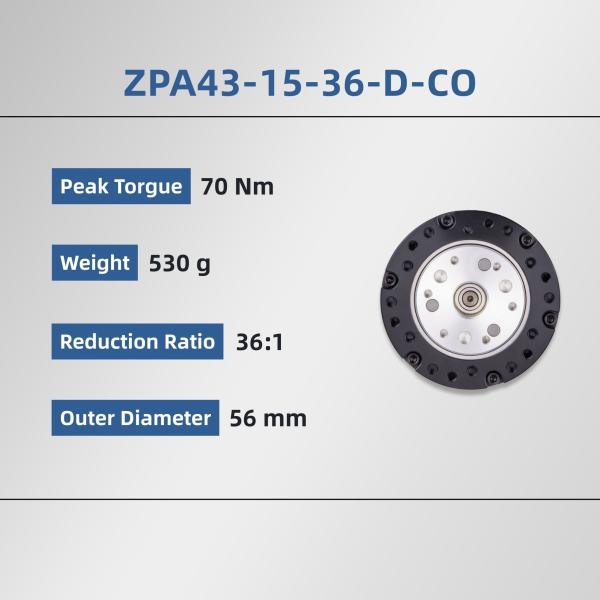

OD 56 mm
Reduction Ratio 36:1
Weight 530 g
Rated Torque 20 Nm
Peak Torque 70 Nm
Rated Speed 80 rpm
Peak Speed 117 rpm
Rated Voltage 48 V
Rated Current 7 A
Peak Current 25 A
Backlash 10 arcmin
Comm. Protocol CAN
Encoder Mech. Dual, 14bit
Noise Level ≤60 dB
Oper. Temp. Range -20~50℃
Application Field Elbow/Knee
Motor Efficiency IE 4
Motor Mounting Type Flange Mount
Rated Power 336W
Application humanoid robot,robot dog,Exoskeleton
Customizable OEM,ODM
Warranty 1 Year
