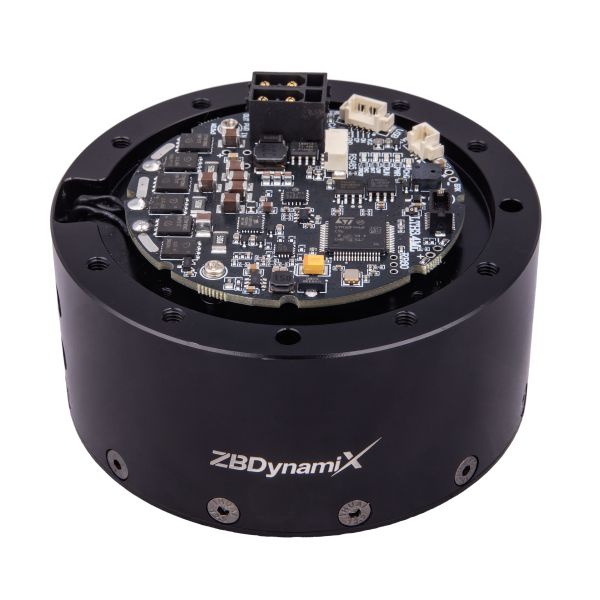

ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
ZBDynamiX ZPA72-10-36-D Integrated Planetary Joint Actuator | 82 Nm Peak Torque, 36:1 Ratio, OD86.5 mm
Specifications
Brand Name :
ZBDynamiX
Model Number :
ZPA72-10-36-D
Place of Origin :
CHINA
MOQ :
2
Price :
To be negotiate
Payment Terms :
L/C,T/T,D/P
Supply Ability :
1000+ units
Delivery Time :
30 work days
Packaging Details :
Standard export package
Description
Key Attributes

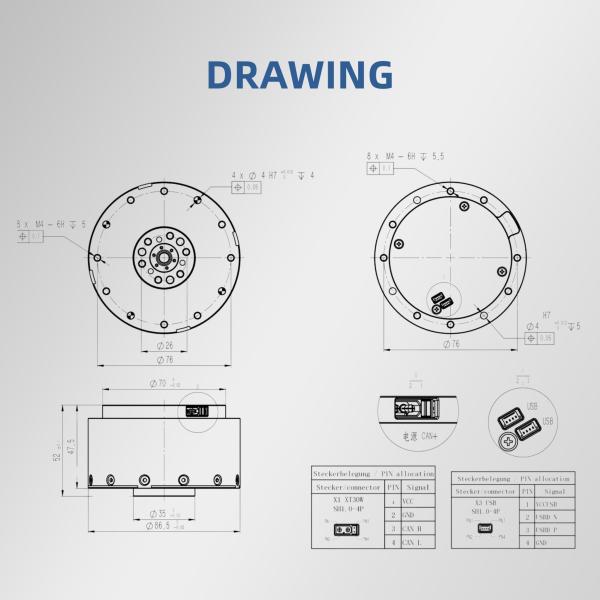

OD 86.5 mm
Reduction Ratio 36:1
Weight 630 g
Rated Torque 27 Nm
Peak Torque 82 Nm
Rated Speed 30 rpm
Peak Speed 64 rpm
Rated Voltage 48 V
Rated Current 7 A
Peak Current 17 A
Backlash 10 arcmin
Comm. Protocol
CAN/EC
Encoder Mech. Dual, 14bit
Noise Level ≤60 dB
Oper. Temp. Range -20~50℃

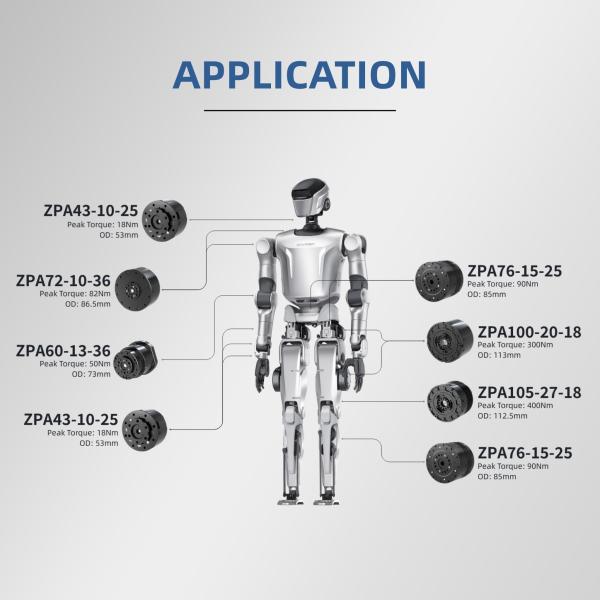

Application Field
Shoulder/Hip
Motor Efficiency
IE 4
Motor Mounting Type
Flange Mount
Rated Power
336W
Application
humanoid robot,robot dog,Exoskeleton
Warranty
1 Year
Customizable
OEM,ODM
