Specifications
Brand Name :
ZBDynamiX
Model Number :
ZPA76-15-25-D
Place of Origin :
CHINA
MOQ :
2
Price :
To be negotiate
Payment Terms :
L/C,T/T,D/P
Supply Ability :
1000+ units
Delivery Time :
30 work days
Packaging Details :
Standard export package
Description

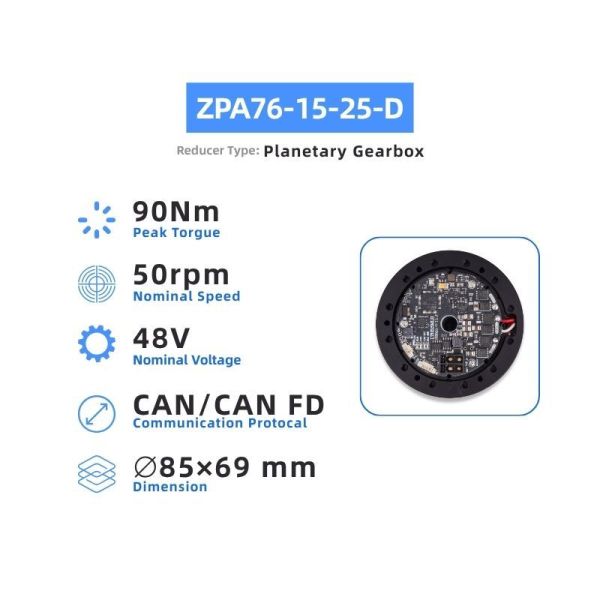

Key Attributes
OD 85 mm
Reduction Ratio 25:1
Weight 1000 g
Rated Torque 30 Nm
Peak Torque 90 Nm
Rated Speed 50 rpm
Peak Speed 88 rpm
Rated Voltage 48 V
Rated Current 8 A
Peak Current 25 A
Backlash 10 arcmin
Comm. Protocol
CAN/EC
Encoder Mech. Dual, 14bit
Noise Level ≤60 dB
Oper. Temp. Range -20~50℃
Application Field
Shoulder/Hip
Motor Efficiency
IE 4
Motor Mounting Type
Flange Mount
Rated Power
384W

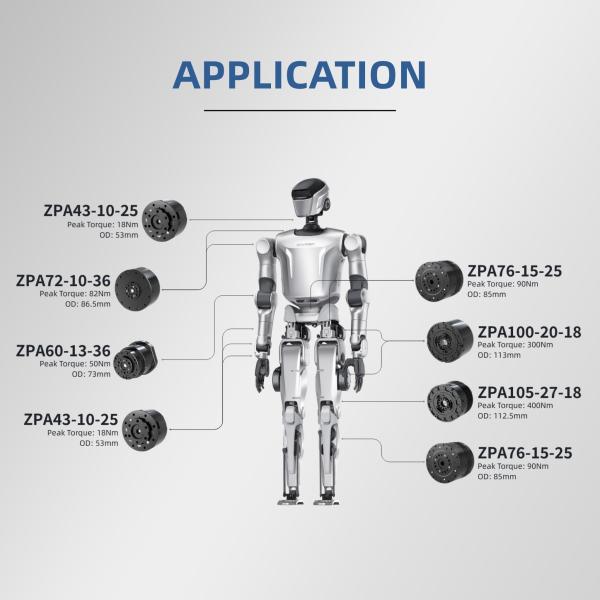

Application
humanoid robot,robot dog,Exoskeleton
Warranty
1 Year
Customizable
OEM,ODM
