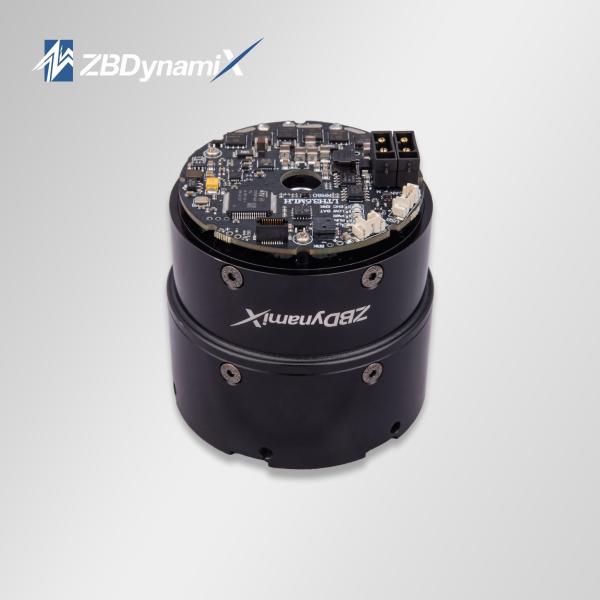

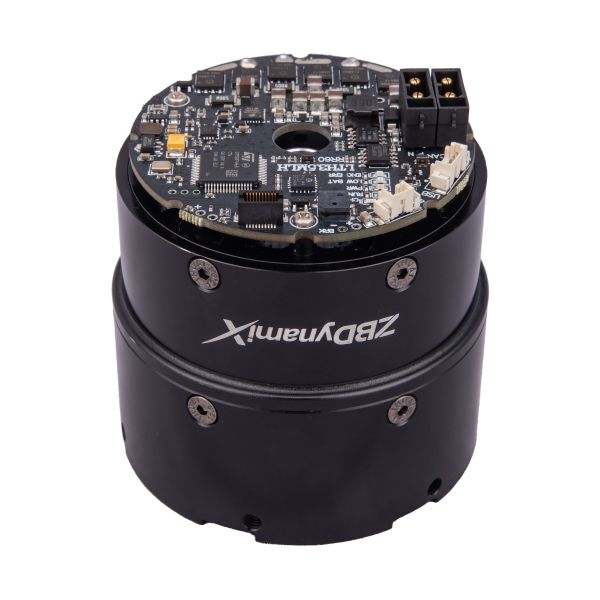

ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
ZBDynamiX ZPA60-10-16-D Integrated Planetary Joint Actuator | 25 Nm Peak Torque, 16:1 Ratio, OD69 mm
Specifications
Brand Name :
ZBDynamiX
Model Number :
ZPA60-10-16-D
Place of Origin :
CHINA
MOQ :
2
Price :
To be negotiate
Payment Terms :
Paypal，T/T
Supply Ability :
1000+ units
Delivery Time :
30 wokd days
Packaging Details :
Standard export package
Description

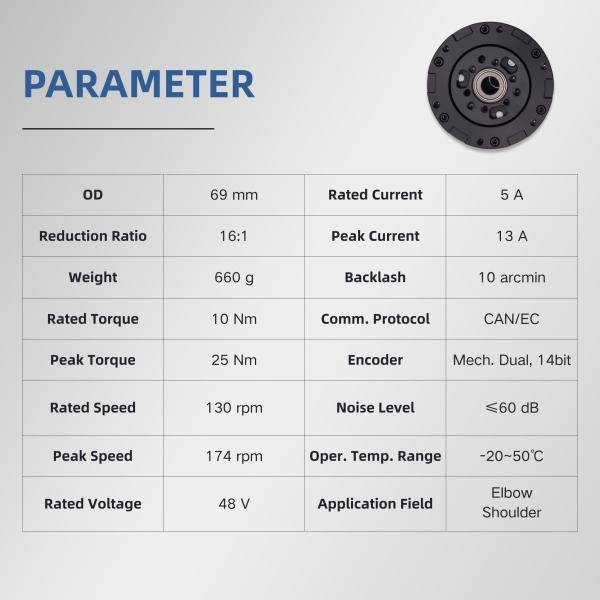

Key Attributes

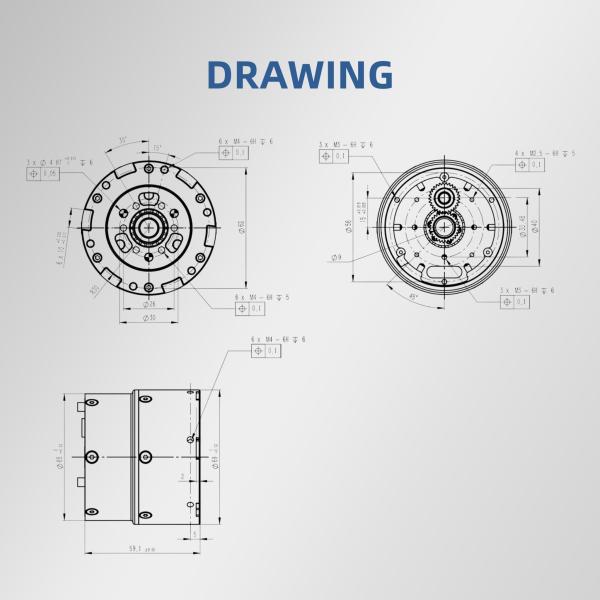

Dimension ⌀69×59.1 mm
Reduction Ratio 16
Backlash 10Arcmin
Output Bearing Crossed Roller Bearing
Backdrive Torque 0.5Nm
Mass 660g
Axial Load 10.6KN
Radial Load 5.8KN
Control Bandwidth 2000HZ
Communication Protocal CAN
Encoder Type Dual Mechanical Encoder
Encoder Resolution 14BIT
CAN Interface XT30(2+2)PB-M
USB Interface SH1.0-4P
Power Interface XT30(2+2)PB-M
Control Mode Position / Velocity / Torque / Hybrid F/P Control
Operating Voltage 12-72V
Nominal Voltage 48V
Nominal Torque 25Nm
Nominal Speed 80RPM
Nominal Current 7.5A(rms)
Peak Torque(>3s) 76Nm
Peak Speed 100RPM
Peak Current 25A(ms)
Torque Constant 3.3Nm/A
Velocity Constant 81rpm/V
Pole Pairs 14
Winding Connection ▲ (Delta)
Phase Resistance 0.7Ω
Phase Inductance 0.64mH
Moment of Inertia 89.389kg·mm2
Duty Type s2
IP Rating IP40
Cooling Method IC410
Operating Temperature -20℃~50℃
Insulation Class F
Dielectric Strength 500V 1kHz 1A 1ms
Insulation Resistance 100MΩ 20℃
Temperature Sensor NTC MF52B 103F3950
Noise Level 60dB/0.5m
Protection Functions Overvoltage Protection
Overcurrent Protection
Overtemperature Protection
