Specifications
Brand Name :
ZBDynamiX
Model Number :
ZPA81-12-18-D
Place of Origin :
CHINA
MOQ :
2
Price :
To be negotiate
Payment Terms :
L/C,T/T,D/P
Supply Ability :
1000+ units
Delivery Time :
30 work days
Packaging Details :
Standard export package
Description

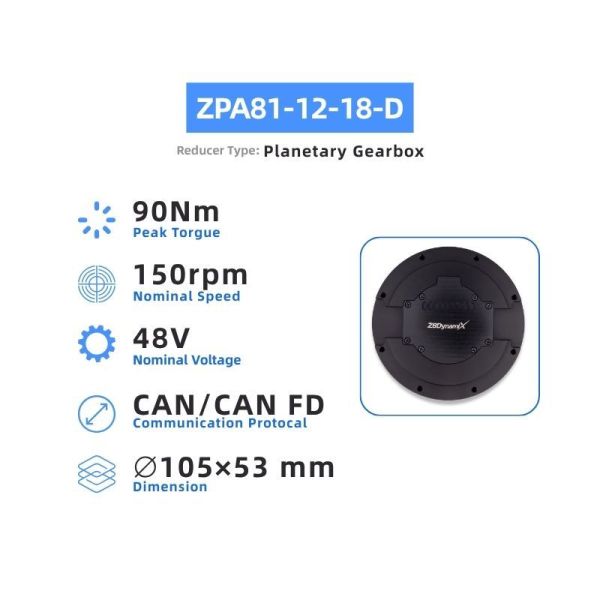

Key Attributes

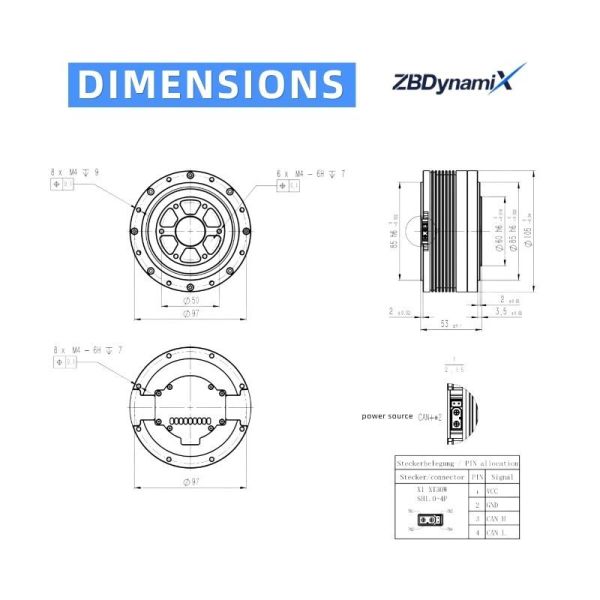

OD 105 mm
Reduction Ratio 18:1
Weight 900 g
Rated Torque 30 Nm
Peak Torque 90 Nm
Rated Speed 150 rpm
Peak Speed 190 rpm
Rated Voltage 48 V
Rated Current 16 A
Peak Current 57 A
Backlash 10 arcmin
Comm. Protocol
CAN/EC
Encoder Mech. Dual, 14bit
Noise Level ≤60 dB
Oper. Temp. Range -20~50℃
Application Field Hip/Knee
Motor Efficiency
IE 4
Motor Mounting Type
Flange Mount
Rated Power
768W
Application
humanoid robot,robot dog,Exoskeleton
Warranty
1 YEAR
Customizable
OEM,ODM
