Specifications
Brand Name :
ZBDynamiX
Model Number :
ZPA60-13-36-D
Place of Origin :
CHINA
MOQ :
2
Price :
To be negotiate
Payment Terms :
Paypal，T/T
Supply Ability :
1000+ units
Delivery Time :
30 work days
Packaging Details :
Standard export package
Description

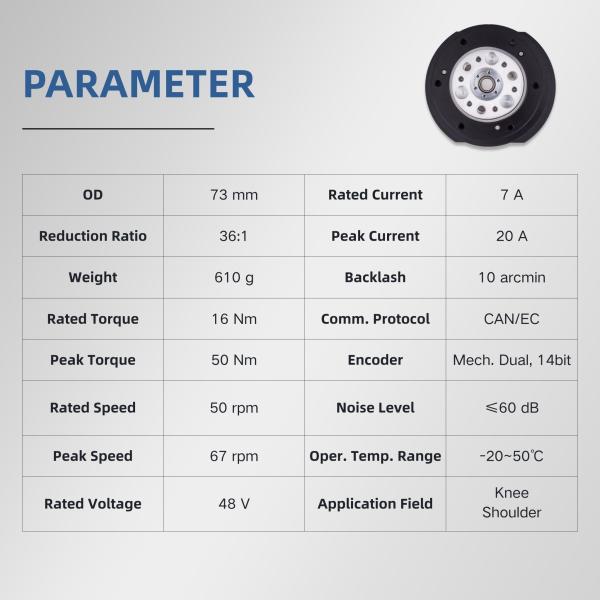

Key Attributes

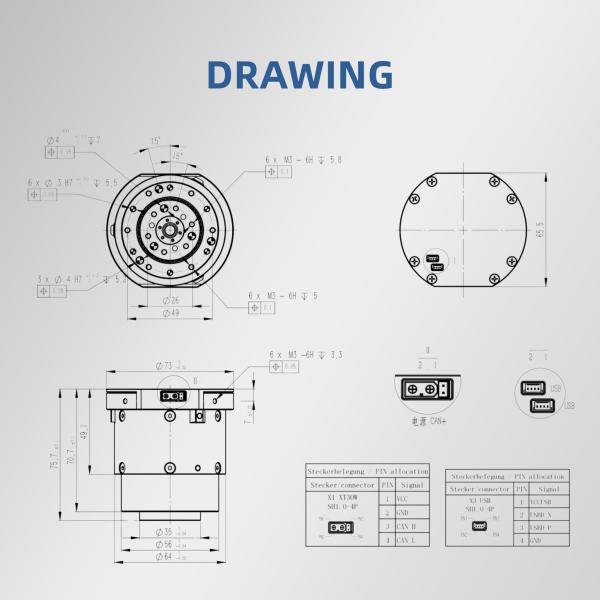

Dimension ⌀79×62.5 mm
Reduction Ratio 36
Backlash 10Arcmin
Output Bearing Crossed Roller Bearing
Backdrive Torque 1.3Nm
Mass 610g
Axial Load 4.8KN
Radial Load 2.1KN
Control Bandwidth 2000HZ
Communication Protocal CAN
Encoder Type Dual Mechanical Encoder
Encoder Resolution 14BIT
CAN Interface XT30(2+2)PW-M
USB Interface SH1.0-4P
Power Interface XT30(2+2)PW-M
Control Mode Position / Velocity / Torque / Hybrid F/P Control
Operating Voltage 12-72V
Nominal Voltage 48V
Nominal Torque 16Nm
Nominal Speed 50RPM
Nominal Current 7A(rms)
Peak Torque(>3s) 50Nm
Peak Speed 67RPM
Peak Current 20A(ms)
Torque Constant 2.29Nm/A
Velocity Constant 50rpm/V
Pole Pairs 7
Winding Connection Star (Wye)
Phase Resistance 0.62Ω
Phase Inductance 0.46mH
Moment of Inertia 17.79kg·mm2
Duty Type s2
IP Rating IP40
Cooling Method IC410
Operating Temperature -20℃~50℃
Insulation Class F
Dielectric Strength 500V 1kHz 1A 1ms
Insulation Resistance 100MΩ 20℃
Temperature Sensor NTC MF52B 103F3950
Noise Level 60dB/0.5m
Protection Functions Overvoltage Protection
Overcurrent Protection
Overtemperature Protection
