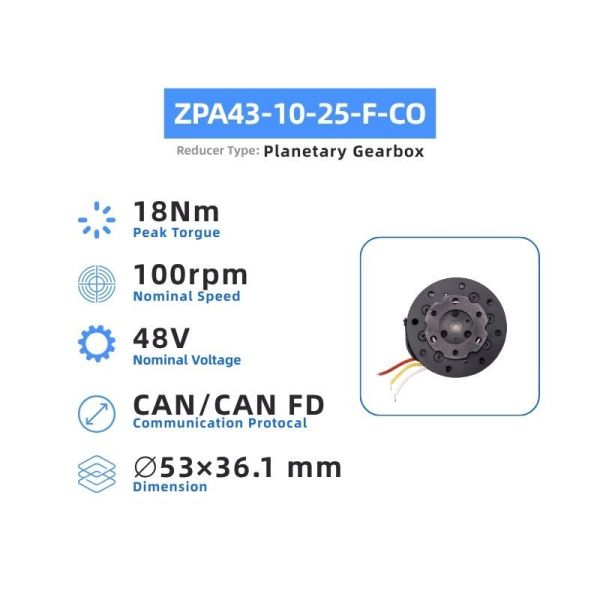

ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
ZBDynamiX ZPA43-10-25-D-CO Integrated Planetary Joint Actuator | 18 Nm Peak Torque, 25:1 Ratio, OD53 mm
Specifications
Brand Name :
ZBDynamiX
Model Number :
ZPA43-10-25-F-CO
Place of Origin :
CHINA
MOQ :
2
Price :
To be negotiate
Payment Terms :
L/C,T/T,D/P
Supply Ability :
1000+ units
Delivery Time :
30 work days
Packaging Details :
Standard export package
Description

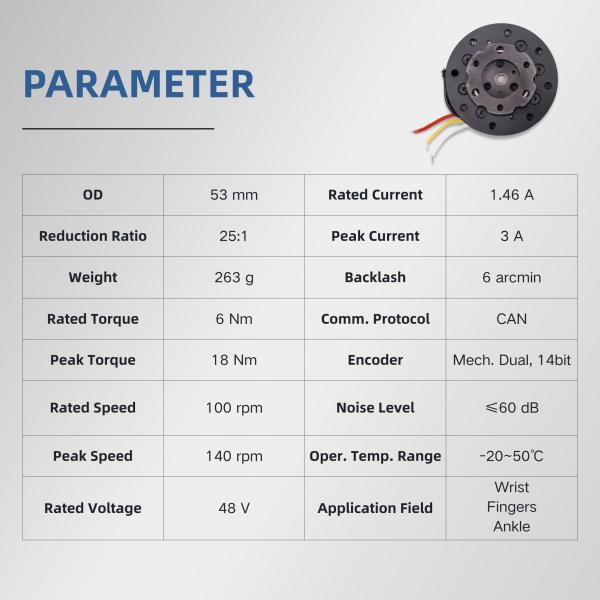

Key Attributes
OD 53 mm
Reduction Ratio 25:1
Weight 263 g
Rated Torque 6 Nm
Peak Torque 18 Nm
Rated Speed 100 rpm
Peak Speed 140 rpm
Rated Voltage 48 V
Rated Current 1.46 A
Peak Current 3 A
Backlash 6 arcmin
Comm. Protocol CAN
Encoder Mech. Dual, 14bit
Noise Level ≤60 dB
Oper. Temp. Range -20~50℃
Application Field Wrist/Fingers/Ankle
Motor Efficiency
IE 4
Motor Mounting Type
Flange Mount
Rated Power
70.08W
Application
humanoid robot,robot dog,Exoskeleton
Customizable
OEM,ODM
Warranty
1 Year
