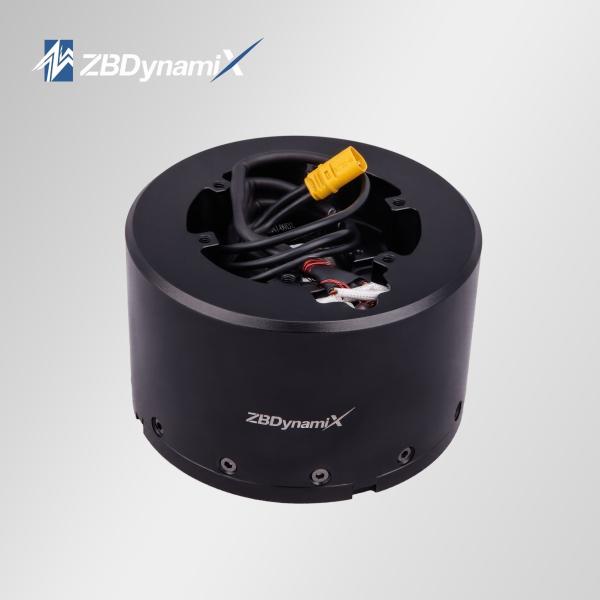

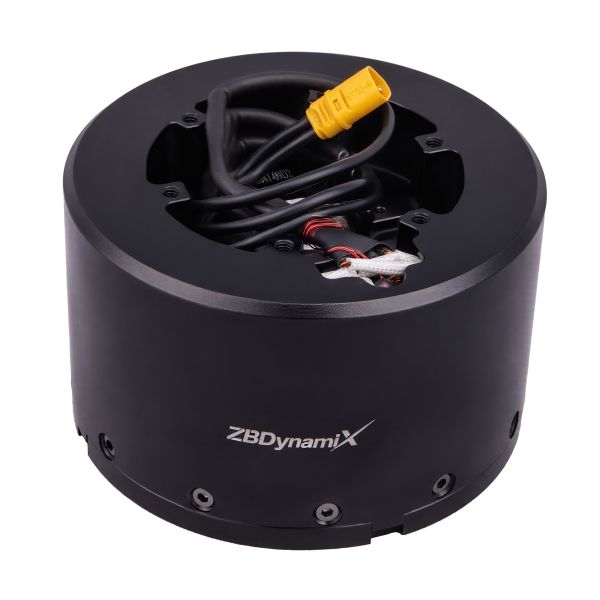

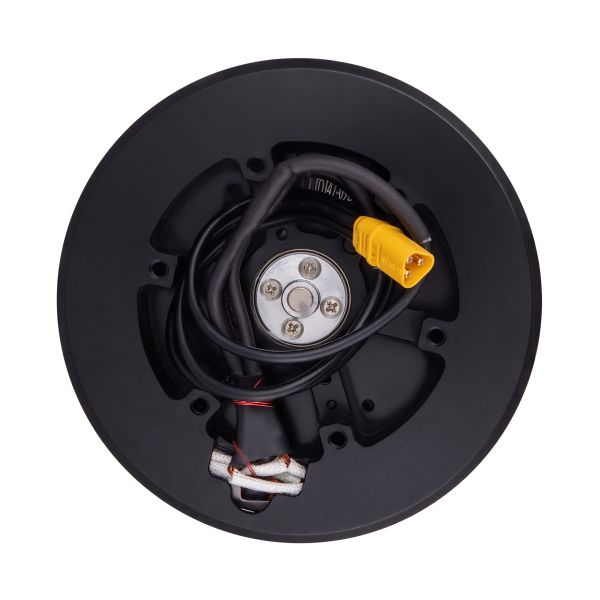

ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
ZBDynamiX ZPA100-20-18-D High-Torque Planetary Joint Actuator for Robotics | 300 Nm Peak Torque, 18:1 Ratio
Specifications
Brand Name :
ZBDynamiX
Model Number :
ZPA100-20-18-D
Place of Origin :
CHINA
MOQ :
2
Price :
To be negotiate
Payment Terms :
L/C,T/T,D/P
Supply Ability :
1000+ units
Delivery Time :
30 work days
Packaging Details :
Standard export package
Description

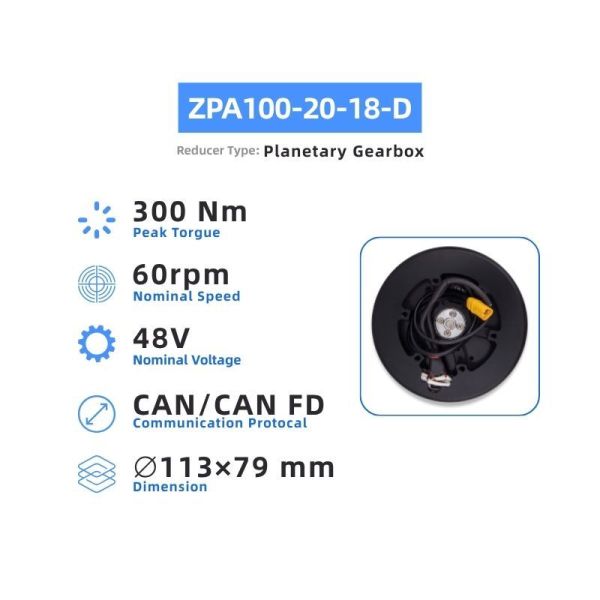

Key Attributes
OD 113 mm
Reduction Ratio 18:1
Weight
1675g
Rated Torque 60 Nm
Peak Torque 300 Nm
Motor Efficiency
IE 4
Peak Speed 106 rpm
Rated Voltage 48 V
Rated Current 17 A
Peak Current 100 A
Backlash
10arcmin
Comm. Protocol
CAN/EC
Encoder Mech. Dual, 14bit
Noise Level ≤60 dB
Oper. Temp. Range -20~50℃
Application Field
Waist/Hip/Shoulder
Motor Mounting Type
Flange Mount
Rated Power
816W
Customizable
OEM,ODM
Warranty
1 Year
