Specifications
Brand Name :
ZBDynamiX
Model Number :
ZPA100-20-10-D
Place of Origin :
CHINA
MOQ :
2
Price :
To be negotiate
Payment Terms :
L/C,T/T,D/P
Supply Ability :
1000+ units
Delivery Time :
30 work days
Packaging Details :
Standard export package
Description

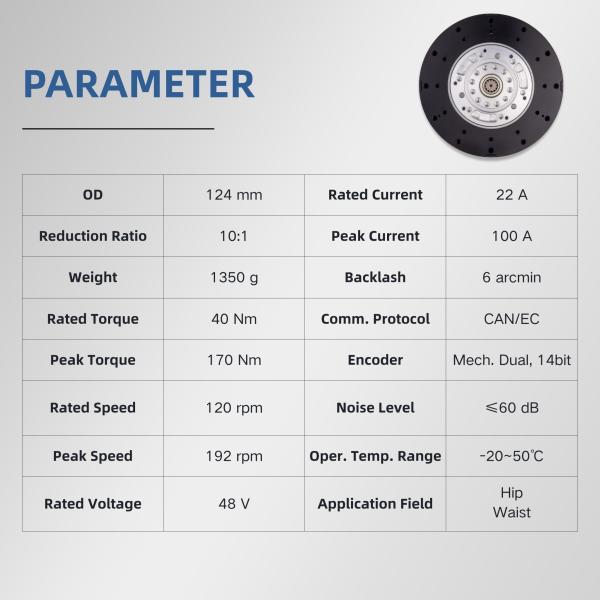

Key Attributes
OD 124 mm
Reduction Ratio 10:1
Weight 1350 g
Rated Torque 40 Nm
Peak Torque 170 Nm
Rated Speed 120 rpm
Peak Speed 192 rpm
Rated Voltage 48 V
Rated Current 22 A
Peak Current 100 A
Backlash 6 arcmin
CAN/EC
CAN/EC
Comm. Protocol
 Mech. Dual, 14bit
Noise Level ≤60 dB
Oper. Temp. Range -20~50℃
Application Field Hip/Waist
Motor Efficiency
IE 4
Motor Mounting Type
Flange Mount
Rated Power
1056W
Customizable
OEM,ODM
Warranty
1 YEAR

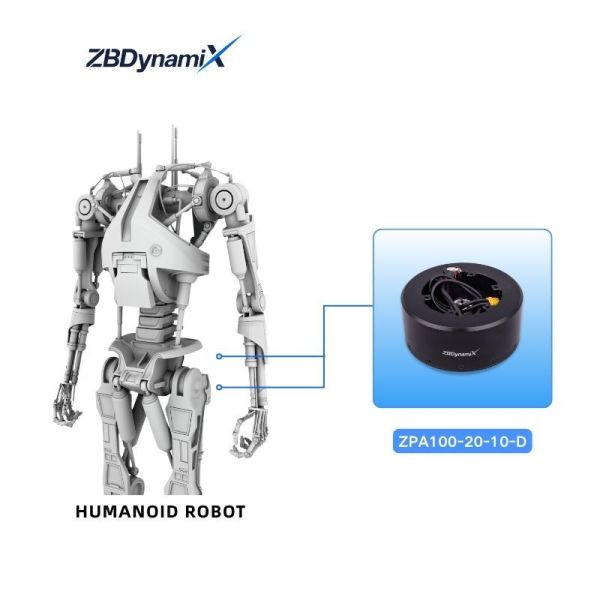

Application
humanoid robot,robot dog,Exoskeleton
