Capacitive LCD TFT Display Screen 4.3 Inch 480x272 With ST7282C Driver IC
Capacitive LCD TFT Display Screen 4.3 Inch 480x272 With ST7282C Driver IC
Capacitive LCD TFT Display Screen 4.3 Inch 480x272 With ST7282C Driver IC
Capacitive LCD TFT Display Screen 4.3 Inch 480x272 With ST7282C Driver IC
Capacitive LCD TFT Display Screen 4.3 Inch 480x272 With ST7282C Driver IC
Capacitive LCD TFT Display Screen 4.3 Inch 480x272 With ST7282C Driver IC
Capacitive LCD TFT Display Screen 4.3 Inch 480x272 With ST7282C Driver IC
Capacitive LCD TFT Display Screen 4.3 Inch 480x272 With ST7282C Driver IC
Capacitive LCD TFT Display Screen 4.3 Inch 480x272 With ST7282C Driver IC
Capacitive LCD TFT Display Screen 4.3 Inch 480x272 With ST7282C Driver IC
Capacitive LCD TFT Display Screen 4.3 Inch 480x272 With ST7282C Driver IC
Capacitive LCD TFT Display Screen 4.3 Inch 480x272 With ST7282C Driver IC
Capacitive LCD TFT Display Screen 4.3 Inch 480x272 With ST7282C Driver IC
Capacitive LCD TFT Display Screen 4.3 Inch 480x272 With ST7282C Driver IC
Specifications
Packaging Details :
Tray + Inner Box + Carton
Touch Screen :
With capacitive touch screen
Dimensions :
105.5mm x 67.2mm x 4.3mm
Payment Terms :
T/T,L/C,Credit card,Cash
Product Name :
480x272 LCD TFT 4.3 Inch Capacitive Touch Screen With ST7282C Driver IC
Operating Temperature :
-20°C to 70°C
Interface :
40Pin, 24 BIT RGB
Controller Ic :
ST7282C
Display Type :
4.3Inch TFT LCD Module
Model Number :
KWH043ST44-C02
Supply Voltage :
3.3V
MOQ :
1 piece
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Viewing Angle :
All
Display Size :
4.3-inch
Color :
Color
Place of Origin :
China
Resolution :
480x272
Brand Name :
Formike
Supply Ability :
5000000000 pieces/year
Description

480x272 LCD TFT 4.3 Inch Capacitive Touch Screen With ST7282C Driver IC

Capacitive LCD TFT Display Screen 4.3 Inch 480x272 With ST7282C Driver IC

Product Name 480x272 LCD TFT 4.3 Inch Capacitive Touch Screen With ST7282C Driver IC
LCD Size 4.3 Inch IPS TFT LCD Display Module
Display Mode Transmissive
Resolution 480x272

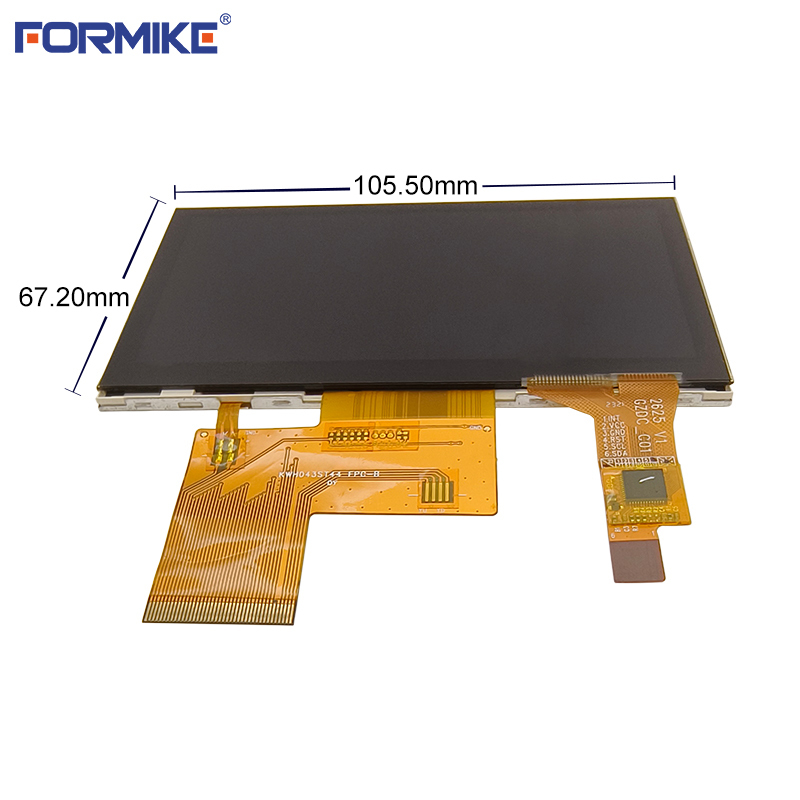

Outline Dimension (mm) 105.50x67.20x4.30
Active Area (mm) 95.04x53.86
Dot pitch (mm) 0.198x0.198
Viewing Direction ALL
Interface 24 BIT RGB Interface, 40 Pin
Color Depth 16M
Brightness (Cd/m2) 350
Contrast Ratio 800:1
Backlight 127 White LED

Backlight Supply

(Current/Voltage)

 20mA 22.4V
Touch Screen With Capacitive Touch Panel

* KWH043ST44-C02 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 480x272 resolution IPS TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
