Specifications
Color :
Color
Supply Voltage :
3.3V
Packaging Details :
Tray + Inner Box + Carton
Product Name :
4.3-Inch 480x272 High Brightness RGB TFT LCD Module 40Pin LCD RGB TFT Display With Capacitive Touch
Brand Name :
Formike
Operating Temperature :
-20°C to 70°C
Controller Ic :
ST7282
Viewing Angle :
6 O'Clock
Dimensions :
105.5mm x 67.2mm x 4.3mm
MOQ :
1 piece
Display Size :
4.3-inch
Touch Screen :
With capacitive touch
Resolution :
480*272
Place of Origin :
China
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Supply Ability :
5000000000 pieces/year
Display Type :
4.3 Inch TFT LCD Screen
Payment Terms :
T/T,L/C,Credit card,Cash
Model Number :
KWH043ST43-C03
Interface :
40 Pin, 24 BIT RGB
Description

4.3-Inch 480x272 High Brightness RGB TFT LCD Module 40Pin LCD RGB TFT Display With Capacitive Touch

High Brightness RGB TFT LCD Display Module 40Pin Capacitive Touch 4.3Inch 480x272

LCD Name 4.3-Inch 480x272 High Brightness RGB TFT LCD Module 40Pin LCD RGB TFT Display With Capacitive Touch

LCD Size

4.3 Inch LCD Screen

Resolution

480X272

Color Depth

16M

Contrast Ratio

550:1

Outline Dimension

105.5x 67.20 x 4.30mm

Active Area(HxV mm)

95.04x53.86mm

Viewing Direction

6 O'Clock

Interface

24 BIT RGB, 40 Pin

Backlight

16 White LED

Brightness

850cd/m2

Operating Temperature

-20℃~70℃

Backlight Supply Current/Voltage

40mA, 24V

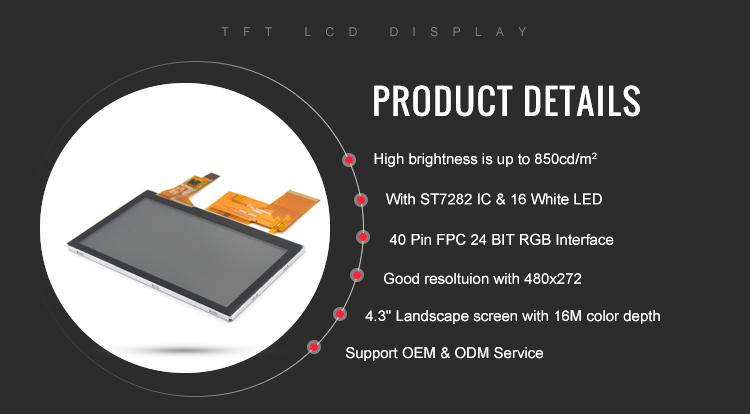

Support with LCD Driver Board
With Capacitive Touch Panel

High brightness is up to 850cd/m2

* KWH043ST43-C03 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 480x272 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
