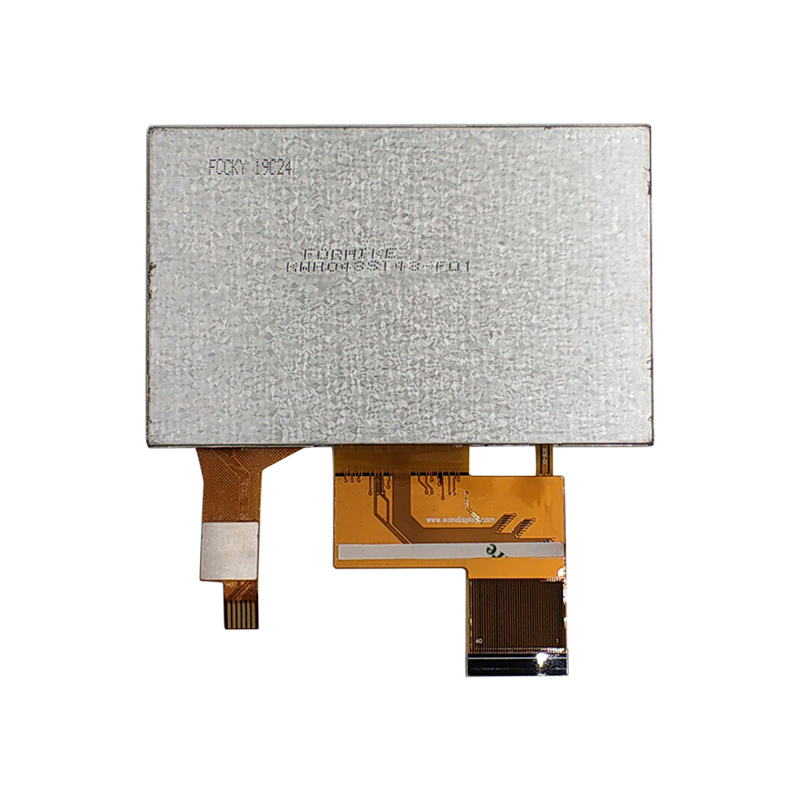

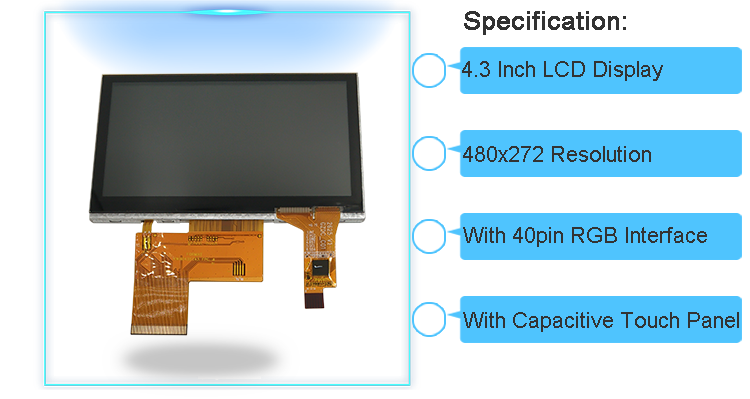

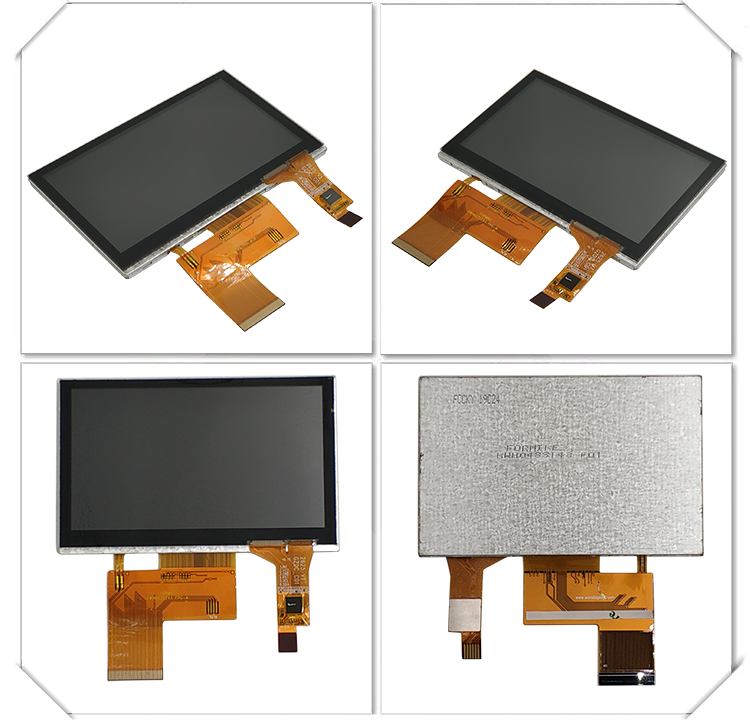

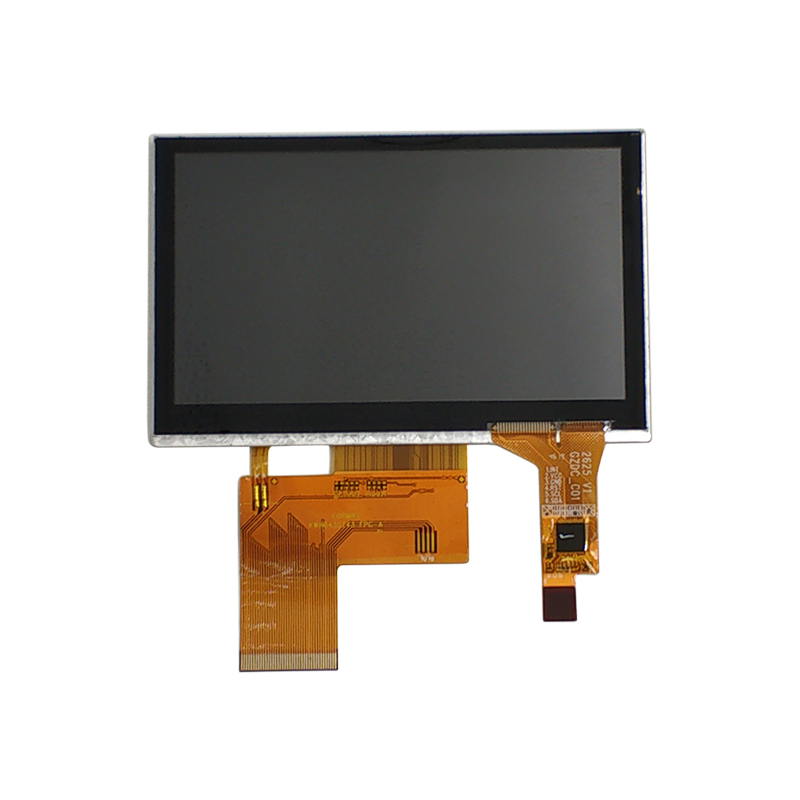

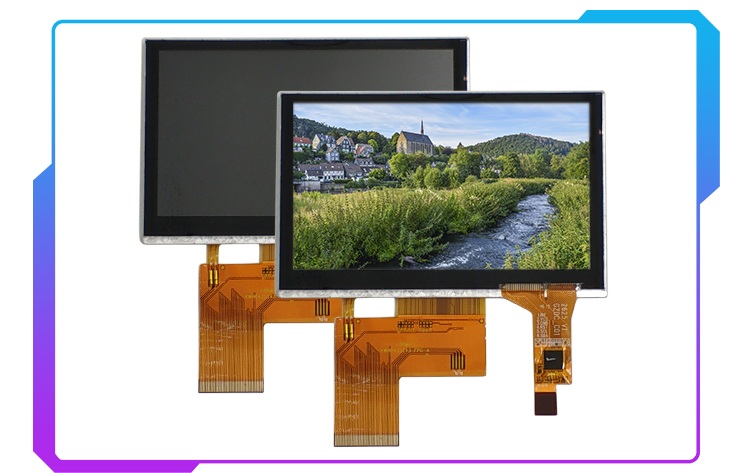

Touch LCD IPS TFT Color Display 4.3 Inch 480x272 Car Navigation And Industrial Screen
Touch LCD IPS TFT Color Display 4.3 Inch 480x272 Car Navigation And Industrial Screen
Touch LCD IPS TFT Color Display 4.3 Inch 480x272 Car Navigation And Industrial Screen
Touch LCD IPS TFT Color Display 4.3 Inch 480x272 Car Navigation And Industrial Screen
Touch LCD IPS TFT Color Display 4.3 Inch 480x272 Car Navigation And Industrial Screen
Touch LCD IPS TFT Color Display 4.3 Inch 480x272 Car Navigation And Industrial Screen
Touch LCD IPS TFT Color Display 4.3 Inch 480x272 Car Navigation And Industrial Screen
Touch LCD IPS TFT Color Display 4.3 Inch 480x272 Car Navigation And Industrial Screen
Touch LCD IPS TFT Color Display 4.3 Inch 480x272 Car Navigation And Industrial Screen
Touch LCD IPS TFT Color Display 4.3 Inch 480x272 Car Navigation And Industrial Screen
Touch LCD IPS TFT Color Display 4.3 Inch 480x272 Car Navigation And Industrial Screen
Touch LCD IPS TFT Color Display 4.3 Inch 480x272 Car Navigation And Industrial Screen
Specifications
Display Size :
4.3inch
Operating Temperature :
-20°C to 70°C
Product Name :
TFT Touch Display LCD 4.3 Inch 480x272 Car Navigation And Industrial Screen
Display Type :
4.3 Inch TFT LCD
Payment Terms :
T/T,L/C,Credit card,Cash
Viewing Angle :
6 O'Clock
Color :
Color
Resolution :
480x272
Packaging Details :
Tray + Inner Box + Carton
Controller Ic :
ST7282
MOQ :
1 piece
Supply Voltage :
3.3V
Supply Ability :
5000000000 pieces/year
Touch Screen :
With capacitive touch module
Interface :
40Pin, 24 BIT RGB
Dimensions :
105.5mm x 67.2mm x 4.3mm
Brand Name :
Formike
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Model Number :
KWH043ST43-C01
Place of Origin :
China
Description

TFT Touch Display LCD 4.3 Inch 480x272 Car Navigation And Industrial Screen

Touch LCD IPS TFT Color Display 4.3 Inch 480x272 Car Navigation And Industrial Screen

Product Name TFT Touch Display LCD 4.3 Inch 480x272 Car Navigation And Industrial Screen
LCD Size 4.3 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 480x272
Outline Dimension (mm) 105.50x67.20x4.30
Active Area (mm) 95.04x53.86
Dot pitch (mm) 0.198x0.198
Viewing Direction 6 O'clock
Interface RGB Interface, 40 Pin
Color Depth 16M
Brightness (Cd/m2) 250
Contrast Ratio 550:1
Backlight 7 White LED In Serial

Driver IC

 ST7282

Backlight Supply

(Current/Voltage)

 20mA 22.4V
Touch Screen With Capacitive Touch Panel

* KWH043ST43-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 480x272 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
