Specifications
Color :
Color
Supply Voltage :
3.3V
Packaging Details :
Tray + Inner Box + Carton
Product Name :
4.3 Inch TFT LCD Display 480x272 Resolution 40 Pin LCD Panel
Operating Temperature :
-20°C to 70°C
Brand Name :
Formike
Controller Ic :
ST7282
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Viewing Angle :
6 O'Clock
Dimensions :
105.5mm x 67.2mm x 3.0mm
Place of Origin :
China
Interface :
40 Pin, 24 BIT RGB
Model Number :
KWH043ST43-F01
Display Size :
4.3inch
MOQ :
1 piece
Touch Screen :
Without (Optional with touch screen)
Resolution :
480*272
Payment Terms :
T/T,L/C,Credit card,Cash
Display Type :
4.3 Inch TFT LCD Module
Supply Ability :
5000000000 pieces/year
Description

4.3 Inch TFT LCD Display 480x272 Resolution 40 Pin LCD Panel

ODM 4.3 Inch SPI TFT Display 480x272 40 Pin LCD Liquid Crystal Display Panel

Product Name4.3 Inch TFT LCD Display 480x272 Resolution 40 Pin LCD Panel
LCD Size4.3 Inch TFT LCD Display Module
Display ModeTransmissive
Resolution480x272

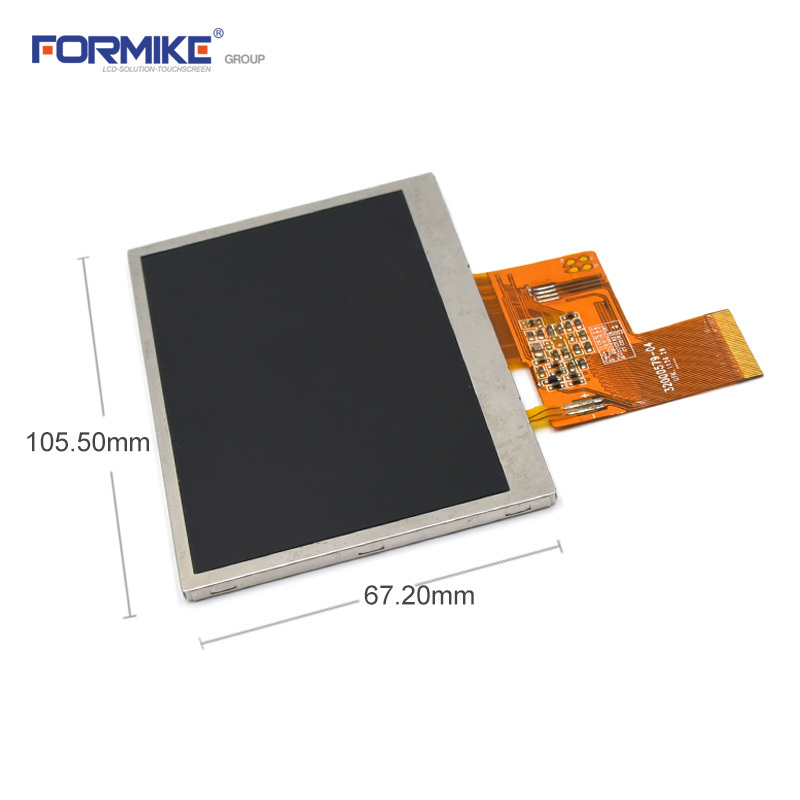

Outline Dimension (mm)105.50x67.20x3.00
Active Area (mm)95.04x53.86
Dot pitch (mm)0.198x0.198
Viewing Direction6 O'clock
InterfaceRGB Interface, 40 Pin
Color Depth16M
Brightness (Cd/m2)300
Contrast Ratio500:1
Backlight7 White LED

Backlight Supply
(Current/Voltage)

20mA 22.4V
Driver ICST7282
Touch ScreenWithout (Optional with)

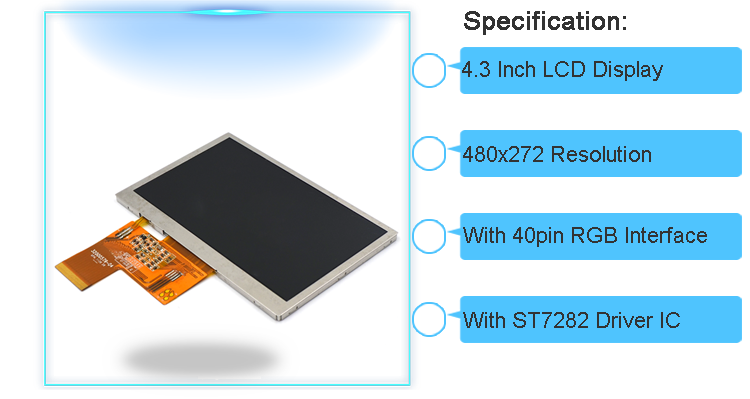

* KWH043ST43-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 480x272 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
