Anti Glare LCD TFT Display Touch Screen Module 4.3 Inch 480x272
Anti Glare LCD TFT Display Touch Screen Module 4.3 Inch 480x272
Anti Glare LCD TFT Display Touch Screen Module 4.3 Inch 480x272
Anti Glare LCD TFT Display Touch Screen Module 4.3 Inch 480x272
Anti Glare LCD TFT Display Touch Screen Module 4.3 Inch 480x272
Anti Glare LCD TFT Display Touch Screen Module 4.3 Inch 480x272
Anti Glare LCD TFT Display Touch Screen Module 4.3 Inch 480x272
Anti Glare LCD TFT Display Touch Screen Module 4.3 Inch 480x272
Anti Glare LCD TFT Display Touch Screen Module 4.3 Inch 480x272
Anti Glare LCD TFT Display Touch Screen Module 4.3 Inch 480x272
Anti Glare LCD TFT Display Touch Screen Module 4.3 Inch 480x272
Anti Glare LCD TFT Display Touch Screen Module 4.3 Inch 480x272
Anti Glare LCD TFT Display Touch Screen Module 4.3 Inch 480x272
Anti Glare LCD TFT Display Touch Screen Module 4.3 Inch 480x272
Specifications
Supply Ability :
5000000000 pieces/year
Interface :
40 Pin, 24 BIT RGB
Display Size :
4.3inch
Display Type :
4.3Inch TFT LCD Display
Payment Terms :
T/T, L/C, Credit card, Cash
Resolution :
480 x 272
Supply Voltage :
3.3V
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Product Name :
480x272 TFT Display 4.3 Inch LCD Screen With Touch Panel And Anti-Glare
Brand Name :
Formike
Place of Origin :
China
Operating Temperature :
-20°C to 70°C
Model Number :
KWH043ST44-F02
Controller Ic :
ST7282C
Viewing Angle :
All
Touch Screen :
With resistive touch screen
MOQ :
1 piece
Color :
Color
Packaging Details :
Tray + Inner Box + Carton
Dimensions :
105.5mm x 67.2mm x 4.2mm
Description

480x272 TFT Display 4.3 Inch LCD Screen With Touch Panel And Anti-Glare

Anti Glare LCD TFT Display Touch Screen Module 4.3 Inch 480x272

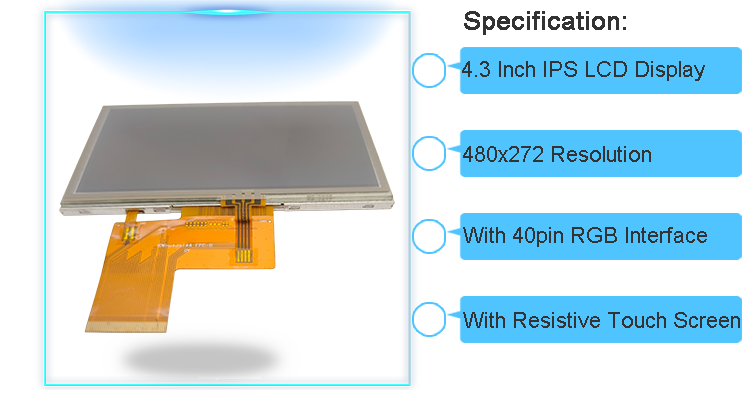

Product Name 480x272 TFT Display 4.3 Inch LCD Screen With Touch Panel And Anti-Glare
LCD Size 4.3 Inch IPS TFT LCD Display Module
Display Mode Transmissive
Resolution 480x272
Outline Dimension (mm) 105.50x67.20x4.20
Active Area (mm) 95.04x53.86
Dot pitch (mm) 0.198x0.198
Viewing Direction ALL
Interface 24 BIT RGB Interface, 40 Pin
Color Depth 16M
Brightness (Cd/m2) 250
Contrast Ratio 800:1
Backlight 7 White LED

Backlight Supply

(Current/Voltage)

 20mA 22.4V
Touch Screen With Resistive Touch Screen

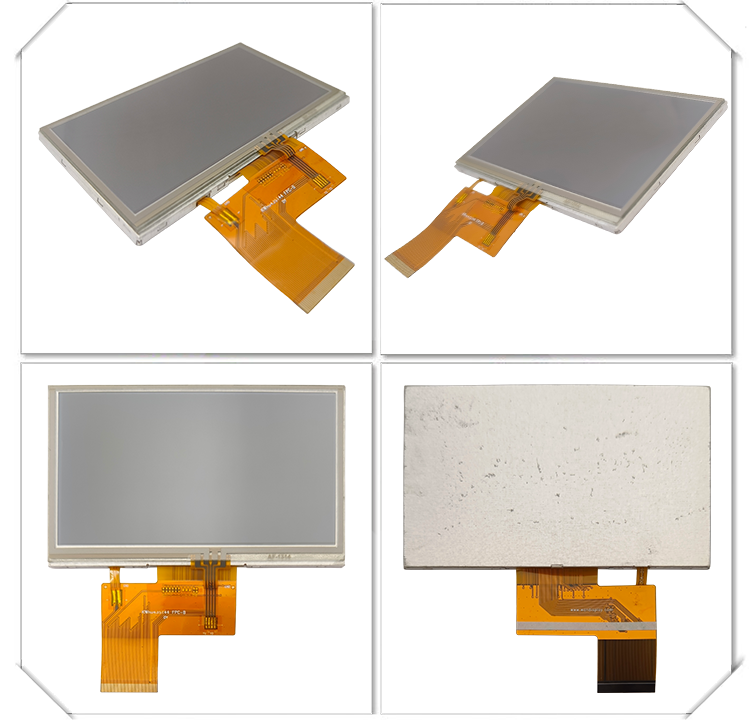

* KWH043ST44-F02 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.

* It is 480x272 resolution IPS TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
