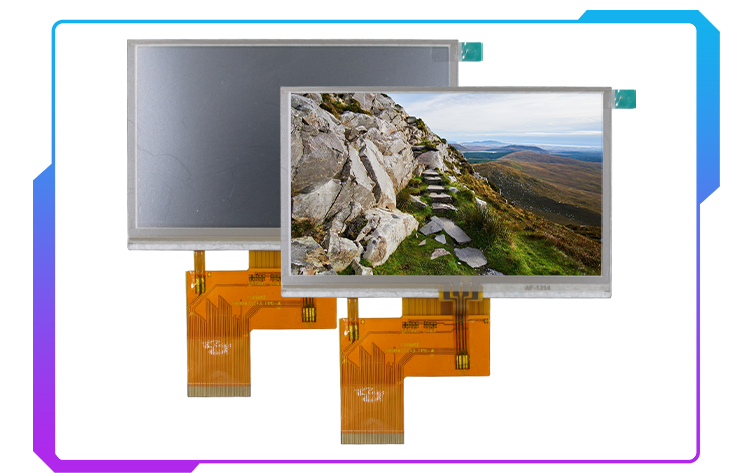

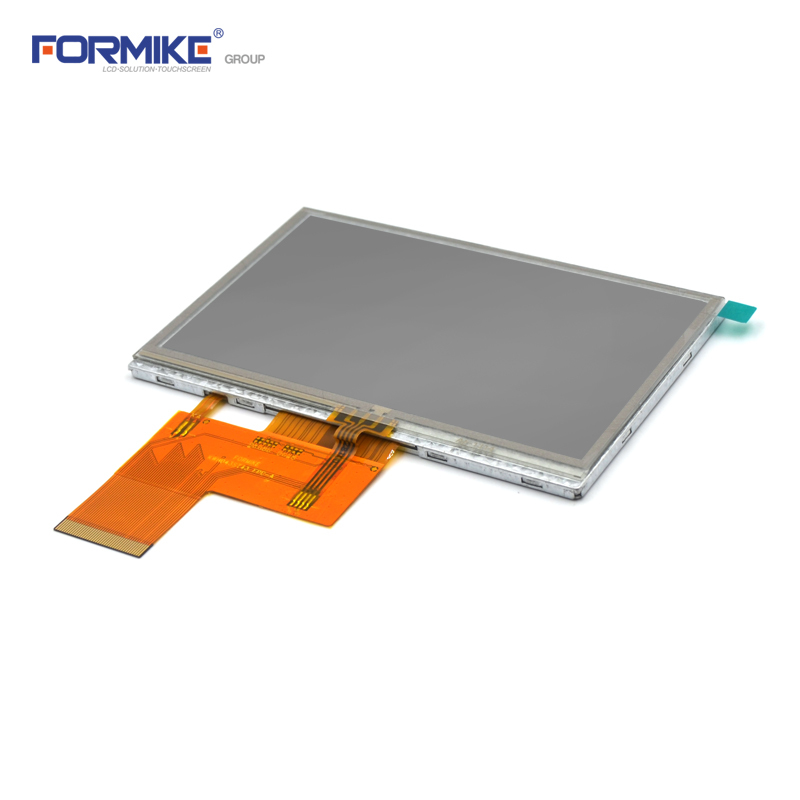

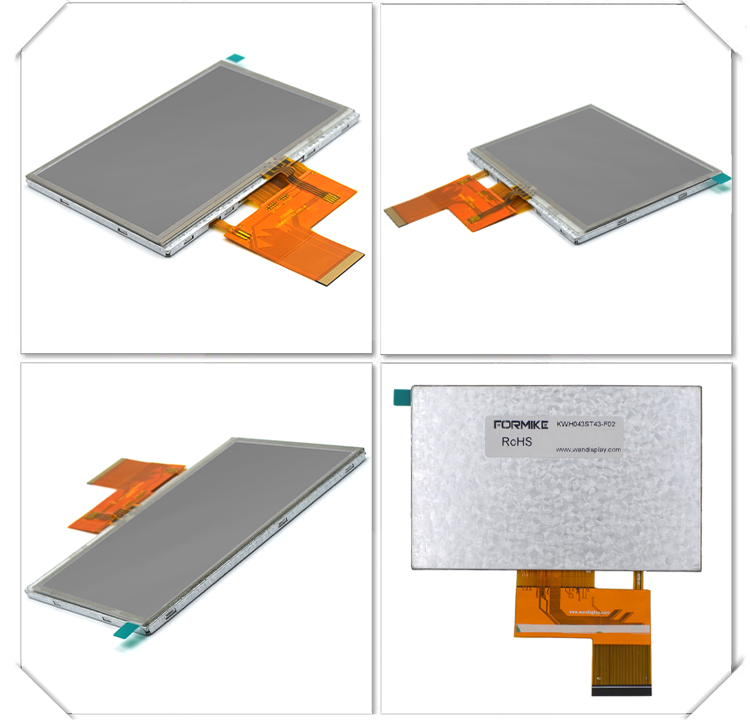

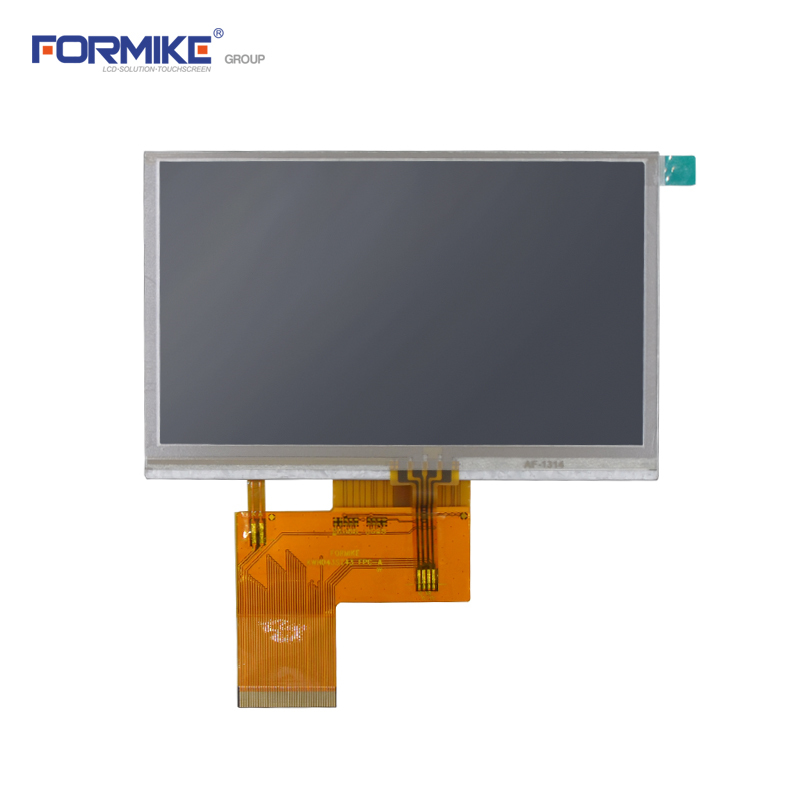

480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V
480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V
480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V
480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V
480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V
480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V
480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V
480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V
480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V
480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V
480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V
480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V
480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V
480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V
Specifications
Touch Screen :
With resistive touch
Dimensions :
105.5mm x 67.2mm x 4.2mm
Payment Terms :
T/T,L/C,Credit card,Cash
Supply Ability :
5000000000 pieces/year
Product Name :
4.3 Inch LCD Display 40 Pin Touch Screen 480x272 TFT LCD Module
Operating Temperature :
-20°C to 70°C
Interface :
40Pin, 24 BIT RGB
Model Number :
KWH043ST43-F02
Controller Ic :
ST7282
Display Type :
4.3Inch TFT LCD Panel
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Packaging Details :
Tray + Inner Box + Carton
Supply Voltage :
3.3V
Viewing Angle :
6 O'Clock
Display Size :
4.3 inch
Color :
Color
Brand Name :
Formike
Resolution :
480 * 272
Place of Origin :
China
MOQ :
1 piece
Description

4.3 Inch LCD Display 40 Pin Touch Screen 480x272 TFT LCD Module

480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V

Product Name4.3 Inch LCD Display 40 Pin Touch Screen 480x272 TFT LCD Module
LCD Size4.3 Inch TFT LCD Display Module
Display ModeTransmissive
Resolution480x272
Outline Dimension (mm)105.50x67.20x4.20
Active Area (mm)95.04x53.86
Dot pitch (mm)0.198x0.198
Viewing Direction6 O'clock
InterfaceRGB Interface, 40 Pin
Driver ICST7282
Color Depth16M
Brightness (Cd/m2)270
Contrast Ratio500:1
Backlight7 White LED

Backlight Supply
(Current/Voltage)

20mA 22.2V
Touch ScreenWith Resistive Touch Panel

* KWH043ST43-F02 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.

* It is 480x272 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
