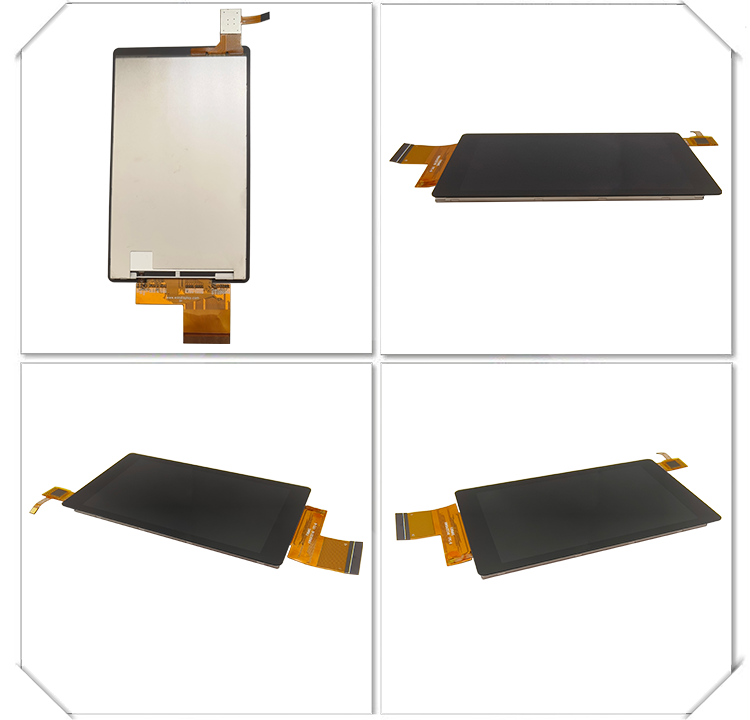

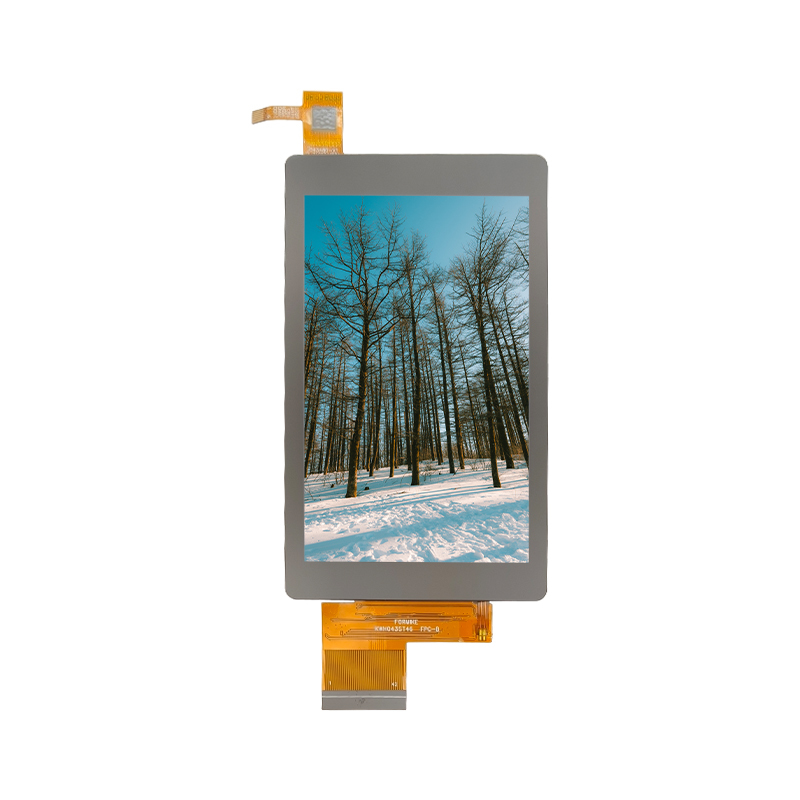

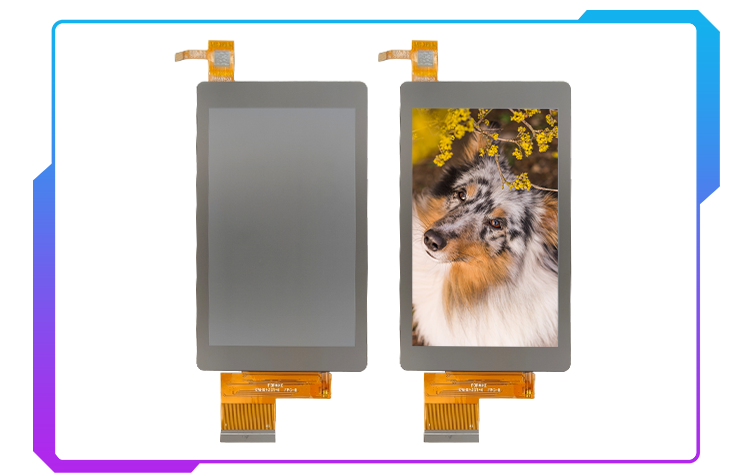

4.3 Touch 480x800 4.3 Inch Ili9341 TFT Touch Panel LCD Display 42 Pin
4.3 Touch 480x800 4.3 Inch Ili9341 TFT Touch Panel LCD Display 42 Pin
4.3 Touch 480x800 4.3 Inch Ili9341 TFT Touch Panel LCD Display 42 Pin
4.3 Touch 480x800 4.3 Inch Ili9341 TFT Touch Panel LCD Display 42 Pin
4.3 Touch 480x800 4.3 Inch Ili9341 TFT Touch Panel LCD Display 42 Pin
4.3 Touch 480x800 4.3 Inch Ili9341 TFT Touch Panel LCD Display 42 Pin
4.3 Touch 480x800 4.3 Inch Ili9341 TFT Touch Panel LCD Display 42 Pin
4.3 Touch 480x800 4.3 Inch Ili9341 TFT Touch Panel LCD Display 42 Pin
4.3 Touch 480x800 4.3 Inch Ili9341 TFT Touch Panel LCD Display 42 Pin
4.3 Touch 480x800 4.3 Inch Ili9341 TFT Touch Panel LCD Display 42 Pin
4.3 Touch 480x800 4.3 Inch Ili9341 TFT Touch Panel LCD Display 42 Pin
4.3 Touch 480x800 4.3 Inch Ili9341 TFT Touch Panel LCD Display 42 Pin
4.3 Touch 480x800 4.3 Inch Ili9341 TFT Touch Panel LCD Display 42 Pin
4.3 Touch 480x800 4.3 Inch Ili9341 TFT Touch Panel LCD Display 42 Pin
Specifications
Interface :
42 Pin, 24 BIT RGB
Viewing Angle :
All
Display Type :
4.3Inch TFT LCD Screen
Brand Name :
Formike
MOQ :
1 piece
Color :
Color
Dimensions :
66.0mm x 114.0mm x 3.66mm
Product Name :
4.3 Touch 480x800 Display 4.3 Inch TFT LCD Panel With 42 Pin RGB Interface
Operating Temperature :
-20°C to 70°C
Place of Origin :
China
Model Number :
KWH043ST48-C01
Packaging Details :
Tray + Inner Box + Carton
Contrast Ratio :
1500:1
Display Size :
4.3 inch
Controller Ic :
ILI9806E
Resolution :
480 x 800
Payment Terms :
T/T, L/C, Credit card, Cash
Touch Screen :
With capacitive touch panel
Supply Ability :
5000000000 pieces/year
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Description

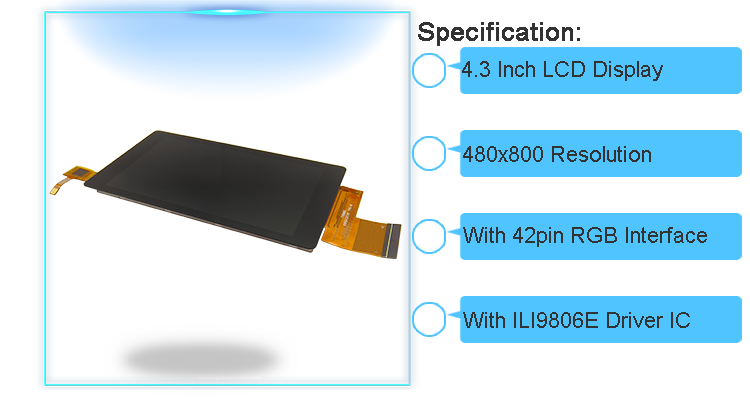

4.3 Touch 480x800 Display 4.3 Inch TFT LCD Panel With 42 Pin RGB Interface

4.3 Touch 480x800 4.3 Inch Ili9341 TFT Touch Panel LCD Display 42 Pin

Product Name 4.3 Touch 480x800 Display 4.3 Inch TFT LCD Panel With 42 Pin RGB Interface
LCD Size 4.3 Inch IPS TFT LCD Display Module
Display Mode IPS
Resolution 480x800
Outline Dimension (mm) 66.00x114.00x3.66
Active Area (mm) 56.16x93.60
Dot pitch (mm) 0.117x0.117
Viewing Direction All
Interface 24 BIT RGB Interface, 42 Pin
Driver IC ILI9806E
Brightness (Cd/m2) 300
Contrast Ratio 1500:1
Backlight 8 White LED

Backlight Supply

(Current/Voltage)

 40mA 12.8V
Touch Screen With Capacitive Touch Panel

* KWH043ST48-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 480x800 resolution IPS TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
