Specifications
Interface :
30 Pin, LVDS
MOQ :
1 piece
Product Name :
30Pin TFT 7 Inch 1024X600 Capacitive Touch Screen LVDS Display Panel IPS LCD
Dimensions :
168.15mm x 99.25mm x 4.60mm
Touch Screen :
With capacitive touch screen
Resolution :
1024x600
Operating Temperature :
-10°C to 50°C
Payment Terms :
T/T,L/C,Credit card,Cash
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Viewing Angle :
All
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Display Type :
7Inch IPS TFT LCD Panel
Supply Voltage :
3.3V
Brand Name :
Formike
Place of Origin :
China
Color :
Color
Model Number :
KWH070KQ40-C09
Supply Ability :
5000000000 pieces/year
Display Size :
7"
Description

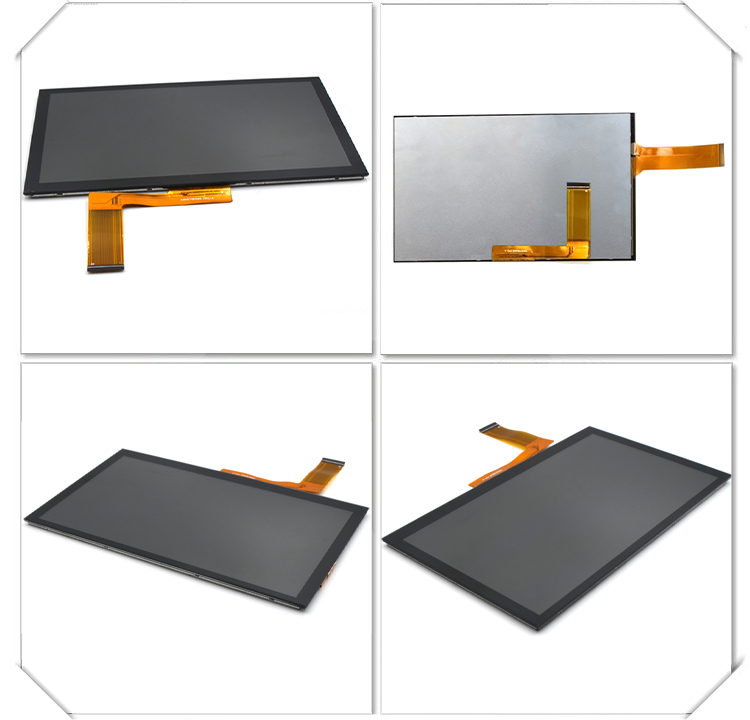

30Pin TFT 7 Inch 1024X600 Capacitive Touch Screen LVDS Display Panel IPS LCD

7 Inch Multi Information LVDS Display Panel IPS LCD TFT Touch Screen 1024X600 30Pin

Product Name 30Pin TFT 7 Inch 1024X600 Capacitive Touch Screen LVDS Display Panel IPS LCD
LCD Size 7 Inch TFT LCD Display Module
Display Mode IPS
Resolution 1024x600
Outline Dimension (mm) 168.15x99.25x4.60
Active Area (mm) 154.21x85.92
Dot pitch (mm) 0.1506x0.1432
Viewing Direction All
Interface LVDS Interface, 30 Pin
Driver IC EK79001HB & EK73215BCGA
Brightness (Cd/m2) 350
Contrast Ratio 800:1
Backlight 27 White LED

Backlight Supply

(Current/Voltage)

 180mA 9.6V
Touch Screen With Capacitive Touch Screen Panel

* KWH070KQ40-C09 is a IPS type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 1024x600 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
