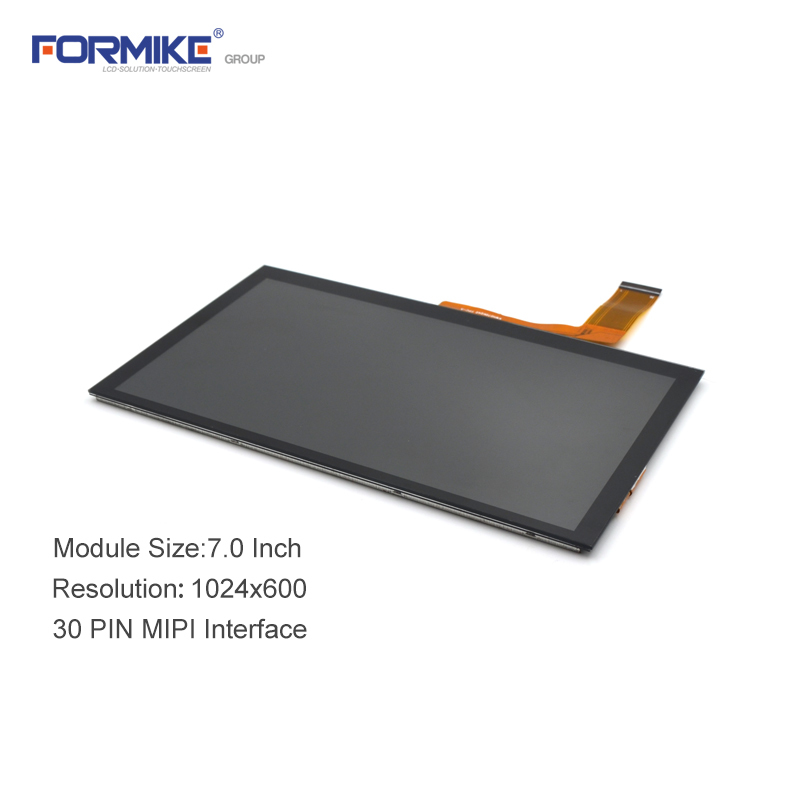

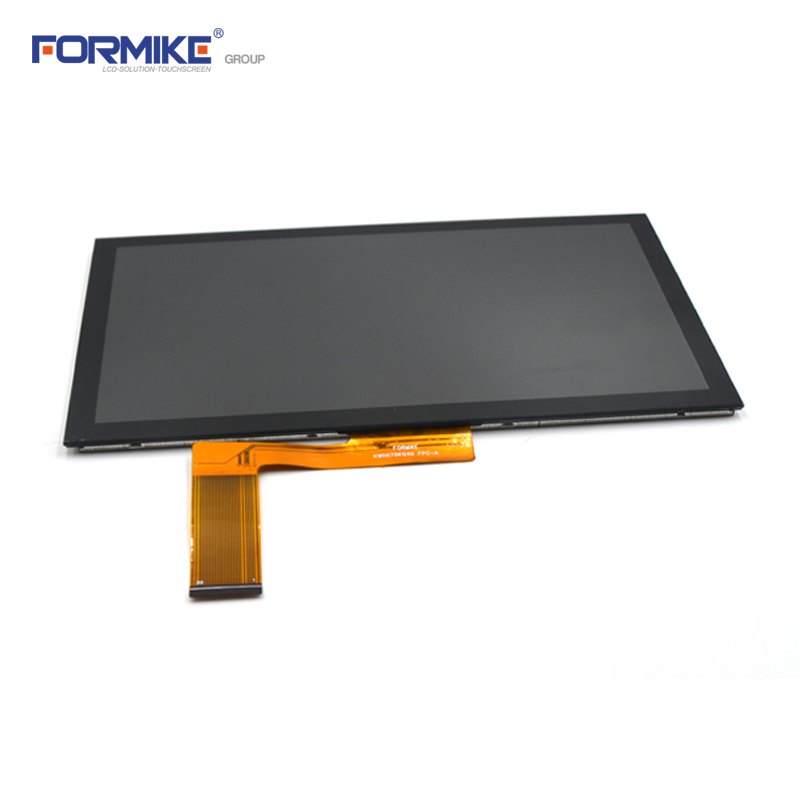

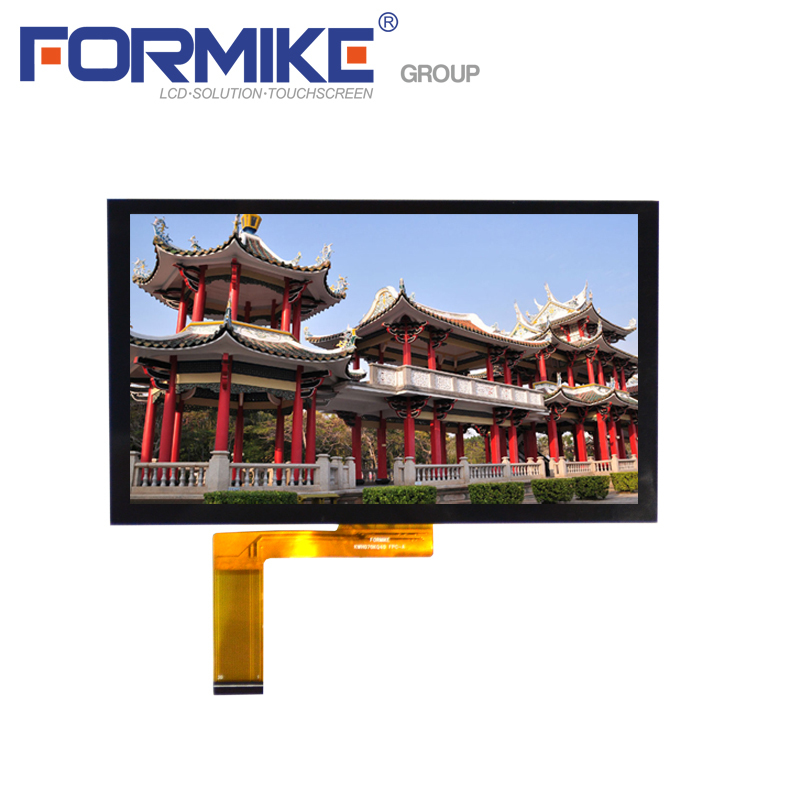

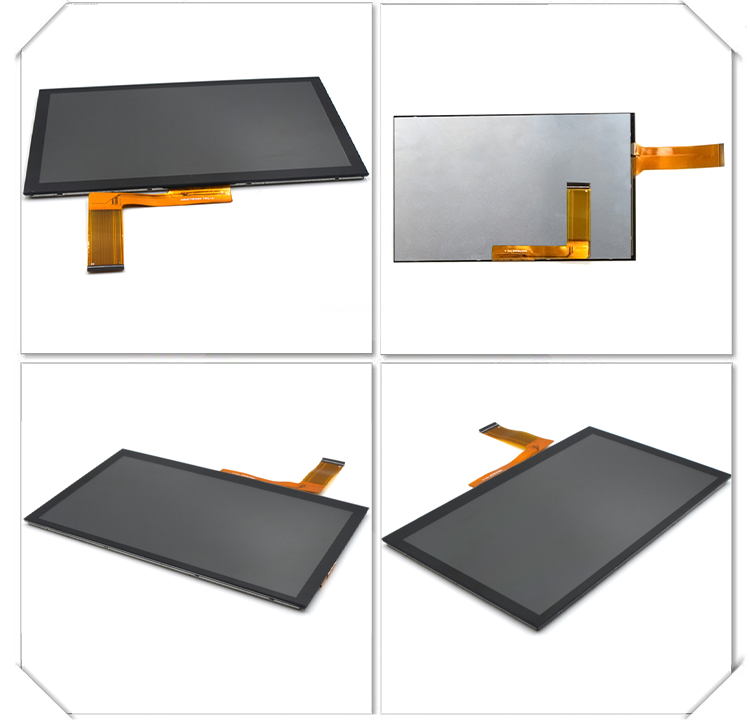

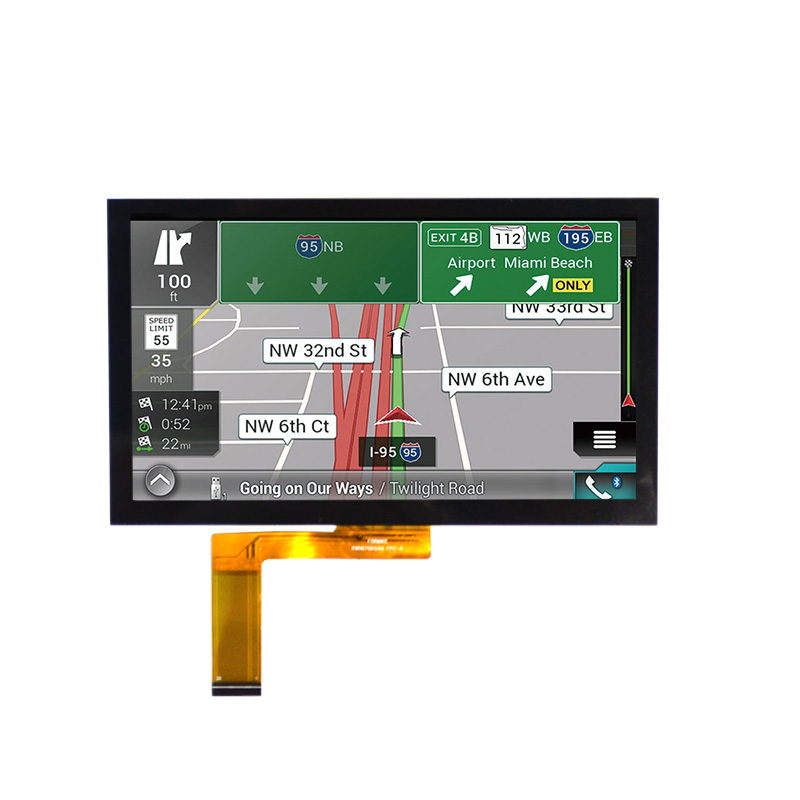

Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
Specifications
Touch Screen :
With capacitive touch
Interface :
30 Pin, MIPI
Color :
Color
Display Type :
7Inch IPS TFT LCD Display
Product Name :
LCD Display 7 Inch 1024x600 IPS TFT Touch MIPI Screen
Brand Name :
Formike
Payment Terms :
T/T,L/C,Credit card,Cash
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Display Size :
7"
MOQ :
1 piece
Operating Temperature :
-20°C to 70°C
Supply Ability :
5000000000 pieces/year
Viewing Angle :
All
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Supply Voltage :
3.3V
Dimensions :
168.15mm x 99.25mm x 4.60mm
Model Number :
KWH070KQ40-C08
Resolution :
1024*600
Place of Origin :
China
Description

LCD Display 7 Inch 1024x600 IPS TFT Touch MIPI Screen

Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen

Product Name LCD Display 7 Inch 1024x600 IPS TFT Touch MIPI Screen
LCD Size 7 Inch TFT LCD Display Module
Display Mode IPS
Resolution 1024x600

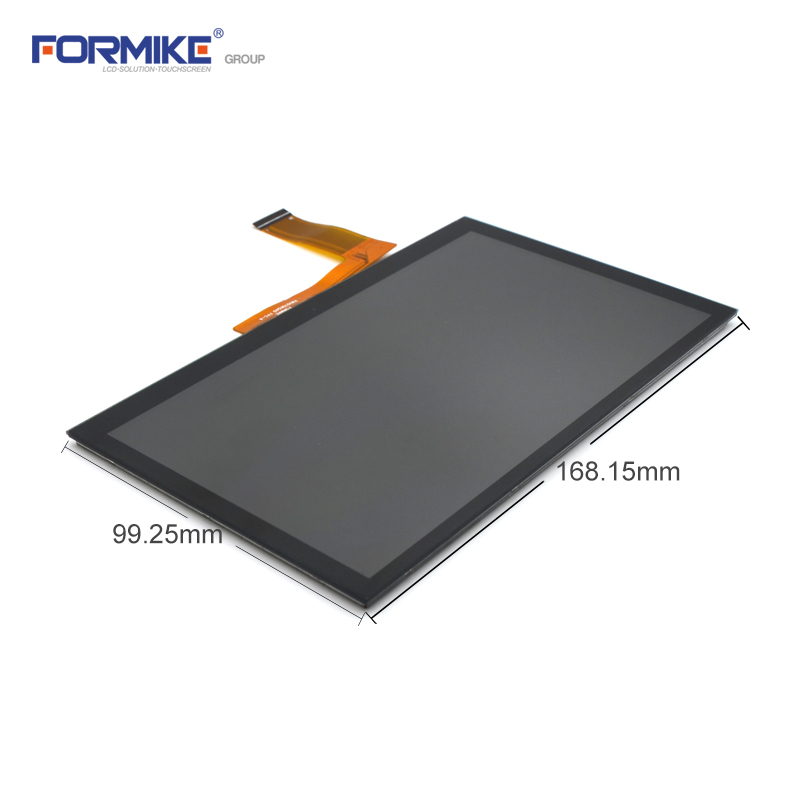

Outline Dimension (mm) 168.15x99.25x4.60
Active Area (mm) 154.21x85.92
Dot pitch (mm) 0.1506x0.1432
Viewing Direction All
Interface MIPI Interface, 30 Pin
Driver IC EK79007AD & EK73215B
Brightness (Cd/m2) 350
Contrast Ratio 800:1
Backlight 27 White LED

Backlight Supply

(Current/Voltage)

 180mA 9.9V
Touch Screen With Capacitive Touch Screen Panel

* KWH070KQ40-C08 is a IPS type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD Display, driver IC, FPC, backlight, Capacitive Touch Panel.

* It is 1024x600 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel ScreenCapacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
