Specifications
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Dimensions :
164.9mm X 100.0mm X 4.9mm
Brand Name :
Formike
Product Name :
7Inch TFT LCD Screen Module 7.0 40 Pin TFT Display 800X480 With Touchscreen
Touch Screen :
With resistive touch screen
Model Number :
KWH070ZX44-F02
Supply Voltage :
3.3V
Payment Terms :
T/T,L/C,Credit card,Cash
Color :
Color
Viewing Angle :
6 O'Clock
Supply Ability :
5000000000 pieces/year
Interface :
40 Pin, 24 BIT RGB
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Operating Temperature :
-20°C to 70°C
Display Type :
7 Inch TFT LCD Display
Place of Origin :
China
Resolution :
800 x 480
MOQ :
1 piece
Display Size :
7 inch
Description

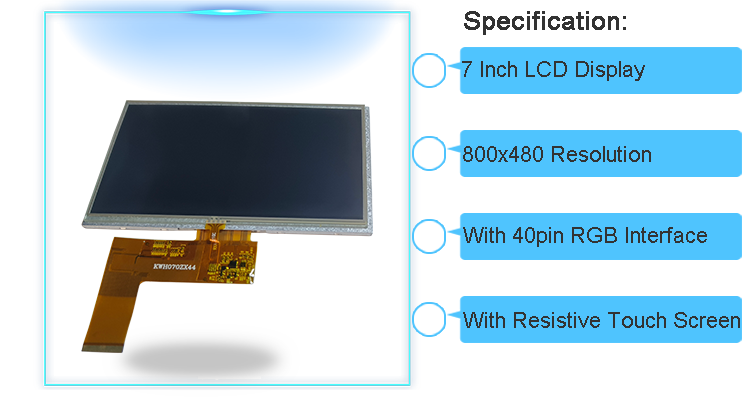

7Inch TFT LCD Screen Module 7.0 40 Pin TFT Display 800X480 With Touchscreen

7Inch LVDS Wuxga TFT LCD Screen Panel Module 40 Pin 800X480 Touchscreen

Product Name 7Inch TFT LCD Screen Module 7.0 40 Pin TFT Display 800X480 With Touchscreen
LCD Size 7 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 800x480
Outline Dimension (mm) 164.90x100.00x4.90
Active Area (mm) 154.08x85.92
Dot pitch (mm) 0.1926x0.1790
Viewing Direction 6 O'clock
Interface RGB Interface, 40 Pin
Color Depth 16.7M
Brightness (Cd/m2) 450
Contrast Ratio 500:1
Backlight 21 White LED

Backlight Supply

(Current/Voltage)

 60mA 21.4V
Touch Screen With Resistive Touch Screen

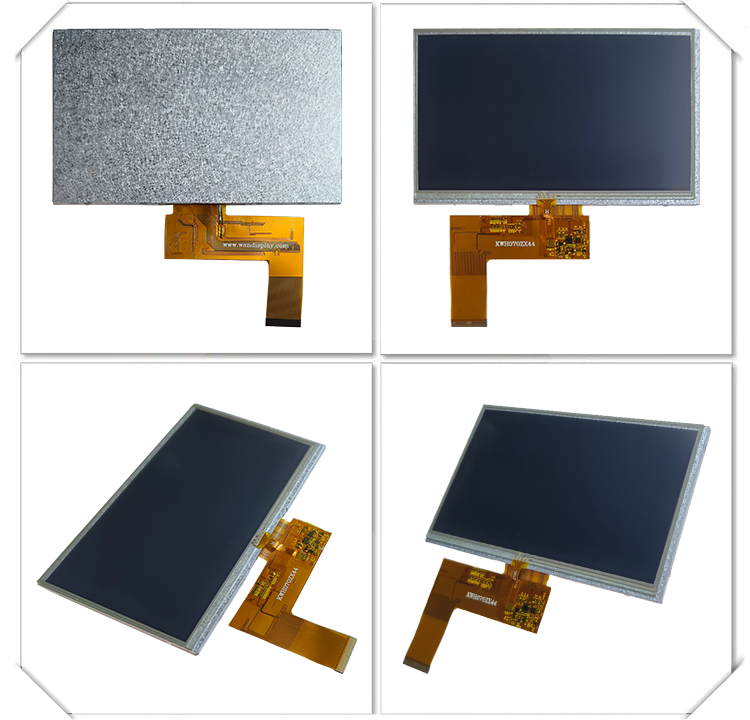

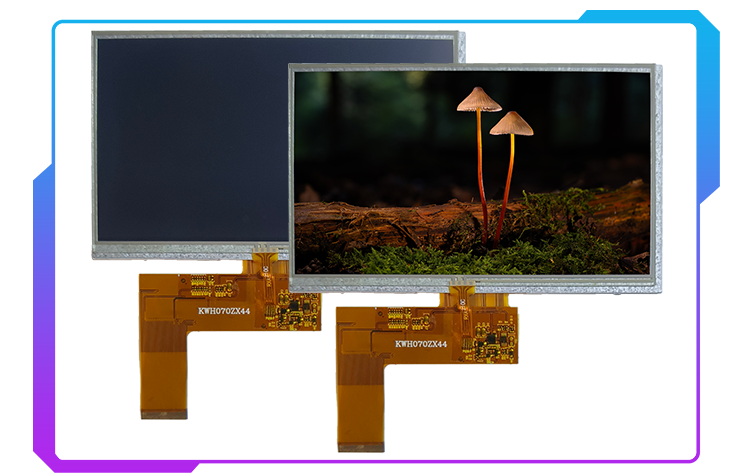

* KWH070ZX44-F02 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

7Inch LVDS Wuxga TFT LCD Screen Panel Module 40 Pin 800X480 Touchscreen7Inch LVDS Wuxga TFT LCD Screen Panel Module 40 Pin 800X480 Touchscreen
