Specifications
Interface :
30 Pin, MIPI
Product Name :
1024X600 LCD MIPI IPS 7 Inch TFT Display With 30 Pin FPC
Color :
Color
Payment Terms :
T/T,L/C,Credit card,Cash
Operating Temperature :
-20°C to 70°C
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Resolution :
1024 * 600
Display Type :
7 Inch IPS TFT LCD Screen
MOQ :
1 piece

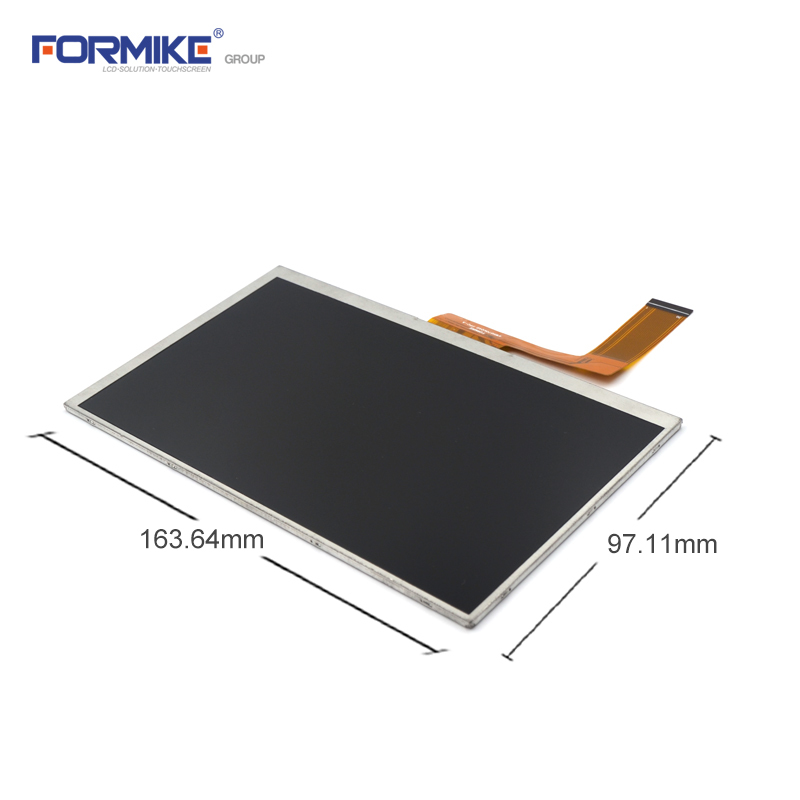

Dimensions :
163.64mm x 97.11mm x 2.60mm
Brand Name :
Formike
Model Number :
KWH070KQ40-F07
Touch Screen :
Without (Optional with touch panel)
Display Size :
7inch
Supply Voltage :
3.3V
Supply Ability :
5000000000 pieces/year
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Viewing Angle :
All
Place of Origin :
China
Description

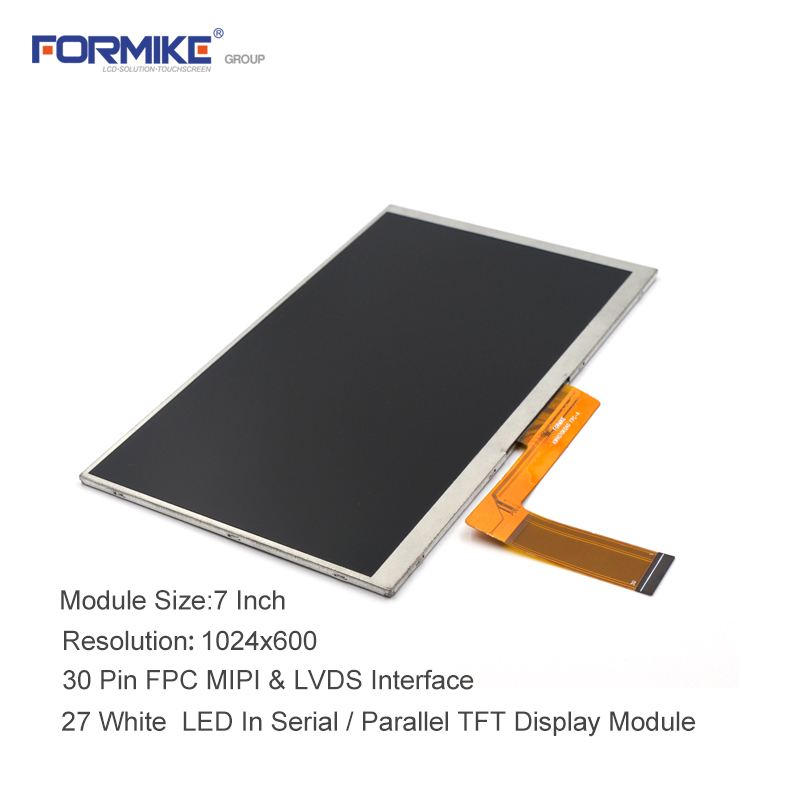

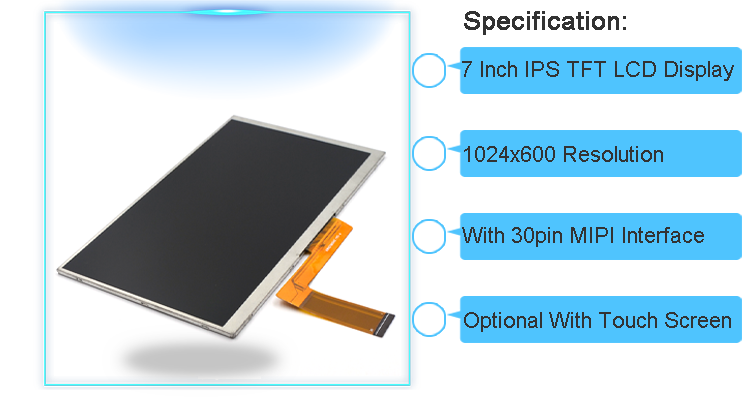

1024X600 LCD MIPI IPS 7 Inch TFT Display With 30 Pin FPC

LCD MIPI IPS TFT 7 Inch Display 30 Pin FPC 1024X600 For Tablet ODM

Product Name 1024X600 LCD MIPI IPS 7 Inch TFT Display With 30 Pin FPC
LCD Size 7 Inch TFT LCD Display Module
Display Mode IPS
Resolution 1024x600
Outline Dimension (mm) 163.64x97.11x2.60
Active Area (mm) 154.21x85.92
Dot pitch (mm) 0.1506x0.1432
Viewing Direction All
Interface 30 Pin, Optional between MIPI Interface and LVDS Interface
Driver IC EK79007AD & EK73215B
Brightness (Cd/m2) 400
Contrast Ratio 800:1
Backlight 27 White LED

Backlight Supply

(Current/Voltage)

 180mA 9.9V
Touch Screen Without (Optional With)

* KWH070KQ40-F07 is a IPS type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD Display, driver IC, FPC, backlight.

* It is 1024x600 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
