40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
Specifications
Payment Terms :
T/T,L/C,Credit card,Cash
Dimensions :
179.40mm x 117.40mm x 5.07mm
Product Name :
40 Pin LCD TFT 7 Inch 800X480 Screen TFT LCD Module Touch Panel
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Display Size :
7-inch
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Operating Temperature :
-20°C to 70°C
Brand Name :
Formike
Color :
Color
Resolution :
800x480
Supply Ability :
5000000000 pieces/year
Viewing Angle :
6 O'Clock
Interface :
40 Pin, 24 BIT RGB
Touch Screen :
With capacitive touch panel
Place of Origin :
China
Display Type :
7 Inch TFT LCD Panel
Model Number :
KWH070ZX44-C01
MOQ :
1 piece
Supply Voltage :
3.3V
Description

40 Pin LCD TFT 7 Inch 800X480 Screen TFT LCD Module Touch Panel

40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel

Product Name 40 Pin LCD TFT 7 Inch 800X480 Screen TFT LCD Module Touch Panel
LCD Size 7 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 800x480
Outline Dimension (mm) 179.40x117.40x5.07
Active Area (mm) 154.08x85.92
Dot pitch (mm) 0.1926x0.1790
Viewing Direction 6 O'clock
Interface 24 BIT RGB Interface, 40 Pin
Color Depth 16.7M
Brightness (Cd/m2) 450
Contrast Ratio 500:1
Backlight 21 White LED

Backlight Supply

(Current/Voltage)

 60mA 21.4V
Touch Screen With Capacitive Touch Panel

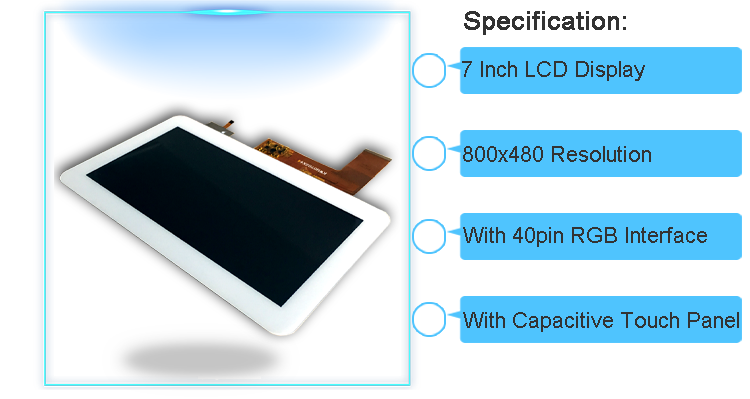

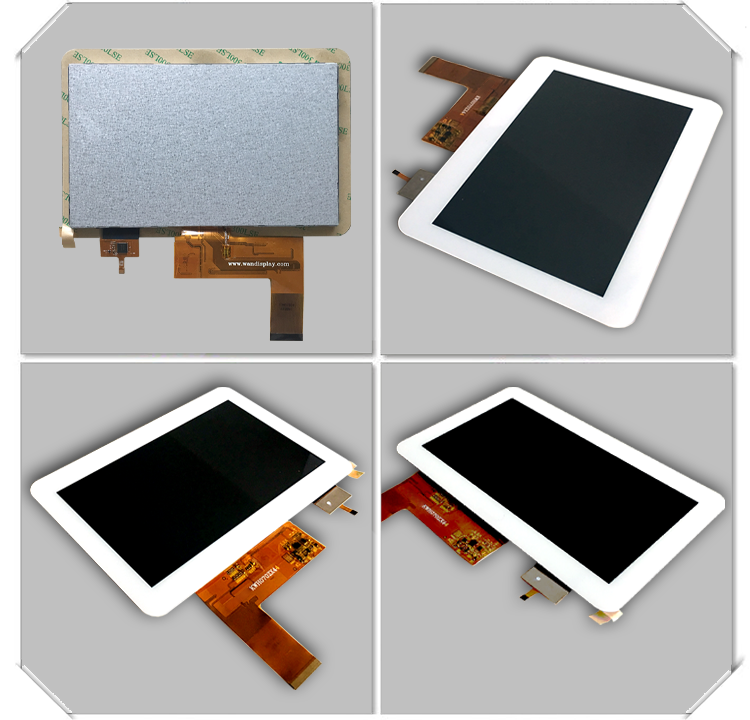

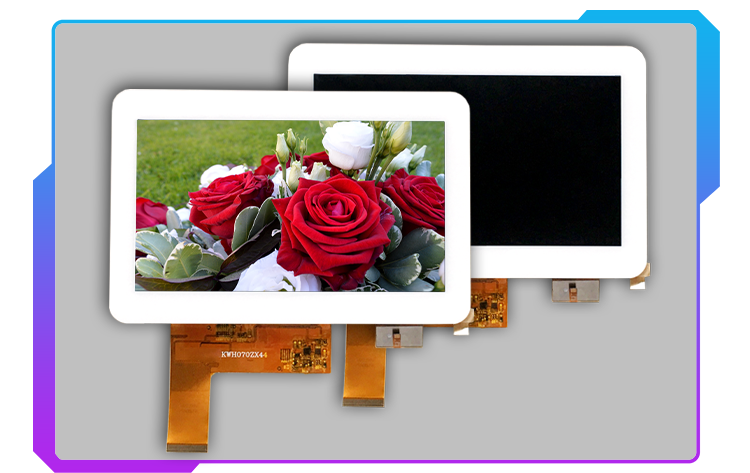

* KWH070ZX44-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
