Specifications
Place of Origin :
China
Dimensions :
164.9mm X 100.0mm X 3.5mm
Model Number :
KWH070ZX44-F01
Product Name :
RGB LCD Panel 7 Inch 800X480 TFT Module
Display Size :
7inch
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Operating Temperature :
-20°C to 70°C
Color :
Color
Resolution :
800 * 480
Brand Name :
Formike
Supply Ability :
5000000000 pieces/year
Interface :
40Pin, 24 BIT RGB
Touch Screen :
Without (Optional with touch screen)
Payment Terms :
T/T,L/C,Credit card,Cash
MOQ :
1 piece
Display Type :
7 Inch TFT LCD Screen
Viewing Angle :
6 O'Clock
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Supply Voltage :
3.3V
Description

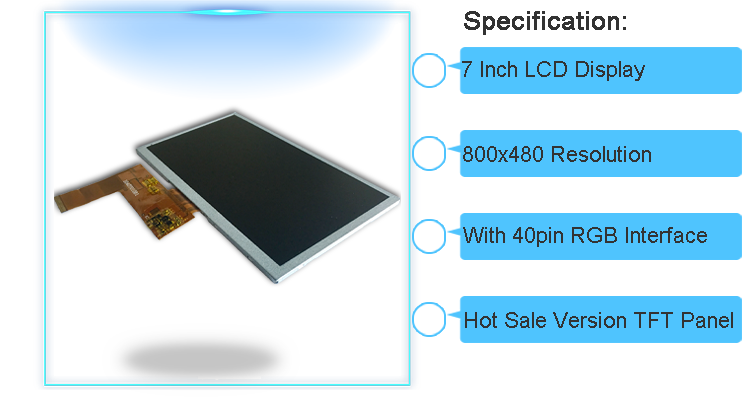

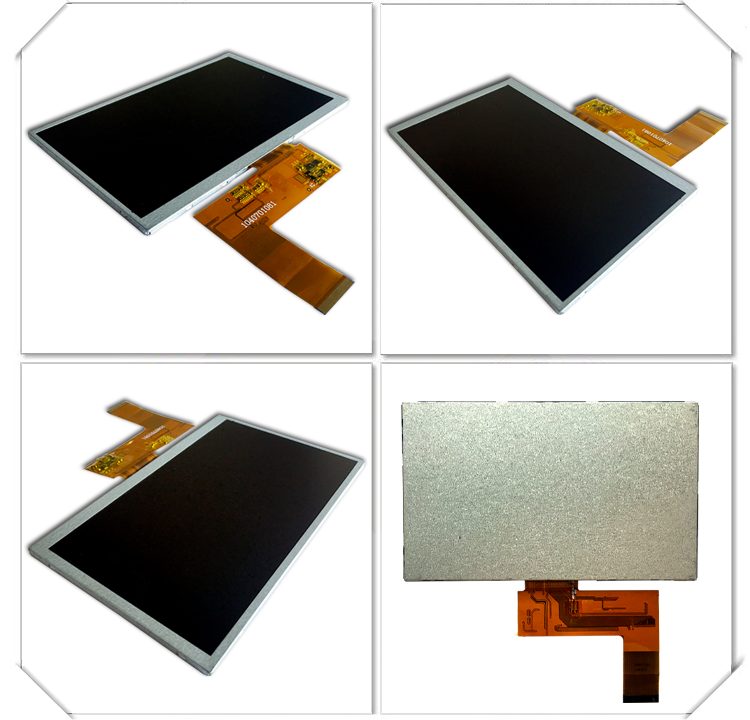

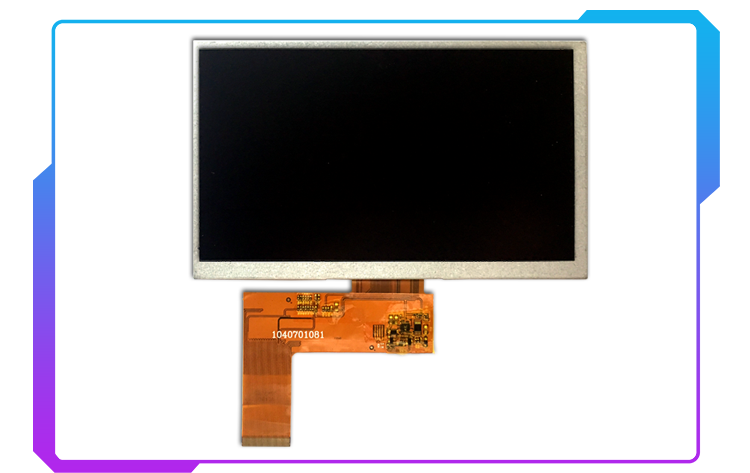

RGB LCD Panel 7 Inch 800X480 TFT Module

60mA 21.4V RGB Wuxga 7 Inch Display TFT LCD Panel Module 800X480

Product Name RGB LCD Panel 7 Inch 800X480 TFT Module
LCD Size 7 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 800x480
Outline Dimension (mm) 164.90x100.00x3.50
Active Area (mm) 154.08x85.92
Dot pitch (mm) 0.1926x0.1790
Viewing Direction 6 O'clock
Interface RGB Interface, 40 Pin
Color Depth 16.7M
Brightness (Cd/m2) 500
Contrast Ratio 500:1
Backlight 21 White LED

Backlight Supply

(Current/Voltage)

 60mA 21.4V
Touch Screen Without

* KWH070ZX44-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

60mA 21.4V RGB Wuxga 7 Inch Display TFT LCD Panel Module 800X48060mA 21.4V RGB Wuxga 7 Inch Display TFT LCD Panel Module 800X480
