7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness
7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness
7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness
7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness
7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness
7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness
7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness
7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness
7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness
7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness
7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness
7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness
7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness
7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness
Specifications
Viewing Angle :
12 O'Clock
Supply Voltage :
3.3V
Product Name :
7 Inch 50 Pin LCD Display 800x480 Screen High Brightness LCD Panel
Operating Temperature :
-20°C to 70°C
Brand Name :
Formike
Payment Terms :
T/T,L/C,Credit card,Cash
Supply Ability :
5000000000 pieces/year
Touch Screen :
Without (Optional with touch panel)
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Resolution :
800x480
Display Type :
7 Inch TN TFT LCD Display
Model Number :
KWH070KQ38-F05 V.1
MOQ :
1 piece
Display Size :
7 inch
Brightness :
800cd/m2
Interface :
50 Pin, 24 BIT RGB
Dimensions :
164.9mm x 100.0mm x 5.5mm
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Color :
Color
Place of Origin :
China
Description

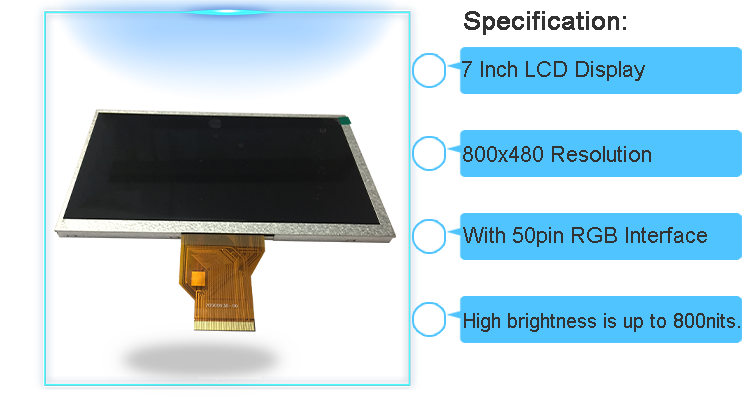

7 Inch 50 Pin LCD Display 800x480 Screen High Brightness LCD Panel

7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness

LCD Name 7 Inch 50 Pin LCD Display 800x480 Screen High Brightness LCD Panel

LCD Size

7 inch TFT LCD Display

Resolution

800*480

Color Depth

16.7M

Contrast Ratio

500:1

Outline Dimension

164.90x 100.00 x 5.5mm

Active Area(HxV mm)

154.08x85.92mm

Viewing Direction

12 O'clock

Interface

Digital, 24 BIT RGB, 50 Pin

Backlight

30 White LED

Brightness

800cd/m2

Operation Temperature

-20~70℃

Backlight Supply Current/Voltage

300mA 9.6V
  • Anti- Glare Surface Treatment & a-si TFT Display element.
  • High brightness is up to 800cd/m2.
  • It's widely used for industrial, industrial control systems, Outdoor High Brightness, outdoor digital signage, portable devices, home automation systems, gaming consoles, Portable Navigation, Video Door Phone, outdoor advertising displays, kiosks, Automotive Display and other project that need display solution.

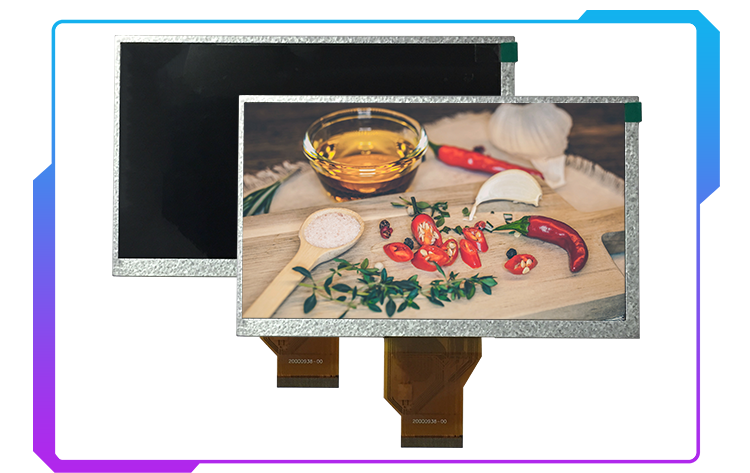

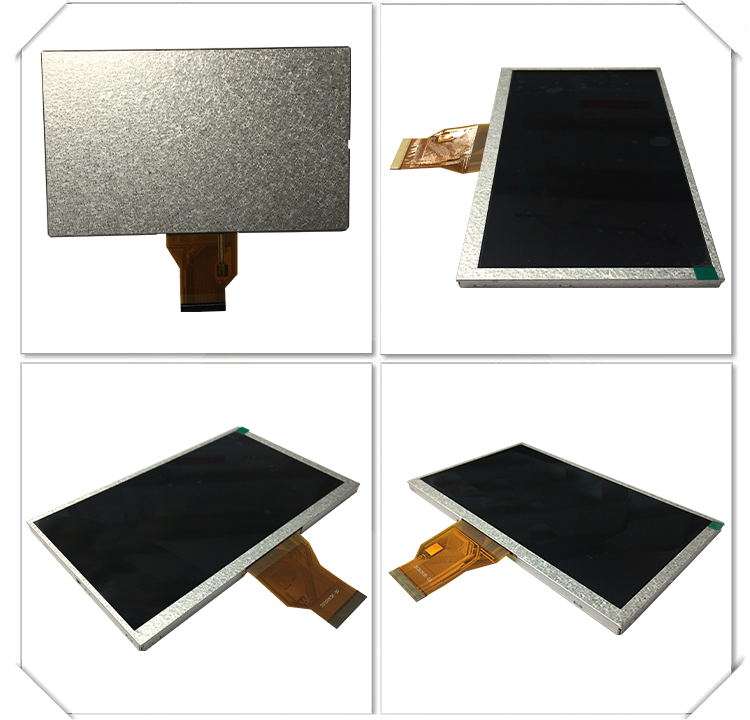

* KWH070KQ38-F05 V.1 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness7inch MIPI DSI Display Module LCD Panel 800x480 Touch Screen High Brightness
