Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen
Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen
Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen
Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen
Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen
Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen
Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen
Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen
Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen
Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen
Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen
Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen
Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen
Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen
Specifications
Interface :
50Pin, 24 BIT RGB
Product Name :
7 Inch TFT LCD Touch Screen 50 Pin Display LCD 800x480 With A-Si TFT Technology
Brand Name :
Formike
Model Number :
KWH070KQ38-F04 V.2
Display Size :
7-inch
Display Type :
7 Inch TN TFT LCD Screen
MOQ :
1 piece
Supply Ability :
5000000000 pieces/year
Resolution :
800*480
Color :
Color
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Operating Temperature :
-20°C to 70°C
Supply Voltage :
3.3V
Payment Terms :
T/T,L/C,Credit card,Cash
Viewing Angle :
12 O'Clock
Dimensions :
164.9mm X 100.0mm X 7.0mm
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Place of Origin :
China
Touch Screen :
With resistive touch screen
Description

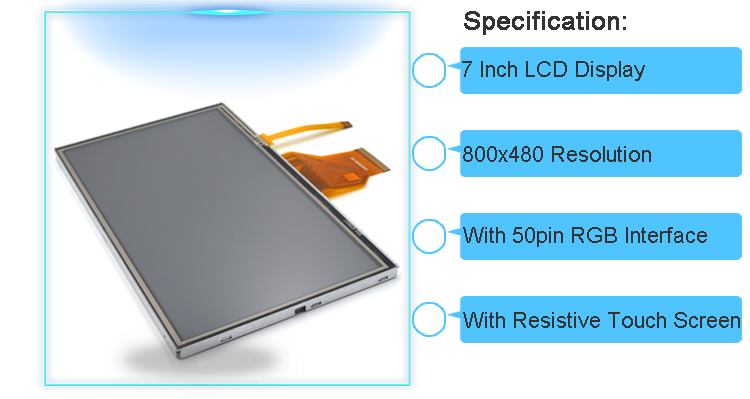

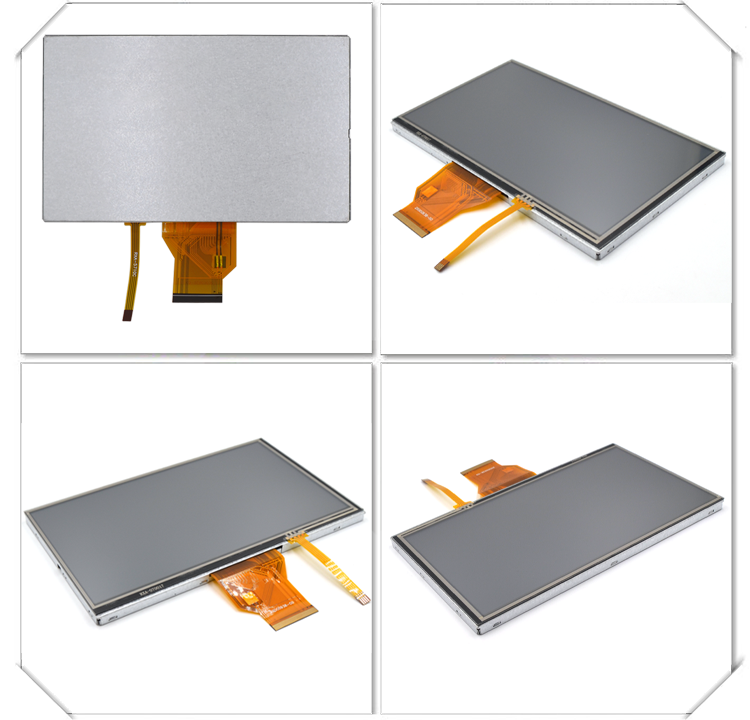

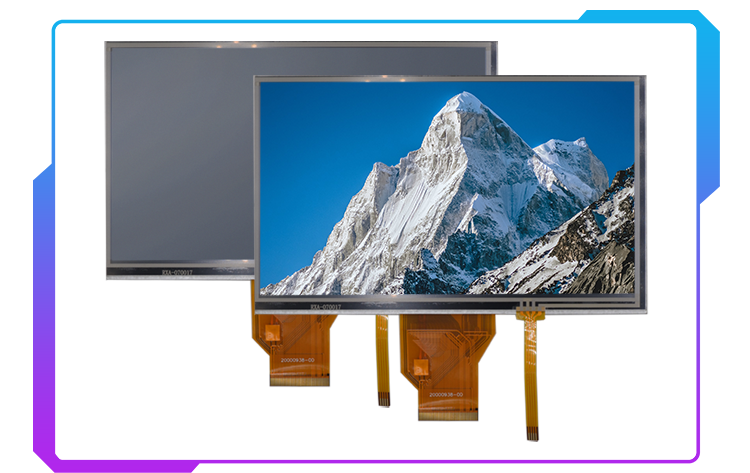

7 Inch TFT LCD Touch Screen 50 Pin Display LCD 800x480 With A-Si TFT Technology

Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen

Product Name 7 Inch TFT LCD Touch Screen 50 Pin Display LCD 800x480 With A-Si TFT Technology
LCD Size 7 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 800x480
Outline Dimension (mm) 164.90x100.00x7.00
Active Area (mm) 154.08x85.92
Dot pitch (mm) 0.0642x0.1790
Viewing Direction 12 O'clock
Interface RGB Interface, 50 Pin
Surface Treatment Anti-Glare
Display element A-si TFT
Brightness (Cd/m2) 300
Contrast Ratio 500:1
Backlight 27 White LED

Backlight Supply

(Current/Voltage)

 180mA 9.6V
Touch Screen With Resistive Touch Panel

* KWH070KQ38-F04 V.2 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch ScreenOem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen
