Specifications
Viewing Angle :
6 O'Clock
Place of Origin :
China
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Product Name :
1024X600 Display 7 Inch TFT Screen Landscape LCD Module With 50 Pin RGB Interface
Supply Voltage :
3.3V
Operating Temperature :
-20°C to 70°C
Resolution :
1024 x 600
Touch Screen :
Without (Optional with touch panel)
Payment Terms :
T/T,L/C,Credit card,Cash
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Dimensions :
164.9mm x 99.9mm x 3.5mm
Interface :
50 Pin, 24 BIT RGB
Display Size :
7 inch
Brand Name :
Formike
MOQ :
1 piece
Supply Ability :
5000000000 pieces/year
Display Type :
7 Inch TFT LCD Module
Model Number :
KWH070KQ49-F01
Color :
Color
Description

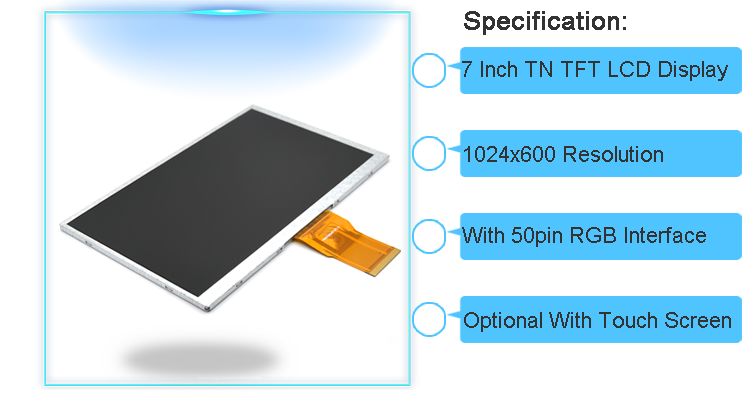

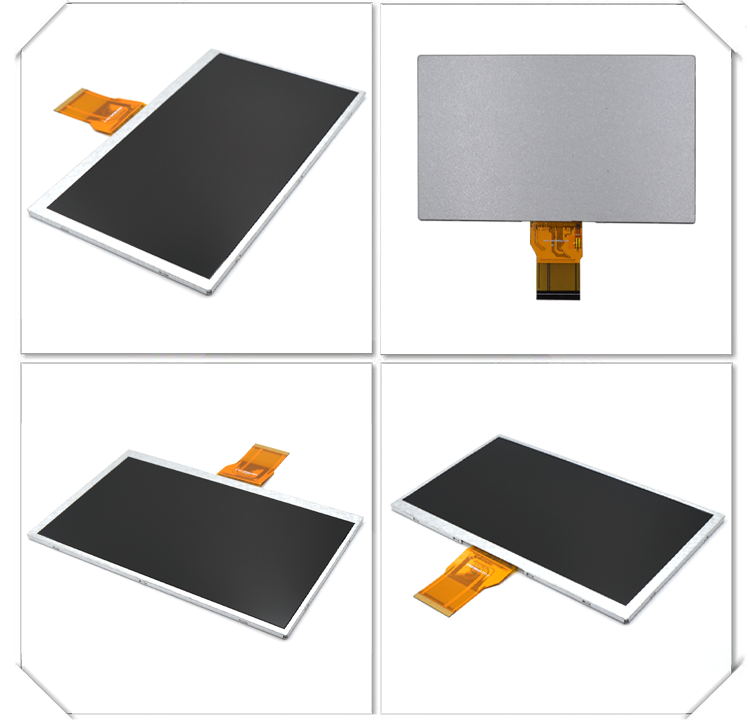

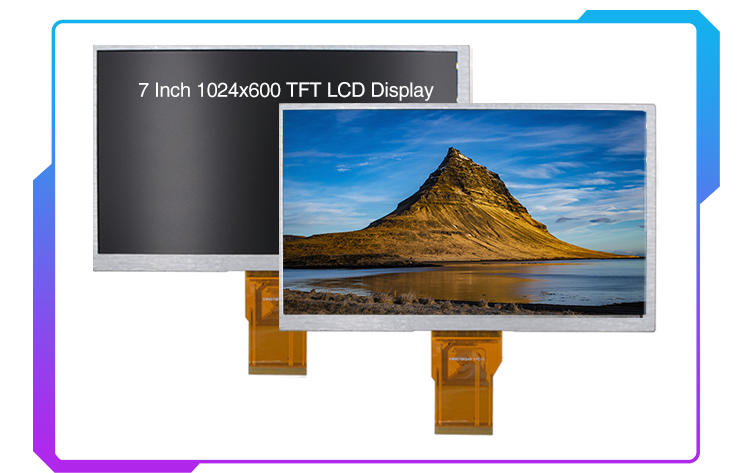

1024X600 Display 7 Inch TFT Screen Landscape LCD Module With 50 Pin RGB Interface

140mA 9.9V Landscape 7 Inch Display TFT Screen LCD Module Color TV 1024X600

Product Name 1024X600 Display 7 Inch TFT Screen Landscape LCD Module With 50 Pin RGB Interface
LCD Size 7 Inch TFT LCD Display Module
Display Mode TN TFT LCD Display
Resolution 1024x600
Outline Dimension (mm) 164.90x99.90x3.50
Active Area (mm) 154.21x85.92
Dot pitch (mm) 0.1506x0.1432
Viewing Direction 6 O'clock
Interface 50 Pin, 24-bit RGB Interface
Driver IC EK79001HE & EK73215BCGA
Brightness (Cd/m2) 350
Contrast Ratio 600:1
Backlight 21 White LED

Backlight Supply

(Current/Voltage)

 140mA 9.9V
Touch Screen Without (Optional With)

* KWH070KQ49-F01 is a TN type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD Display, driver IC, FPC, backlight.

* It is 1024x600 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

140mA 9.9V Landscape 7 Inch Display TFT Screen LCD Module Color TV 1024X600140mA 9.9V Landscape 7 Inch Display TFT Screen LCD Module Color TV 1024X600
