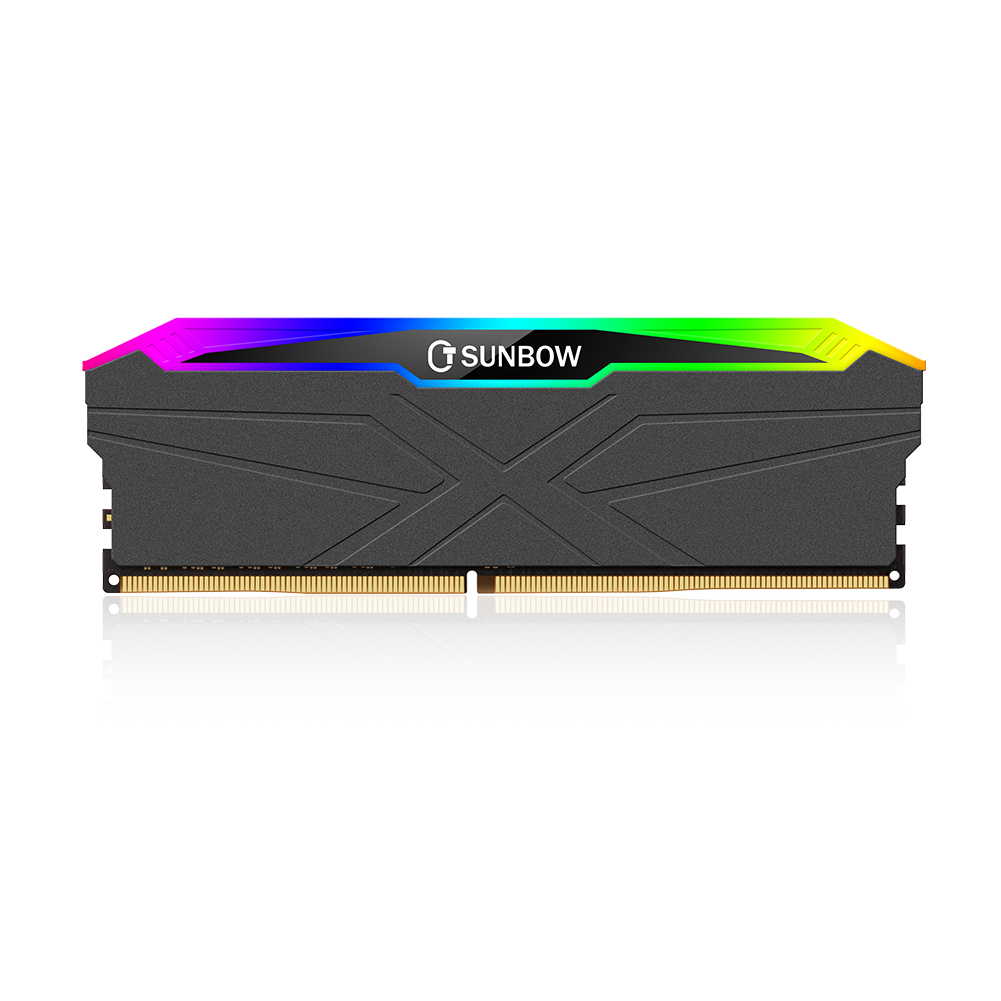

TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH54/RH44
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH54/RH44
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH54/RH44
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH54/RH44
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH54/RH44
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH54/RH44
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH54/RH44
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH54/RH44
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH54/RH44
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH54/RH44
Specifications
Model Number :
RH54/RH44
Installation Type :
Internal
Certification :
RoHS,CE,FCC,ISO
RGB Lighting :
Yes
MOQ :
1
Heat Sink :
Yes
Version :
Available in Glossy/Matte finishes
Payment Terms :
L/C,D/P,T/T
Storage Temperature Range :
-40-75℃
Delivery Time :
1-7
Color :
Black/Silver/White
Place of Origin :
China
Operating Temperature Range :
0-75℃
Form Factor :
UDIMM
Brand Name :
TCSUNBOW/TCS
Memory Type :
DDR5 / DDR4 DRAM
Description

  • The crossing lines create a stronger visual center on the heat sink, while the integrated RGB lighting adds another dimension to the design when the system is powered on.

  • The heat sink surface is available in matte or smooth mirror finishes, offering two different visual treatments of the same overall design.

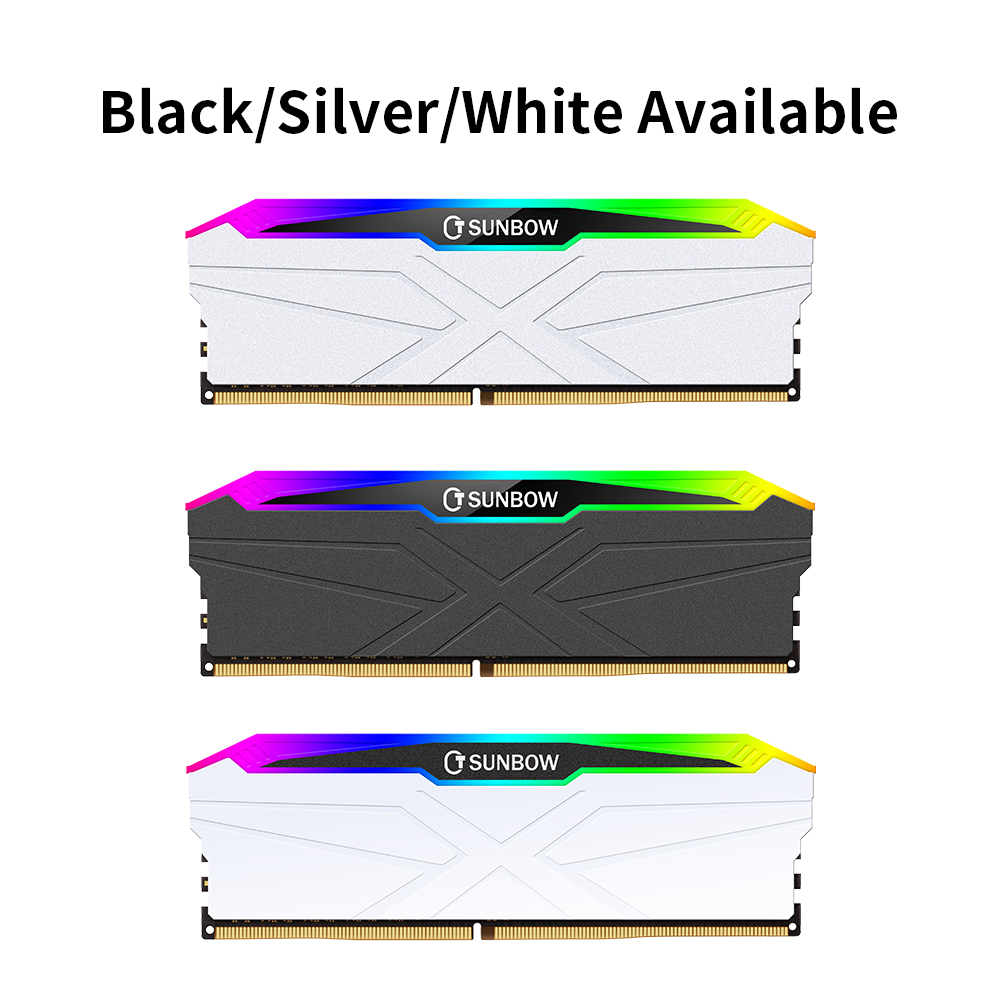

  • Choose from black, white, and silver finishes to coordinate the memory with different PC components and build themes.

  • DDR5 configurations are offered at 4800MHz, 5600MHz, 6000MHz, and 6400MHz, while DDR4 options include 2400MHz, 2666MHz, 3000MHz, 3200MHz, and 4200MHz.

  • Capacities of 8GB, 16GB, and 32GB provide flexibility for different desktop configurations, from everyday systems to higher-memory builds.

Series DDR5 RGB With Heatsink UDIMM Series(RH53 Series)
Brand TCSUNBOW
Capacity 8GB 16GB 32GB
Model Number RH53-DDR5-PC-8GB RH53-DDR5-PC-16GB RH53-DDR5-PC-32GB
EAN 6935515150589 6935515150572 6935515150565 6935515150558 6935515150534 6935515150527 6935515150510 6935515150503 6935515150473 6935515150466 6935515150459 6935515150442
Memory Speed / Frequency 4800MHZ 5600MHZ 6000MHZ 6400MHZ 4800MHz 5600MHz 6000MHZ 6400MHZ 4800MHz 5600MHz 6000MHZ 6400MHZ
Rank (1Rx8/2Rx8/8Rx4) 1Rx8 1Rx8 2Rx8 2Rx8 1Rx8 1Rx8 2Rx8 2Rx8 2Rx8 2Rx8 2Rx8 2Rx8
CAS Latency CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102 CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102 CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102
Operating Voltage 1.1v 1.1v 1.35 1.4v 1.1v 1.1v 1.35 1.4v 1.1v 1.1v 1.35 1.4v
No. of Memory IC 8/16
Power Consumption 3W
Controller IC NO
Overclock Support (YES / NO) NO
ECC (Error Correction Code) (YES/NO) NO
Net Weight (g) 55g
Gross Weight (g) 90g
Pin Count 288
OEM/ODM Support YES
Heat Sink / Heat Spreader YES
RGB lights YES
Form Factor UDIMM
Computer Memory Type (DRAM/SDRAM) DRAM
Operating Temperature 0-70℃
Storage Temperature -40~85℃
Warranty 3 Years
No. of Memory Channels (Single/Dual) (Single/Dual)
Product Dimension (W x D x H) in mm 136x45x6mm
Buffered / Un-buffered Memory Un-buffered Memory
Memory IC Brand Micron/Samsung/Sk Hynix
Note: All specifications and performance data are for reference purposes only. Actual results may vary depending on platform and system configuration. TCSUNBOW/TCS reserves the right of final interpretation.
