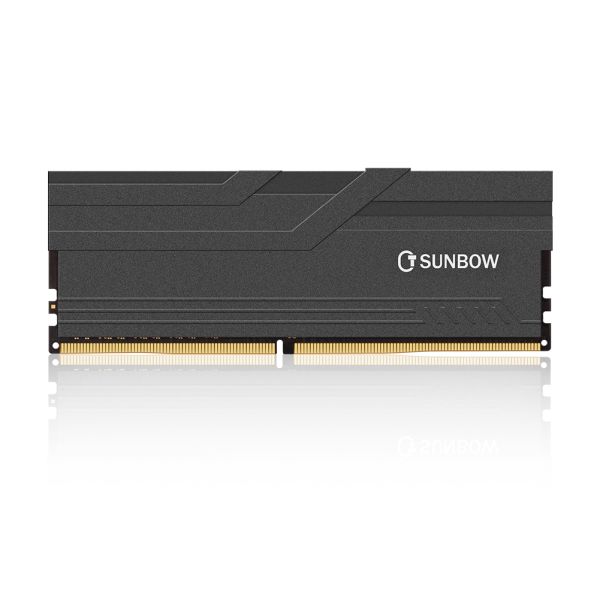

TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H51/H41
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H51/H41
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H51/H41
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H51/H41
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H51/H41
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H51/H41
Specifications
Memory Type :
DDR5 / DDR4 DRAM
Model Number :
H51/H41
Color :
Black/White
MOQ :
1
Operating Temperature Range :
0-75℃
Delivery Time :
1-7
Storage Temperature Range :
-40-75℃
Payment Terms :
L/C,D/P,T/T
Form Factor :
UDIMM
Certification :
RoHS,CE,FCC,ISO
Installation Type :
Internal
Brand Name :
TCSUNBOW/TCS
Heat Sink :
Yes
Place of Origin :
China
Description
  • Defined, parallel lines run across the heat sink surface, creating depth and visual structure rather than a plain, uniform finish. The pattern adds a distinctive design element while maintaining the functional role of the heat sink.
  • The same linear pattern is available in both white and black, keeping the design consistent across light- and dark-themed PC builds.
  • Choose DDR5 for current high-bandwidth platforms or DDR4 for previous-generation systems — the linear design carries across both.
  • DDR5 configurations cover 4800–6400MHz, with options at 4800MHz, 5600MHz, 6000MHz, and 6400MHz. DDR4 configurations range from 2400MHz to 3200MHz, including 2400MHz, 2666MHz, and 3200MHz.
  • Capacities from 4GB to 32GB. Scales from a light everyday build to a heavier multitasking or creative workload configuration.
Series DDR5 With Heatsink UDIMM Series(H51 Series)
Brand TCSUNBOW
Capacity 8GB 16GB 32GB
Model Number H51-DDR5-PC-8GB H51-DDR5-PC-16GB H51-DDR5-PC-32GB
EAN 6935515143765 6935515143758 6935515143741 6935515143734 6935515143710 6935515143703 6935515143727 6935515143697 6935515143666 6935515143659 6935515143642 6935515143635
Memory Speed / Frequency 4800MHz 5600MHz 6000MHZ 6400MHZ 4800MHz 5600MHz 6000MHZ 6400MHZ 4800MHz 5600MHz 6000MHZ 6400MHZ
Rank (1Rx8/2Rx8/8Rx4) 1Rx8 1Rx8 2Rx8 2Rx8 1Rx8 1Rx8 2Rx8 2Rx8 2Rx8 2Rx8 2Rx8 2Rx8
CAS Latency CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102 CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102 CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102
Operating Voltage 1.1v 1.1v 1.35 1.4v 1.1v 1.1v 1.35 1.4v 1.1v 1.1v 1.35 1.4v
No. of Memory IC 8/16
Power Consumption 3W
Controller IC NO
Overclock Support (YES / NO) NO
ECC (Error Correction Code) (YES/NO) NO
Net Weight (g) 50g
Gross Weight (g) 85g
Pin Count 288
OEM/ODM Support YES
Heat Sink / Heat Spreader YES
Form Factor UDIMM
Computer Memory Type (DRAM/SDRAM) DRAM
Operating Temperature 0-70℃
Storage Temperature -40~85℃
Warranty 3 Years
No. of Memory Channels (Single/Dual) (Single/Dual)

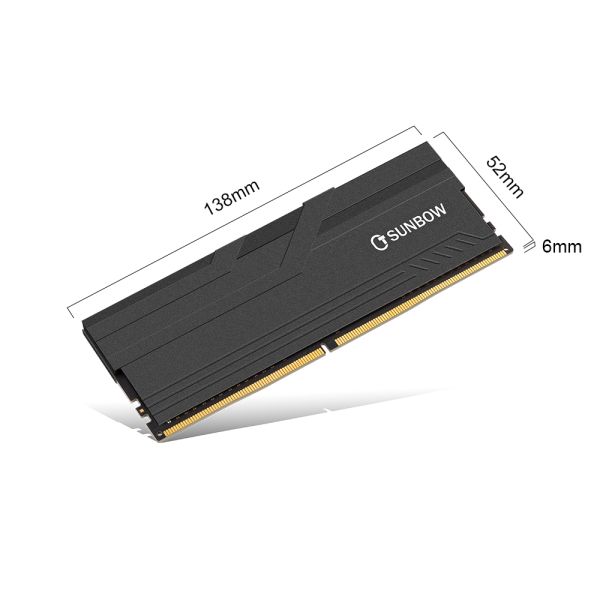

Product Dimension (W x D x H) in mm 138x53x6mm
Buffered / Un-buffered Memory Un-buffered Memory
Memory IC Brand Micron/Samsung/Sk Hynix
Note: All specifications and performance data are for reference purposes only. Actual results may vary depending on platform and system configuration. TCSUNBOW/TCS reserves the right of final interpretation.
