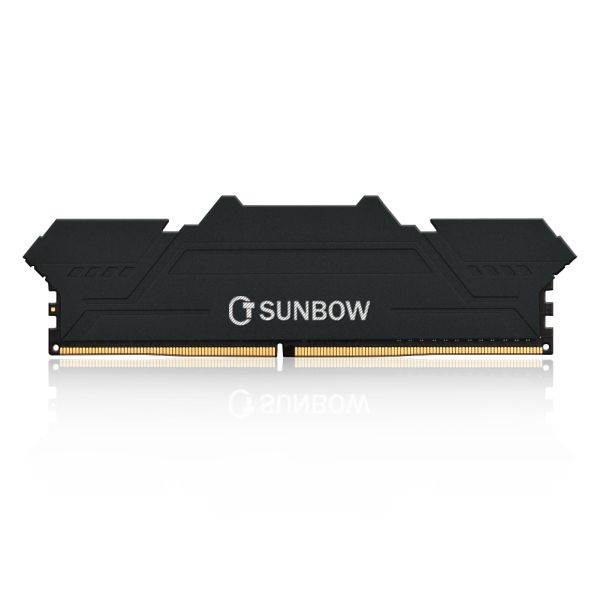

TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H50/H40
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H50/H40
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H50/H40
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H50/H40
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H50/H40
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H50/H40
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H50/H40
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H50/H40
Specifications
Model Number :
H50/H40
Form Factor :
UDIMM
Certification :
RoHS,CE,FCC,ISO
Memory Type :
DDR5 / DDR4 DRAM
MOQ :
1
Color :
Black/Silver/Orange/Red/Grey
Delivery Time :
1-7
Storage Temperature Range :
-40-75℃
Payment Terms :
L/C,D/P,T/T
Operating Temperature Range :
0-75℃
Brand Name :
TCSUNBOW/TCS
Installation Type :
Internal
Place of Origin :
China
Heat Sink :
Yes
Description
  • The H50/H40 series combines DDR4 or DDR5 memory with an integrated heat sink, helping manage heat generated during normal system operation.
  • Thermal management is particularly useful when memory operates continuously under multitasking, gaming, or other demanding desktop workloads.
  • Designed in the standard UDIMM form factor, the series is suitable for compatible desktop platforms using DDR4 or DDR5 memory.
  • DDR5 versions are available at 4800MHz, 5600MHz, 6000MHz, and 6400MHz, providing different performance levels for compatible systems.
  • For systems using DDR4, available frequencies include 2400MHz, 2666MHz, and 3200MHz, making the series suitable for a range of existing desktop platforms.
SeriesDDR5 With Heatsink UDIMM Series(H50 Series)
BrandTCSUNBOW
Model NumberH50-DDR5-PC-8GBH50-DDR5-PC-16GBH50-DDR5-PC-32GB
Capacity8GB16GB32GB
EAN693551514344469355151434376935515143420693551514341369355151434066935515143390693551514338369355151433766935515143345693551514333869355151433216935515143314
Memory Speed / Frequency4800MHz5600MHz6000MHZ6400MHZ4800MHz5600MHz6000MHZ6400MHZ4800MHz5600MHz6000MHZ6400MHZ
Rank (1Rx8/2Rx8/8Rx4)1Rx81Rx82Rx82Rx81Rx81Rx82Rx82Rx82Rx82Rx82Rx82Rx8
CAS LatencyCL40-40-40-77CL46-45-45-90CL46-48-48-96CL56-56-56-102CL40-40-40-77CL46-45-45-90CL46-48-48-96CL56-56-56-102CL40-40-40-77CL46-45-45-90CL46-48-48-96CL56-56-56-102
Operating Voltage1.1v1.1v1.351.4v1.1v1.1v1.351.4v1.1v1.1v1.351.4v
No. of Memory IC8/16
Power Consumption3W
Controller ICNO
Overclock Support (YES / NO)NO
ECC (Error Correction Code) (YES/NO)NO
Net Weight (g)40g
Gross Weight (g)75g
Pin Count288
OEM/ODM SupportYES
Heat Sink / Heat SpreaderYES
Form FactorUDIMM
Computer Memory Type (DRAM/SDRAM)DRAM
Operating Temperature0-70℃
Storage Temperature-40~85℃
Warranty3 Years
No. of Memory Channels (Single/Dual)(Single/Dual)

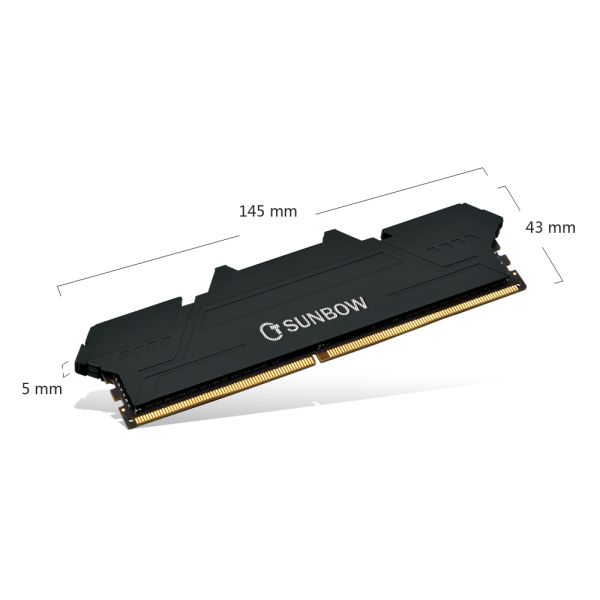

Product Dimension (W x D x H) in mm145x43x5mm
Buffered / Un-buffered MemoryUn-buffered Memory
Memory IC BrandMicron/Samsung/Sk Hynix
Note: All specifications and performance data are for reference purposes only. Actual results may vary depending on platform and system configuration. TCSUNBOW/TCS reserves the right of final interpretation.
