TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H53/H43
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H53/H43
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H53/H43
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H53/H43
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H53/H43
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H53/H43
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H53/H43
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H53/H43
Specifications
Model Number :
H53/H43
Color :
Black/White
MOQ :
1
Memory Type :
DDR5 / DDR4 DRAM
Delivery Time :
1-7
Heat Sink :
Yes
Payment Terms :
L/C,D/P,T/T
Installation Type :
Internal
Certification :
RoHS,CE,FCC,ISO
Storage Temperature Range :
-40-75℃
Brand Name :
TCSUNBOW/TCS
Form Factor :
UDIMM
Place of Origin :
China
Operating Temperature Range :
0-75℃
Description

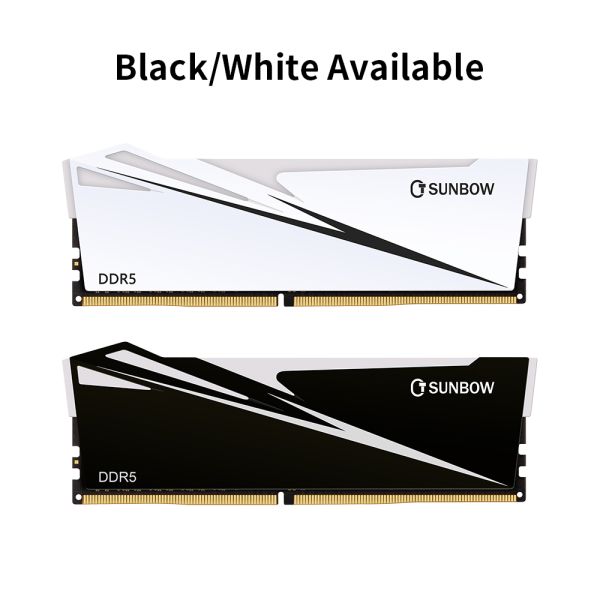

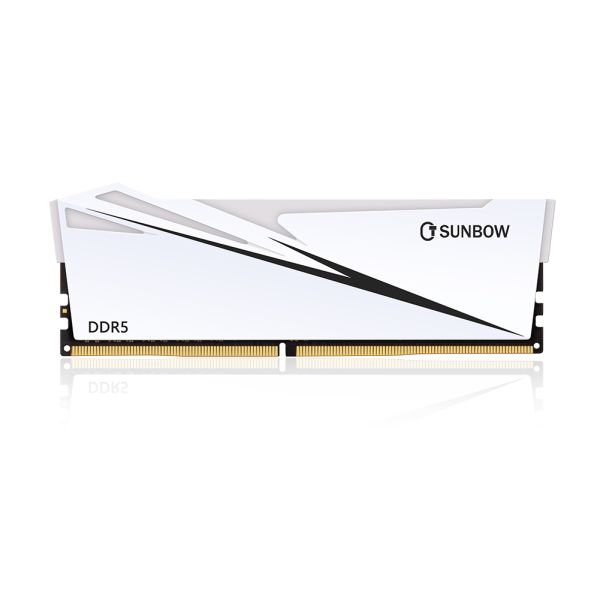

  • The heat sink's silhouette is cut into an angular, sword-like profile rather than a straight rectangular block — a distinct visual signature within TCSUNBOW's heat sink memory lineup.
  • Available in DDR5 or DDR4 — Choose DDR5 for current high-bandwidth platforms or DDR4 for previous-generation system.
  • Compatible DDR5 configurations are available at 4800MHz, 5600MHz, 6000MHz, and 6400MHz.
  • For DDR4 systems, the available options include 2400MHz, 2666MHz, and 3200MHz.
  • Capacities from 4GB to 32GB — Scales from an entry gaming build to a higher-capacity setup for heavier multitasking.
Series DDR5 With Heatsink UDIMM Series(H53 Series)
Brand TCSUNBOW
Capacity 8GB 16GB 32GB
Model Number H53-DDR5-PC-8GB H53-DDR5-PC-16GB H53-DDR5-PC-32GB
EAN 6935515150411 6935515150404 6935515150398 6935515150381 6935515150374 6935515150367 6935515150350 6935515150343 6935515150312 6935515150305 6935515150299 6935515150282
Memory Speed / Frequency 4800MHz 5600MHz 6000MHZ 6400MHZ 4800MHz 5600MHz 6000MHZ 6400MHZ 4800MHz 5600MHz 6000MHZ 6400MHZ
Rank (1Rx8/2Rx8/8Rx4) 1Rx8 1Rx8 2Rx8 2Rx8 1Rx8 1Rx8 2Rx8 2Rx8 2Rx8 2Rx8 2Rx8 2Rx8
CAS Latency CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102 CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102 CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102
Operating Voltage 1.1v 1.1v 1.35 1.4v 1.1v 1.1v 1.35 1.4v 1.1v 1.1v 1.35 1.4v
No. of Memory IC 8/16
Power Consumption 3W
Controller IC NO
Overclock Support (YES / NO) NO
ECC (Error Correction Code) (YES/NO) NO
Net Weight (g) 50g
Gross Weight (g) 85g
Pin Count 288
OEM/ODM Support YES
Heat Sink / Heat Spreader YES
Form Factor UDIMM
Computer Memory Type (DRAM/SDRAM) DRAM
Operating Temperature 0-70℃
Storage Temperature -40~85℃
Warranty 3 Years
No. of Memory Channels (Single/Dual) (Single/Dual)
Product Dimension (W x D x H) in mm 136x45x6mm
Buffered / Un-buffered Memory Un-buffered Memory
Memory IC Brand Micron/Samsung/Sk Hynix
Note: All specifications and performance data are for reference purposes only. Actual results may vary depending on platform and system configuration. TCSUNBOW/TCS reserves the right of final interpretation.
