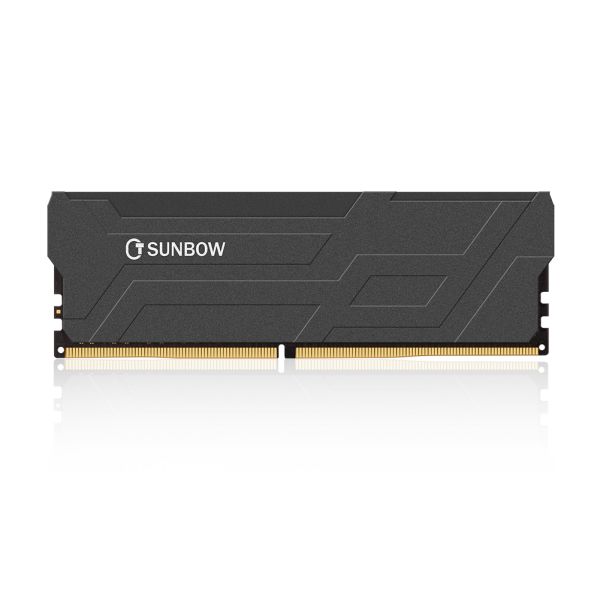

TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H52/H42
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H52/H42
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H52/H42
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H52/H42
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H52/H42
TCSUNBOW DDR5/DDR4 Memory Heat Sink Series H52/H42
Specifications
Model Number :
H52/H42
Form Factor :
UDIMM
Delivery Time :
1-7
Storage Temperature Range :
-40-75℃
Payment Terms :
L/C,D/P,T/T
Operating Temperature Range :
0-75℃
Certification :
RoHS,CE,FCC,ISO
Memory Type :
DDR5 / DDR4 DRAM
MOQ :
1
Color :
Black
Brand Name :
TCSUNBOW/TCS
Installation Type :
Internal
Place of Origin :
China
Heat Sink :
Yes
Description
  • Manages thermal buildup during extended heavy use, keeping modules within a safer operating range without relying on a larger, shaped surface area to do it.
  • Without a distinct shape or secondary color, the H52/H42 pairs easily with almost any black or dark-toned case, motherboard, or cooler — no design-matching required.
  • DDR5 configurations support frequencies of 4800MHz, 5600MHz, 6000MHz, and 6400MHz for compatible platforms. DDR4 versions are offered at 2400MHz, 2666MHz, and 3200MHz to accommodate a variety of desktop memory requirements.
  • From office applications and multitasking to gaming and content-related workloads, the series provides flexible memory configurations for desktop use.
  • Choose between DDR5 and DDR4 versions according to the memory platform of the target desktop system.
SeriesDDR5 With Heatsink UDIMM Series(H52 Series)
BrandTCSUNBOW
Capacity8GB16GB32GB
Model NumberH52-DDR5-PC-8GBH52-DDR5-PC-16GBH52-DDR5-PC-32GB
EAN693551514408369355151440766935515144069693551514405269355151440456935515144038693551514402169355151440146935515143987693551514397069355151439636935515143956
Memory Speed / Frequency4800MHz5600MHz6000MHZ6400MHZ4800MHz5600MHz6000MHZ6400MHZ4800MHz5600MHz6000MHZ6400MHZ
Rank (1Rx8/2Rx8/8Rx4)1Rx81Rx82Rx82Rx81Rx81Rx82Rx82Rx82Rx82Rx82Rx82Rx8
CAS LatencyCL40-40-40-77CL46-45-45-90CL46-48-48-96CL56-56-56-102CL40-40-40-77CL46-45-45-90CL46-48-48-96CL56-56-56-102CL40-40-40-77CL46-45-45-90CL46-48-48-96CL56-56-56-102
Operating Voltage1.1v1.1v1.351.4v1.1v1.1v1.351.4v1.1v1.1v1.351.4v
No. of Memory IC8/16
Power Consumption3W
Controller ICNO
Overclock Support (YES / NO)NO
ECC (Error Correction Code) (YES/NO)NO
Net Weight (g)50g
Gross Weight (g)85g
Pin Count288
OEM/ODM SupportYES
Heat Sink / Heat SpreaderYES
Form FactorUDIMM
Computer Memory Type (DRAM/SDRAM)DRAM
Operating Temperature0-70℃
Storage Temperature-40~85℃
Warranty3 Years
No. of Memory Channels (Single/Dual)(Single/Dual)

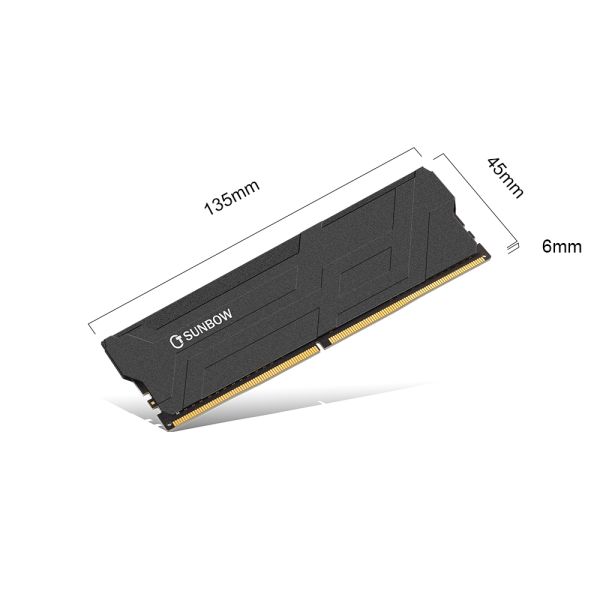

Product Dimension (W x D x H) in mm136x45x6mm
Buffered / Un-buffered MemoryUn-buffered Memory
Memory IC BrandMicron/Samsung/Sk Hynix
Note: All specifications and performance data are for reference purposes only. Actual results may vary depending on platform and system configuration. TCSUNBOW/TCS reserves the right of final interpretation.
