TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH50/RH40
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH50/RH40
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH50/RH40
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH50/RH40
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH50/RH40
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH50/RH40
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH50/RH40
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH50/RH40
Specifications
Memory Type :
DDR5 / DDR4 DRAM
Model Number :
RH50/RH40
Heat Sink :
Yes
MOQ :
1
Storage Temperature Range :
-40-75℃
Delivery Time :
1-7
Color :
Black/White/Silver/Grey/Red/Orange
Payment Terms :
L/C,D/P,T/T
Operating Temperature Range :
0-75℃
Form Factor :
UDIMM
Certification :
RoHS,CE,FCC,ISO
RGB Lighting :
Yes
Place of Origin :
China
Installation Type :
Internal
Brand Name :
TCSUNBOW/TCS
Description

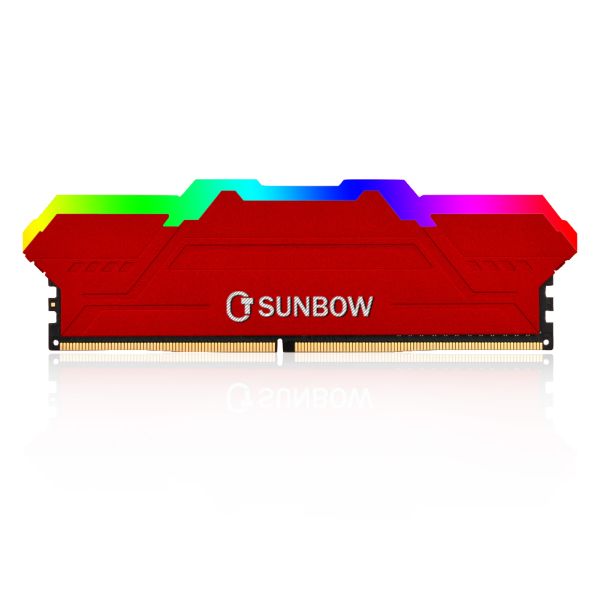

  • The RH50/RH40 combines a heat sink with integrated RGB lighting, bringing both thermal functionality and visual customization to desktop memory.
  • With black, white, gray, orange, red, and silver color options, the series gives PC builders more freedom to match different cases, components, and build styles.
  • Choose DDR5 for newer desktop platforms or DDR4 for compatible previous-generation systems, with the same RGB-equipped design available across both memory generations.
  • DDR5 configurations are available at 4800MHz, 5600MHz, 6000MHz, and 6400MHz, while DDR4 options range from 2400MHz to 4200MHz.
  • Capacities from 8GB to 32GB provide flexible choices for different desktop configurations, from everyday computing to gaming and multitasking.
Series DDR5 RGB With Heatsink UDIMM Series(RH50 Series)
Brand KingDian
Capacity 8GB 16GB 32GB
Model Number RH50-DDR5-PC-8GB RH50-DDR5-PC-16GB RH50-DDR5-PC-32GB
EAN 6935515143284 6935515143277 6935515143260 6935515143253 6935515143246 6935515143239 6935515143222 6935515143215 6935515143185 6935515143178 6935515143161 6935515143154
Memory Speed / Frequency 4800MHz 5600MHz 6000MHZ 6400MHZ 4800MHz 5600MHz 6000MHZ 6400MHZ 4800MHz 5600MHz 6000MHZ 6400MHZ
Rank (1Rx8/2Rx8/8Rx4) 1Rx8 1Rx8 2Rx8 2Rx8 1Rx8 1Rx8 2Rx8 2Rx8 2Rx8 2Rx8 2Rx8 2Rx8
CAS Latency CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102 CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102 CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102
Operating Voltage 1.1v 1.1v 1.35 1.4v 1.1v 1.1v 1.35 1.4v 1.1v 1.1v 1.35 1.4v
No. of Memory IC 8/16
Power Consumption 3W
Controller IC NO
Overclock Support (YES / NO) NO
ECC (Error Correction Code) (YES/NO) NO
Net Weight (g) 45g
Gross Weight (g) 80g
Pin Count 288
OEM/ODM Support YES
Heat Sink / Heat Spreader YES
RGB lights YES
Form Factor UDIMM
Computer Memory Type (DRAM/SDRAM) DRAM
Operating Temperature 0-70℃
Storage Temperature -40~85℃
Warranty 3 Years
No. of Memory Channels (Single/Dual) (Single/Dual)

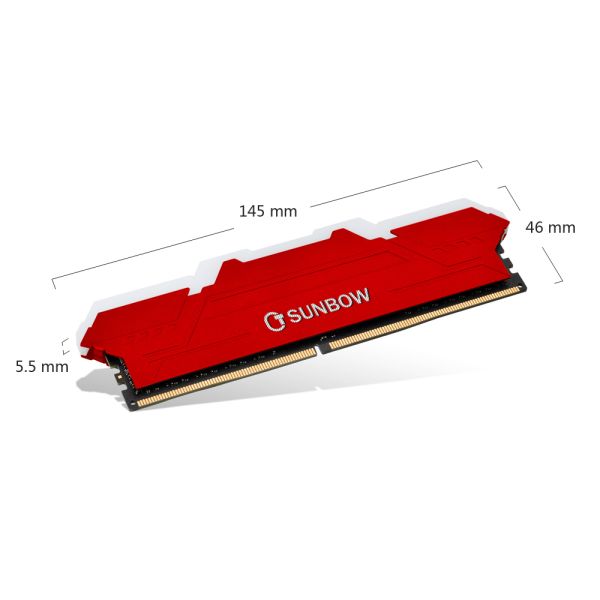

Product Dimension (W x D x H) in mm 145x46x5.5mm
Buffered / Un-buffered Memory Un-buffered Memory
Memory IC Brand Micron/Samsung/Sk Hynix
Note: All specifications and performance data are for reference purposes only. Actual results may vary depending on platform and system configuration. TCSUNBOW/TCS reserves the right of final interpretation.
