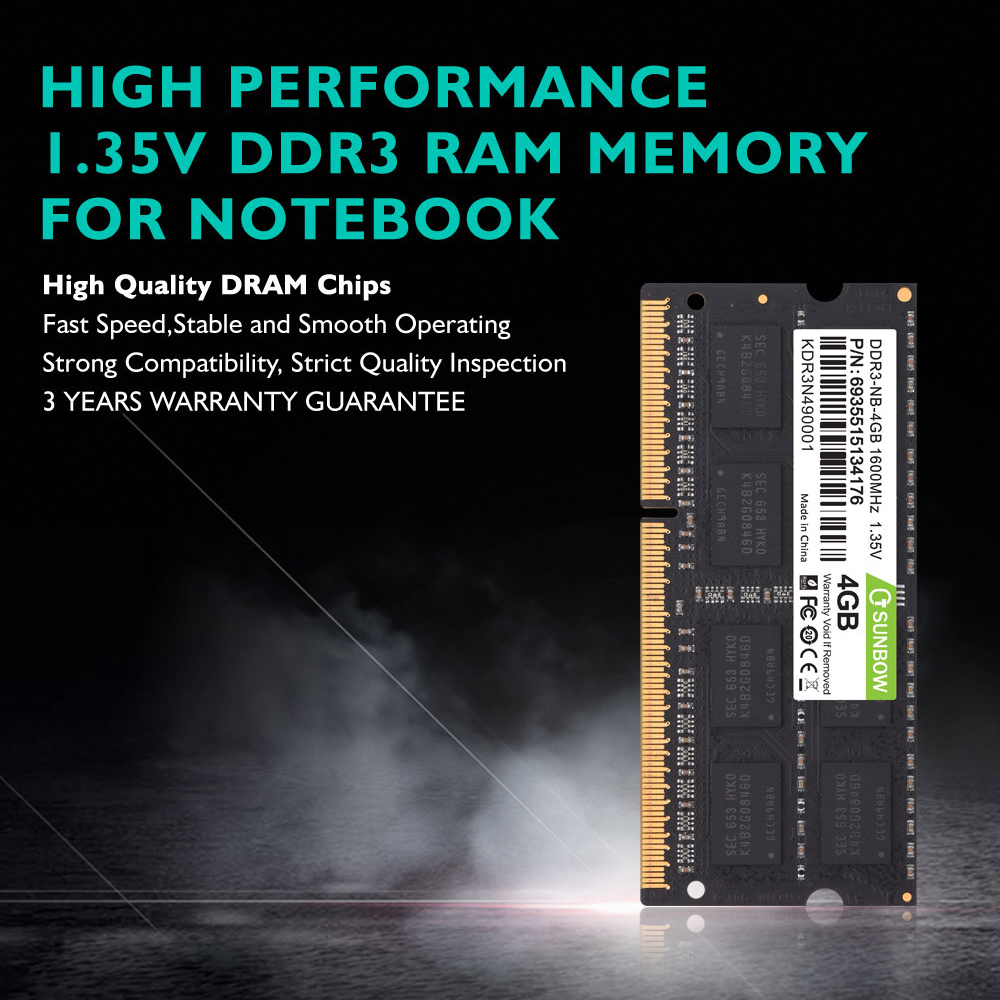

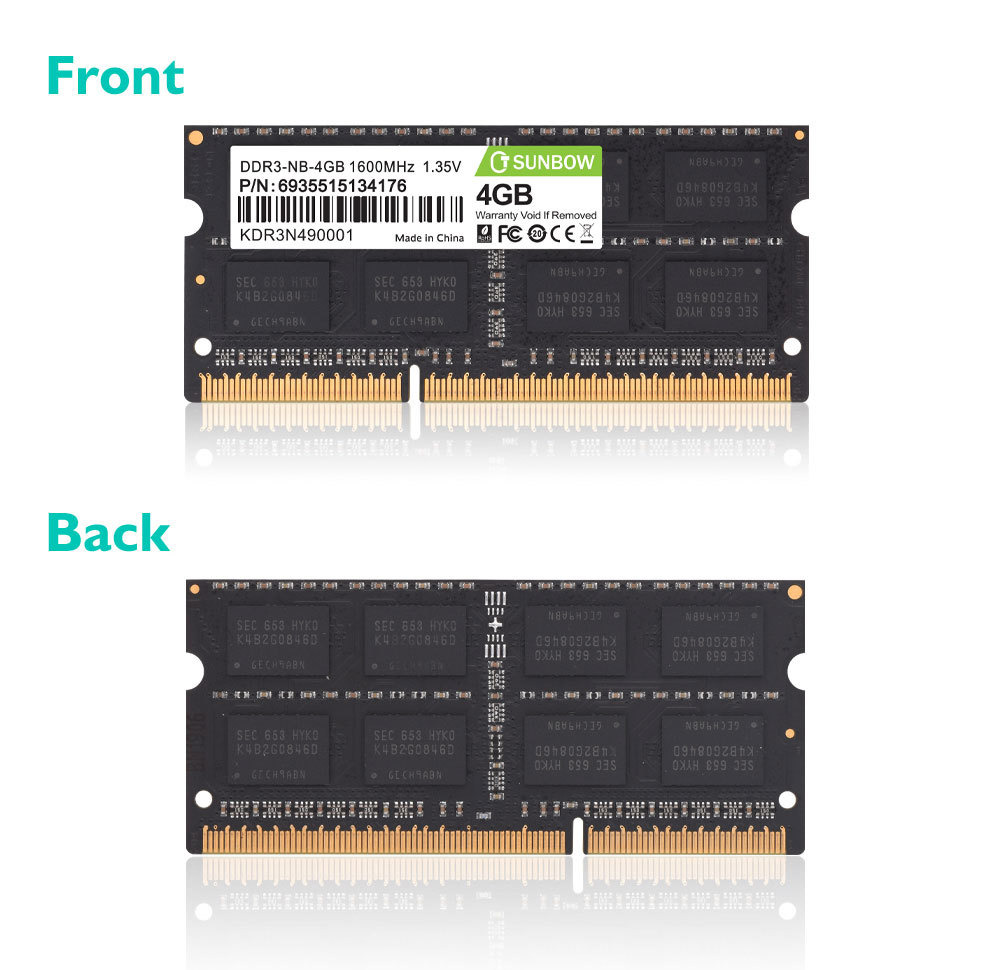

TCSUNBOW DDR3 Memory SODIMM Series
TCSUNBOW DDR3 Memory SODIMM Series
TCSUNBOW DDR3 Memory SODIMM Series
TCSUNBOW DDR3 Memory SODIMM Series
TCSUNBOW DDR3 Memory SODIMM Series
TCSUNBOW DDR3 Memory SODIMM Series
TCSUNBOW DDR3 Memory SODIMM Series
TCSUNBOW DDR3 Memory SODIMM Series
TCSUNBOW DDR3 Memory SODIMM Series
TCSUNBOW DDR3 Memory SODIMM Series
Specifications
Installation Type :
Internal
Model Number :
DDR3 SODIMM Series
Operating Temperature Range :
0-75℃
MOQ :
1
Payment Terms :
L/C,D/P,T/T
Storage Temperature Range :
-40-75℃
Certification :
RoHS,CE,FCC,ISO
Delivery Time :
1-7
Form Factor :
SODIMM
Brand Name :
TCSUNBOW/TCS
Memory Type :
DDR3 DRAM
Place of Origin :
China
Description

  • As an upgrade-oriented memory solution, the series can help extend the usable life of compatible DDR3 systems without changing the entire computing platform.

  • The compact module size makes installation suitable for laptops, Mini PCs, and other devices with limited internal space.

  • The 1600MHz option provides a higher-frequency configuration for systems that support the corresponding DDR3 specification, while 1333MHz offers an alternative for compatible platforms.

  • Capacities of 2GB, 4GB, and 8GB provide several options for replacing existing modules or expanding available system memory.

  • The modules operate at 1.35V, following the specified low-voltage configuration for this DDR3 SODIMM series.

Series DDR3 SODIMM Series
Brand TCSUNBOW
Capacity 2GB 4GB 8GB
Model Number DDR3-NB-2GB DDR3-NB-4GB DDR3-NB-8GB
EAN 6935515103745 6935515103752 6935515103769
Memory Speed / Frequency 1333MHz 1600MHz 1600MHz
Memory Bandwidth (GB/s) 10700 12800 12800
Rank (1Rx8/2Rx8/8Rx4) 1RX8 1Rx8/2RX8 2Rx8
CAS Latency CL 9-9-9-24 CL11-11-11-28 CL11-11-11-28
Operating Voltage 1.35V/1.5V 1.35V 1.35V/1.5V
No. of Memory IC 8 8/16 8/16
Power Consumption 6W Max
Controller IC None
Overclock Support (YES / NO) NO
ECC (Error Correction Code) (YES/NO) NO
Net Weight (g) 10g
Gross Weight (g) 26g
Pin Count 260
OEM/ODM Support Yes
Heat Sink / Heat Spreader NO
Form Factor SODIMM
Computer Memory Type (DRAM/SDRAM) DRAM
Operating Temperature 0~70℃
Storage Temperature -40~85℃
Warranty 3 Years
No. of Memory Channels (Single/Dual) Single

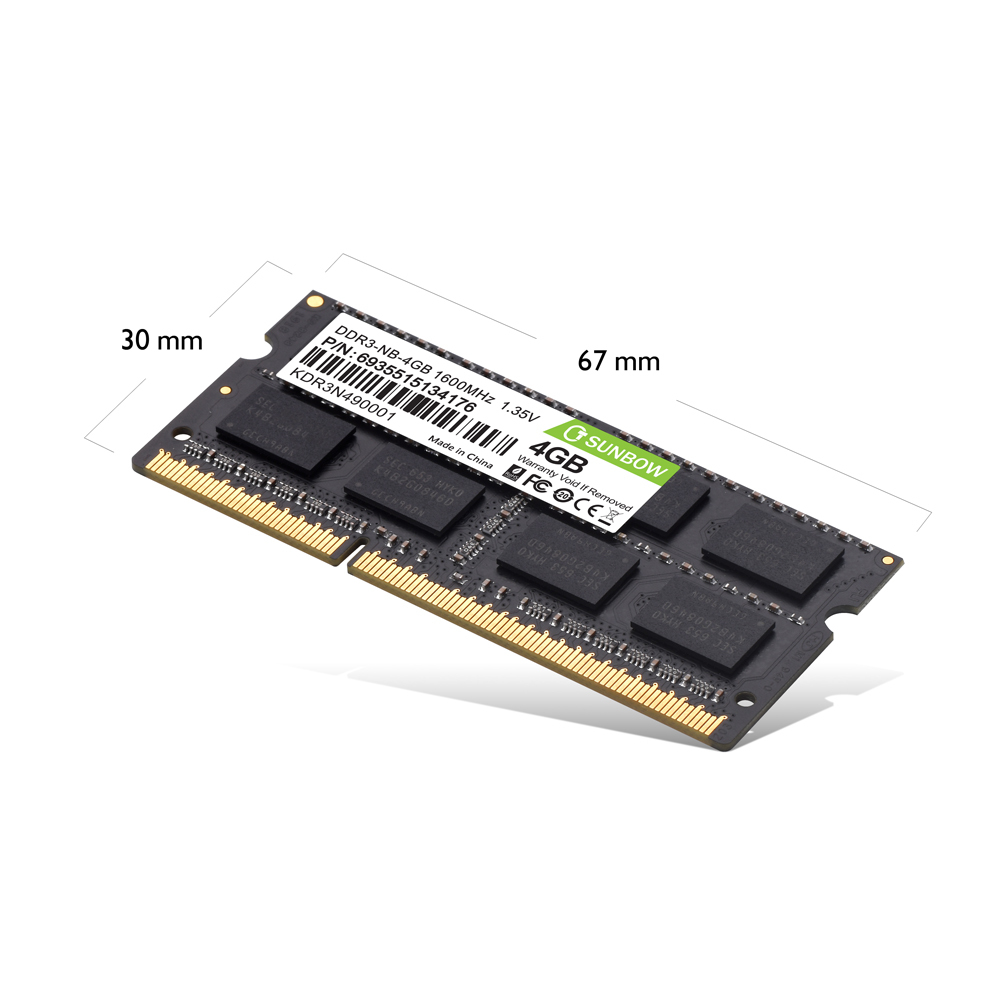

Product Dimension (W x D x H) in mm 68x30x3.2mm
Buffered / Un-buffered Memory Un-buffered Memory
Memory IC Brand Micron/Samsung/Sk Hynix
Note: All specifications and performance data are for reference purposes only. Actual results may vary depending on platform and system configuration. TCSUNBOW/TCS reserves the right of final interpretation.
