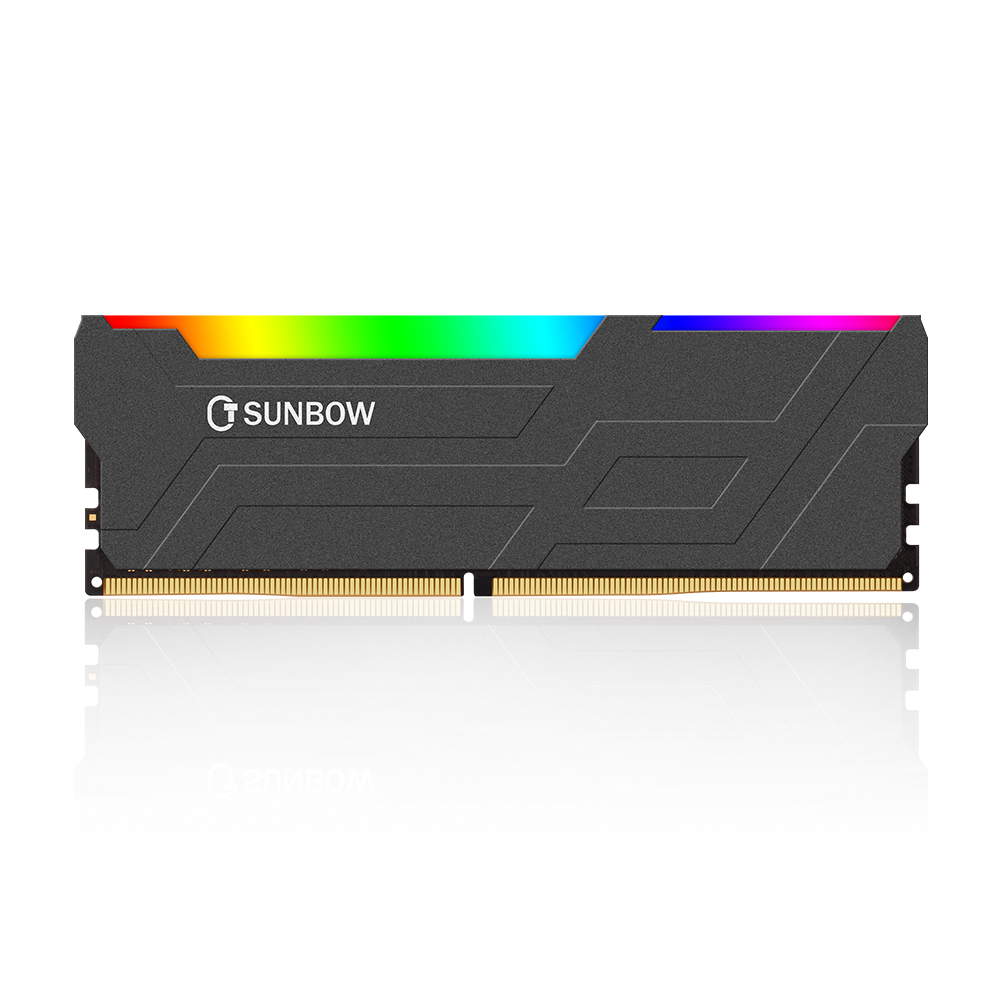

TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH52/RH42
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH52/RH42
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH52/RH42
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH52/RH42
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH52/RH42
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH52/RH42
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH52/RH42
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH52/RH42
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH52/RH42
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH52/RH42
Specifications
Model Number :
RH52/RH42
Installation Type :
Internal
MOQ :
1
RGB Lighting :
Yes
Payment Terms :
L/C,D/P,T/T
Heat Sink :
Yes
Certification :
RoHS,CE,FCC,ISO
Memory Type :
DDR5 / DDR4 DRAM
Delivery Time :
1-7
Operating Temperature Range :
0-75℃
Storage Temperature Range :
-40-75℃
Brand Name :
TCSUNBOW/TCS
Form Factor :
UDIMM
Place of Origin :
China
Color :
Black/Silver
Description

  • The minimalist exterior allows the RGB lighting to take the visual lead, creating a straightforward look that works across different PC configurations.

  • Available in black and silver, the design fits both dark and light-themed builds while keeping the distinctive line pattern intact.

  • DDR5 covers 4800–6400MHz; DDR4 covers 2400–4200MHz across five speed tiers. With 8GB, 16GB, and 32GB capacities, the series covers a range of memory requirements for everyday computing, gaming, and multitasking.

  • Built in the standard UDIMM form factor, the modules are intended for compatible desktop platforms and memory slots.

  • An operating temperature range of 0°C to 75°C and storage temperature range of -40°C to 75°C support use across a range of desktop environments

Series DDR5 RGB With Heatsink UDIMM Series(RH52 Series)
Brand TCSUNBOW
Capacity 8GB 16GB 32GB
Model Number RH52-DDR5-PC-8GB RH52-DDR5-PC-16GB RH52-DDR5-PC-32GB
EAN 6935515143925 6935515143918 6935515143901 6935515143895 6935515143888 6935515143871 6935515143864 6935515143857 6935515143826 6935515143819 6935515143802 6935515143796
Memory Speed / Frequency 4800MHZ 5600MHZ 6000MHZ 6400MHZ 4800MHz 5600MHz 6000MHZ 6400MHZ 4800MHz 5600MHz 6000MHZ 6400MHZ
Rank (1Rx8/2Rx8/8Rx4) 1Rx8 1Rx8 2Rx8 2Rx8 1Rx8 1Rx8 2Rx8 2Rx8 2Rx8 2Rx8 2Rx8 2Rx8
CAS Latency CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102 CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102 CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102
Operating Voltage 1.1v 1.1v 1.35 1.4v 1.1v 1.1v 1.35 1.4v 1.1v 1.1v 1.35 1.4v
No. of Memory IC 8/16
Power Consumption 3W
Controller IC NO
Overclock Support (YES / NO) NO
ECC (Error Correction Code) (YES/NO) NO
Net Weight (g) 55g
Gross Weight (g) 90g
Pin Count 288
OEM/ODM Support YES
Heat Sink / Heat Spreader YES
RGB lights YES
Form Factor UDIMM
Computer Memory Type (DRAM/SDRAM) DRAM
Operating Temperature 0-70℃
Storage Temperature -40~85℃
Warranty 3 Years
No. of Memory Channels (Single/Dual) (Single/Dual)

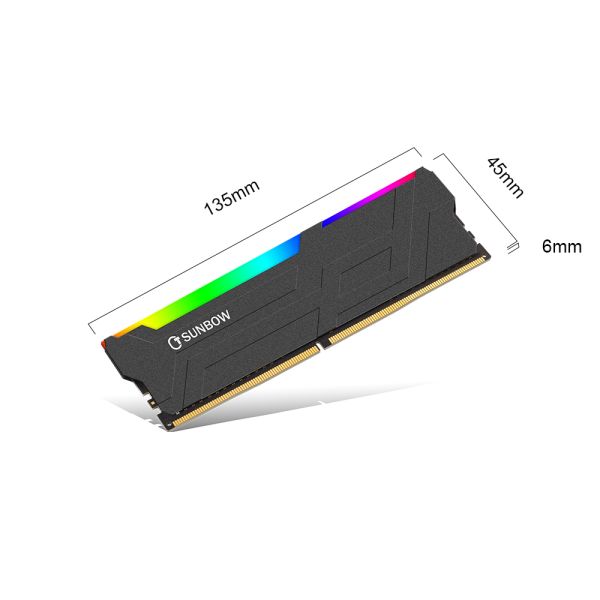

Product Dimension (W x D x H) in mm 136x45x6mm
Buffered / Un-buffered Memory Un-buffered Memory
Memory IC Brand Micron/Samsung/Sk Hynix
Note: All specifications and performance data are for reference purposes only. Actual results may vary depending on platform and system configuration. TCSUNBOW/TCS reserves the right of final interpretation.
