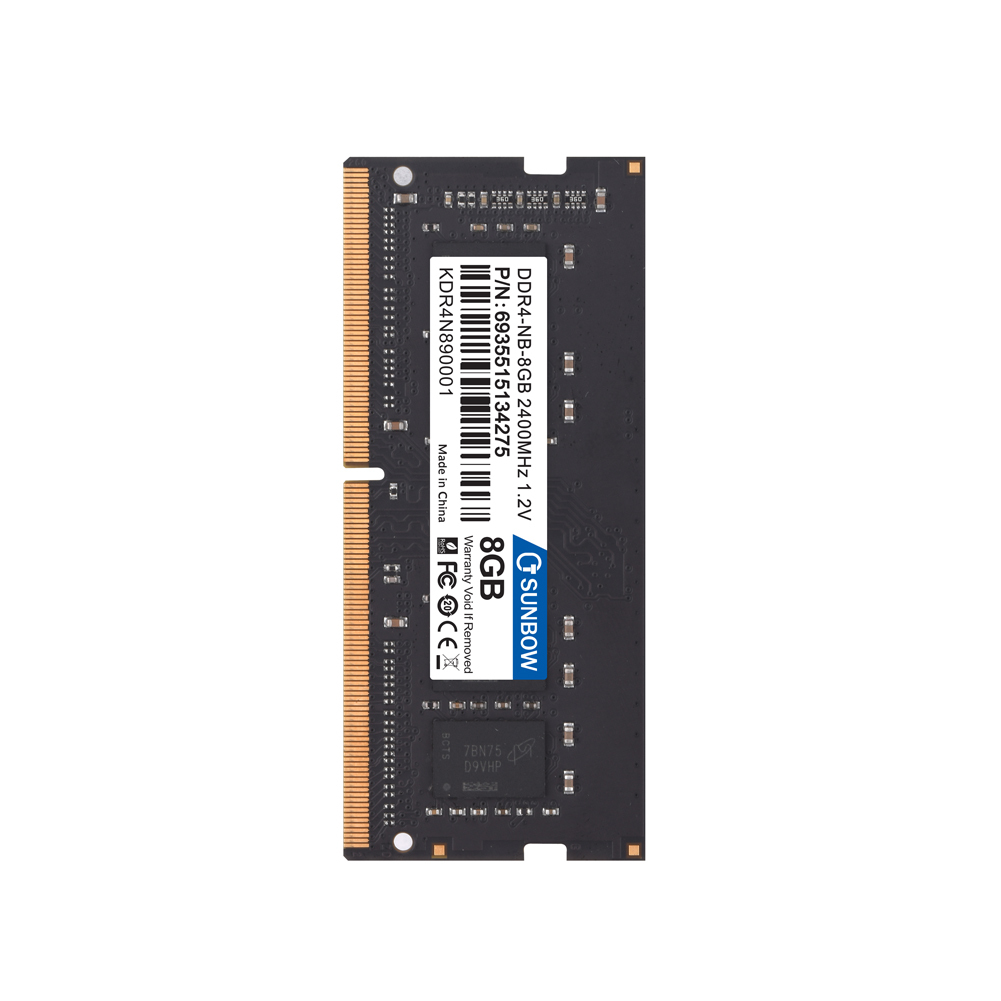

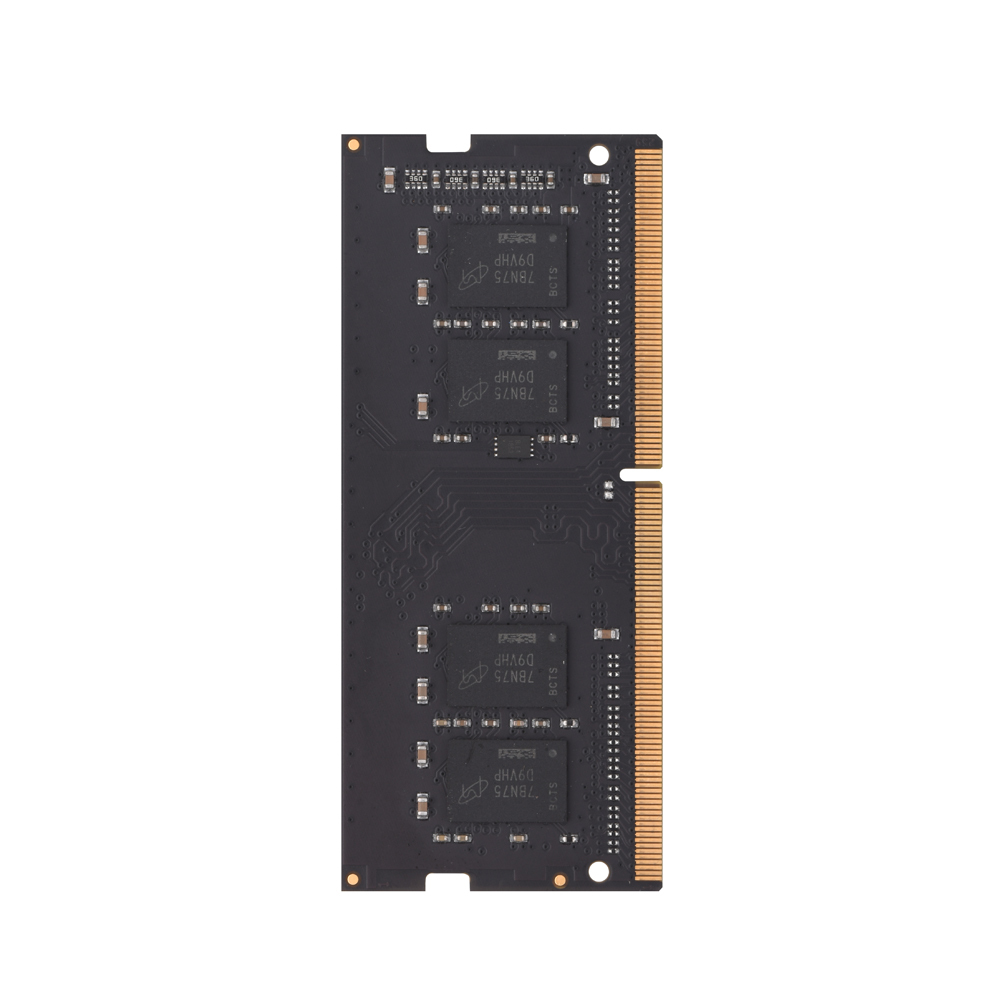

TCSUNBOW DDR4 Memory SODIMM Series
TCSUNBOW DDR4 Memory SODIMM Series
TCSUNBOW DDR4 Memory SODIMM Series
TCSUNBOW DDR4 Memory SODIMM Series
TCSUNBOW DDR4 Memory SODIMM Series
TCSUNBOW DDR4 Memory SODIMM Series
TCSUNBOW DDR4 Memory SODIMM Series
TCSUNBOW DDR4 Memory SODIMM Series
TCSUNBOW DDR4 Memory SODIMM Series
TCSUNBOW DDR4 Memory SODIMM Series
Specifications
Delivery Time :
1-7
Form Factor :
SODIMM
Model Number :
DDR4 SODIMM Series
Payment Terms :
L/C,D/P,T/T
Installation Type :
Internal
Certification :
RoHS,CE,FCC,ISO
Storage Temperature Range :
-40-75℃
MOQ :
1
Memory Type :
DDR4 DRAM
Brand Name :
TCSUNBOW/TCS
Operating Temperature Range :
0-75℃
Place of Origin :
China
Description
  • For laptops and compact PCs, adding memory can provide more room for multitasking, applications, browser tabs, and larger files.

  • The compact design makes the series suitable for laptop upgrades as well as Mini PCs, all-in-one systems, and other compatible compact computing platforms.

  • Frequency options of 2400MHz, 2666MHz, and 3200MHz cover a range of DDR4 platforms, from established systems to higher-speed compatible configurations.

  • Available in 4GB, 8GB, 16GB, and 32GB capacities, the series provides flexible choices for different memory requirements.

  • Operating at 1.2V, the modules follow the standard voltage specification for DDR4 memory.

Series DDR4 SODIMM Series
Brand TCSUNBOW
Capacity 4GB 8GB 16GB 32GB
Model Number DDR4-NB-4GB DDR4-NB-8GB DDR4-NB-16GB DDR4-NB-32GB
EAN 6935515103981 6935515103998 6935515104001 6935515104018 6935515104025 6935515104049 6935515104056 6935515104063 6935515104070
Memory Speed / Frequency 2400MHz 2666MHz 2400MHz 2666MHz 3200MHz 2666MHz 3200MHz 2666MHz 3200MHz
Memory Bandwidth (GB/s) 19200 21300 21300 21300
Rank (1Rx8/2Rx8/8Rx4) 1Rx8 1Rx8 2Rx8 2Rx8
CAS Latency CL15-15-15-35 CL19-19-19-43 CL15-15-15-35 CL19-19-19-43 CL22-22-22-52 CL19-19-19-43 CL22-22-22-52 CL19-19-19-43 CL22-22-22-52
Operating Voltage 1.2V
No. of Memory IC 4//8//16
Power Consumption 3W
Controller IC NO
Overclock Support (YES / NO) NO
ECC (Error Correction Code) (YES/NO) NO
Net Weight (g) 10g
Gross Weight (g) 25g
Pin Count 260
OEM/ODM Support YES
Heat Sink / Heat Spreader NO
Form Factor SODIMM
Computer Memory Type (DRAM/SDRAM) DRAM
Operating Temperature 0-70℃
Storage Temperature -40~85℃
Warranty 3 Years
No. of Memory Channels (Single/Dual) (Single/Dual)

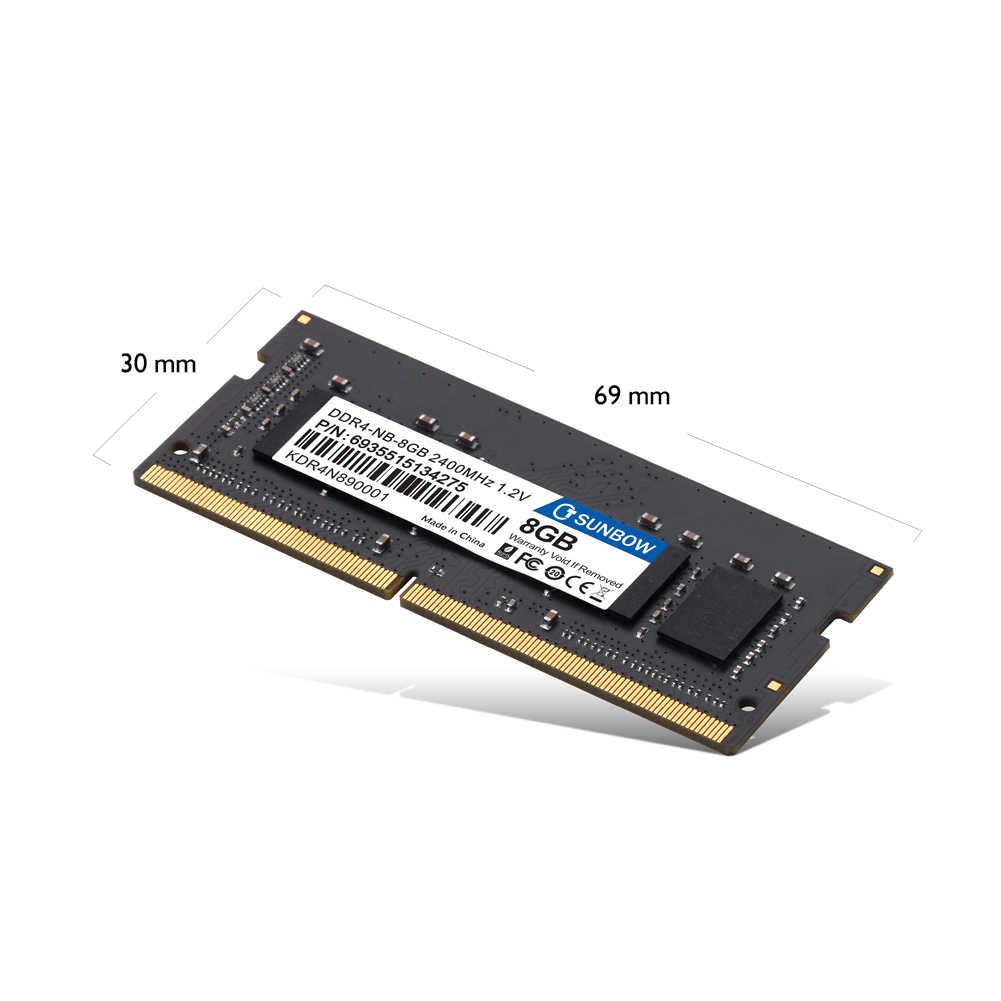

Product Dimension (W x D x H) in mm 70x30x3mm
Buffered / Un-buffered Memory Un-buffered Memory
Memory IC Brand Micron/Samsung/Sk Hynix
Note: All specifications and performance data are for reference purposes only. Actual results may vary depending on platform and system configuration. TCSUNBOW/TCS reserves the right of final interpretation.
