TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH53/RH43
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH53/RH43
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH53/RH43
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH53/RH43
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH53/RH43
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH53/RH43
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH53/RH43
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH53/RH43
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH53/RH43
TCSUNBOW DDR5 DDR4 RGB Memory Heat Sink Series RH53/RH43
Specifications
Delivery Time :
1-7
Operating Temperature Range :
0-75℃
Model Number :
RH53/RH43
Installation Type :
Internal
Certification :
RoHS,CE,FCC,ISO
Memory Type :
DDR5 / DDR4 DRAM
MOQ :
1
RGB Lighting :
Yes
Payment Terms :
L/C,D/P,T/T
Heat Sink :
Yes
Storage Temperature Range :
-40-75℃
Brand Name :
TCSUNBOW/TCS
Form Factor :
UDIMM
Place of Origin :
China

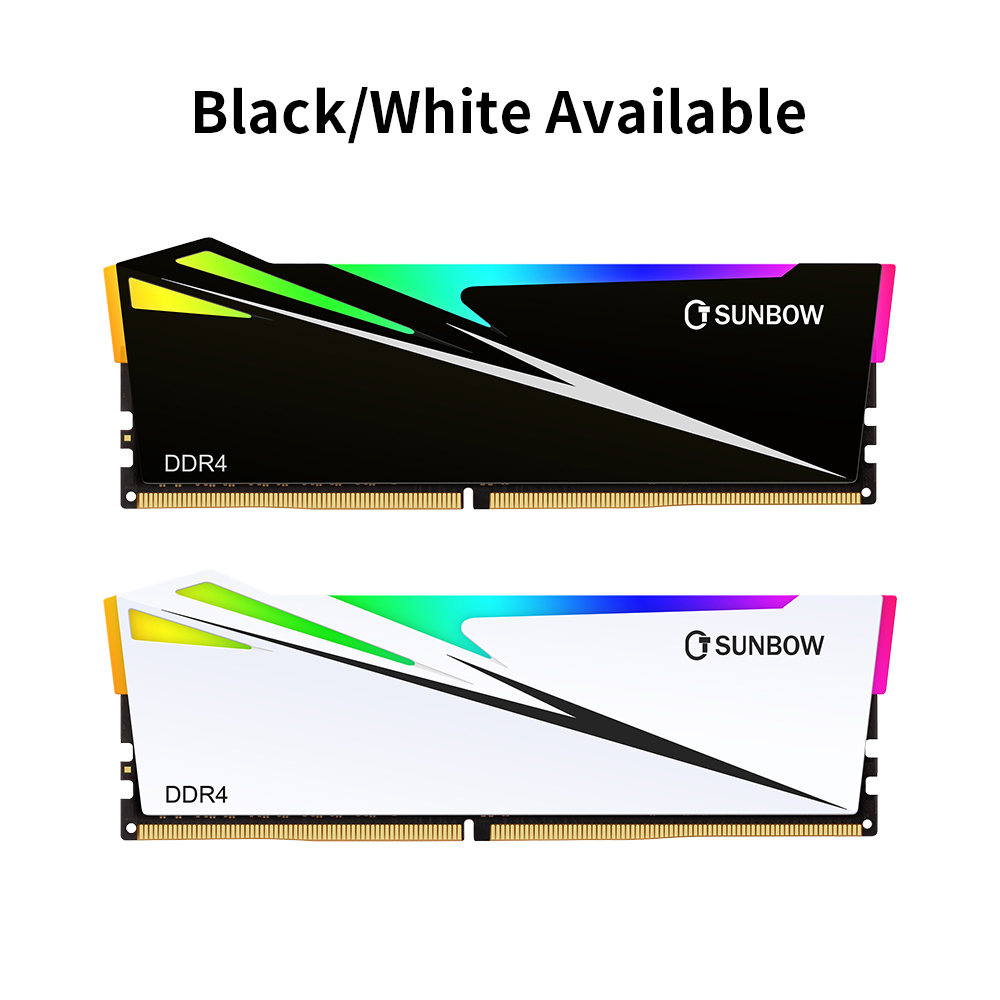

Color :
Black/White
Description

  • A distinctive diagonal structure runs from the upper-left toward the lower-right, giving the RH53/RH43 a directional appearance inspired by the shape of a blade.

  • The heat sink combines the visual structure with a functional role in managing heat around the memory module.

  • The UDIMM form factor is intended for compatible desktop platforms, providing a straightforward option for upgrades and new PC configurations.

  • DDR5 supports 4800MHz, 5600MHz, 6000MHz, and 6400MHz frequency options, while DDR4 is available at 2400MHz, 2666MHz, 3000MHz, 3200MHz, and 4200MHz.

  • Choose from 8GB, 16GB, and 32GB capacities to build different levels of system memory according to application requirements.

Series DDR5 RGB With Heatsink UDIMM Series(RH53 Series)
Brand TCSUNBOW
Capacity 8GB 16GB 32GB
Model Number RH53-DDR5-PC-8GB RH53-DDR5-PC-16GB RH53-DDR5-PC-32GB
EAN 6935515150251 6935515150244 6935515150237 6935515150213 6935515150206 6935515150190 6935515150183 6935515150176 6935515150145 6935515150138 6935515150121 6935515150114
Memory Speed / Frequency 4800MHZ 5600MHZ 6000MHZ 6400MHZ 4800MHz 5600MHz 6000MHZ 6400MHZ 4800MHz 5600MHz 6000MHZ 6400MHZ
Rank (1Rx8/2Rx8/8Rx4) 1Rx8 1Rx8 2Rx8 2Rx8 1Rx8 1Rx8 2Rx8 2Rx8 2Rx8 2Rx8 2Rx8 2Rx8
CAS Latency CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102 CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102 CL40-40-40-77 CL46-45-45-90 CL46-48-48-96 CL56-56-56-102
Operating Voltage 1.1v 1.1v 1.35 1.4v 1.1v 1.1v 1.35 1.4v 1.1v 1.1v 1.35 1.4v
No. of Memory IC 8/16
Power Consumption 3W
Controller IC NO
Overclock Support (YES / NO) NO
ECC (Error Correction Code) (YES/NO) NO
Net Weight (g) 55g
Gross Weight (g) 90g
Pin Count 288
OEM/ODM Support YES
Heat Sink / Heat Spreader YES
RGB lights YES
Form Factor UDIMM
Computer Memory Type (DRAM/SDRAM) DRAM
Operating Temperature 0-70℃
Storage Temperature -40~85℃
Warranty 3 Years
No. of Memory Channels (Single/Dual) (Single/Dual)
Product Dimension (W x D x H) in mm 136x45x6mm
Buffered / Un-buffered Memory Un-buffered Memory
Memory IC Brand Micron/Samsung/Sk Hynix
Note: All specifications and performance data are for reference purposes only. Actual results may vary depending on platform and system configuration. TCSUNBOW/TCS reserves the right of final interpretation.
