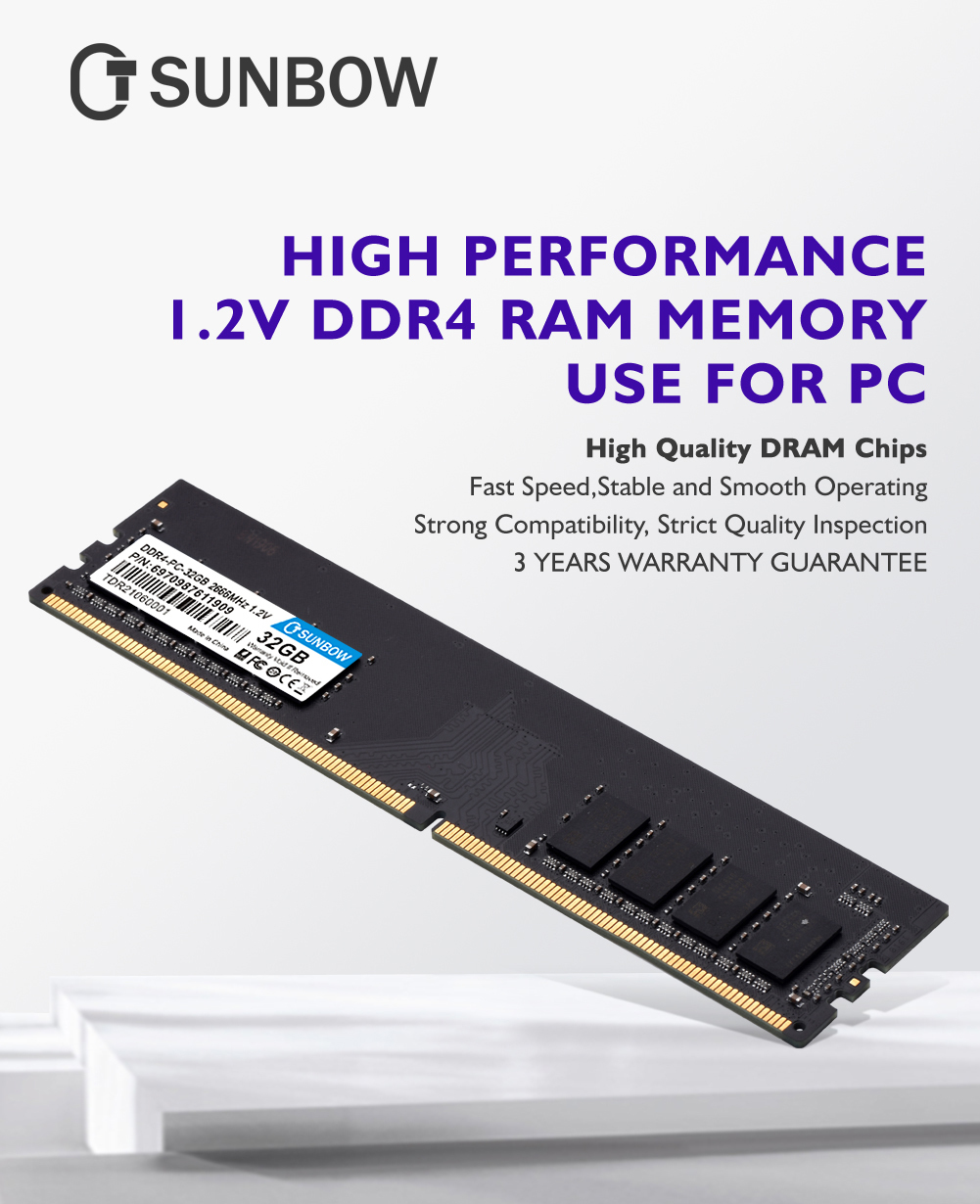

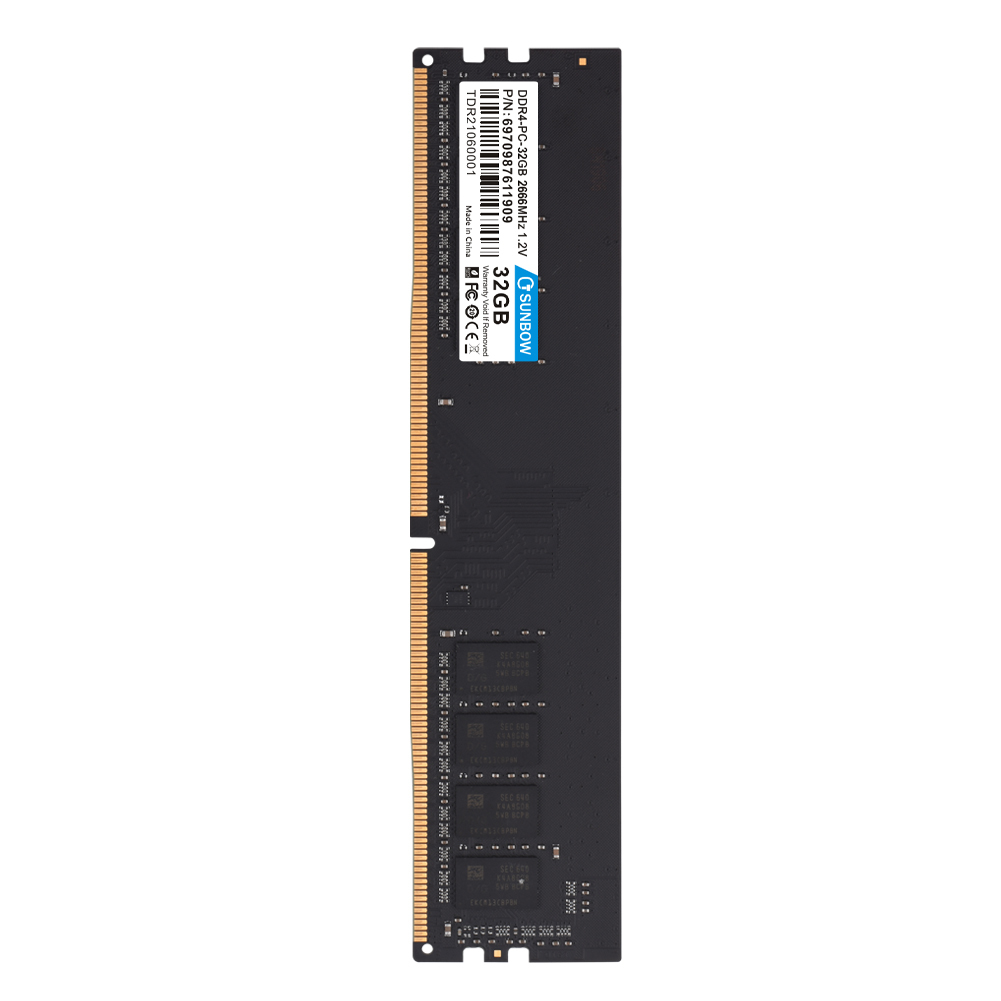

TCSUNBOW DDR4 Memory UDIMM Series
TCSUNBOW DDR4 Memory UDIMM Series
TCSUNBOW DDR4 Memory UDIMM Series
TCSUNBOW DDR4 Memory UDIMM Series
TCSUNBOW DDR4 Memory UDIMM Series
TCSUNBOW DDR4 Memory UDIMM Series
TCSUNBOW DDR4 Memory UDIMM Series
TCSUNBOW DDR4 Memory UDIMM Series
TCSUNBOW DDR4 Memory UDIMM Series
TCSUNBOW DDR4 Memory UDIMM Series
Specifications
Form Factor :
UDIMM
Model Number :
DDR4 UDIMM Series
Memory Type :
DDR4 DRAM
Certification :
RoHS,CE,FCC,ISO
Storage Temperature Range :
-40-75℃
MOQ :
1
Payment Terms :
L/C,D/P,T/T
Delivery Time :
1-7
Operating Temperature Range :
0-75℃
Place of Origin :
China
Installation Type :
Internal
Brand Name :
TCSUNBOW/TCS
Description
  • The TCSUNBOW DDR4 UDIMM Series provides a straightforward memory solution for compatible desktop platforms, covering a range of everyday computing and system upgrade needs.

  • For everyday computing, adding more memory can provide greater headroom for multitasking, web browsing, office applications, and other common workloads.

  • The 3200MHz option provides a higher-frequency choice for compatible systems, while 2400MHz and 2666MHz configurations support a range of established DDR4 platforms.

  • Available capacities include 4GB, 8GB, 16GB, and 32GB, making it possible to scale system memory according to the requirements of different applications.

  • The modules support an operating temperature range of 0°C to 75°C, covering typical desktop operating environments.

Series DDR4 UDIMM Series
Brand TCSUNBOW
Capacity 4GB 8GB 16GB 32GB
Model Number DDR4-PC-4GB DDR4-PC-8GB DDR4-PC-16GB DDR4-PC-32GB
EAN 6935515103851 6935515103868 6935515103875 6935515103882 6935515103899 6935515103905 6935515103912 6935515103929 6935515103936 6935515103943
Memory Speed / Frequency 2400MHz 2666MHz 2400MHz 2666MHz 3200MHz 2400MHz 2666MHz 3200MHz 2666MHz 3200MHz
Memory Bandwidth (GB/s) 19200 21300 21300 21300
Rank (1Rx8/2Rx8/8Rx4) 1Rx8 1Rx8 2Rx8 2Rx8
CAS Latency CL15-15-15-35 CL19-19-19-43 CL15-15-15-35 CL19-19-19-43 CL22-22-22-52 CL15-15-15-35 CL19-19-19-43 CL22-22-22-52 CL19-19-19-43 CL22-22-22-52
Operating Voltage 1.2V
No. of Memory IC 4//8//16
Power Consumption 3W
Controller IC NO
Overclock Support (YES / NO) NO
ECC (Error Correction Code) (YES/NO) NO
Net Weight (g) 17g
Gross Weight (g) 34g
Pin Count 288
OEM/ODM Support YES
Heat Sink / Heat Spreader NO
Form Factor UDIMM
Computer Memory Type (DRAM/SDRAM) DRAM
Operating Temperature 0-70℃
Storage Temperature -40~85℃
Warranty 3 Years
No. of Memory Channels (Single/Dual) (Single/Dual)
Product Dimension (W x D x H) in mm 133x30x3mm
Buffered / Un-buffered Memory Un-buffered Memory
Memory IC Brand Micron/Samsung/Sk Hynix
Note: All specifications and performance data are for reference purposes only. Actual results may vary depending on platform and system configuration. TCSUNBOW/TCS reserves the right of final interpretation.
