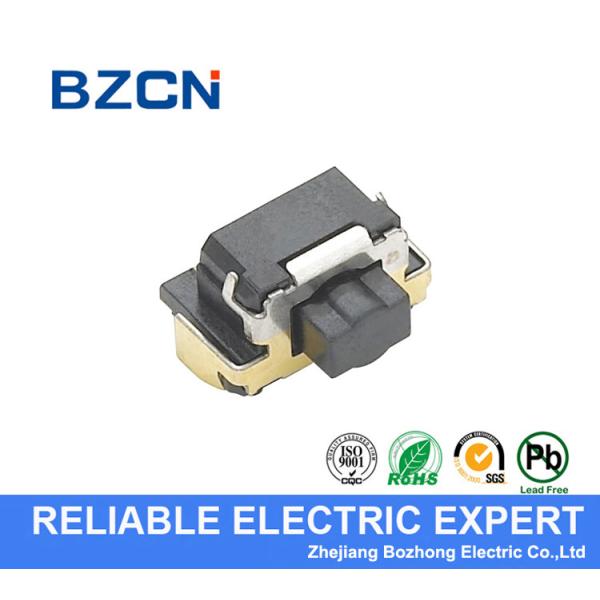

Side Press Double Action Tactile Switch / Micro Push Button Switch For PCB
Side Press Double Action Tactile Switch / Micro Push Button Switch For PCB
Side Press Double Action Tactile Switch / Micro Push Button Switch For PCB
Side Press Double Action Tactile Switch / Micro Push Button Switch For PCB
Specifications
Brand Name :
BZCN
Model Number :
TS-B016
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Operation :
Double action
Press :
Side press
Rating :
50mA
Voltage :
12v
Direction :
Horizontal
Terminal :
SMD
Description

side press double action momentary tactile switch for PCB micro push button switch

Operating force:100gf/160gf/260gf
Life cycles:100/200/500/1000 thousand cycles
Features: anti dust / flux

Spec.

Model No. TS-B016
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Drawing.
