Horizontal Direction Double Action Tactile Switch For PC Board Push Switch
Horizontal Direction Double Action Tactile Switch For PC Board Push Switch
Specifications
Brand Name :
BZCN
Model Number :
TS-J005
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Operation :
push
Material :
PA66
Rating :
50mA
Voltage :
12v
Direction :
Horizontal
Terminal :
SMD
Description

Lever and push operation type with center push tactile switch for PC Board push switch

Follow recommended P.W.B. piercing plan in outside drawing page.

Please be cautions not to give excessive static load or shock to swiches.

Following the soldering process,do not try to clean the switch with a solvent or the like.

Safeguard the switch assembly against flux penetration from its topside.

Preservation under high temperature and high high humidity or corrosive gas should be
avoided Especially . When you need to preserve for a long period ,do not open the carton.

Spec.

Model No. TS-J005
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

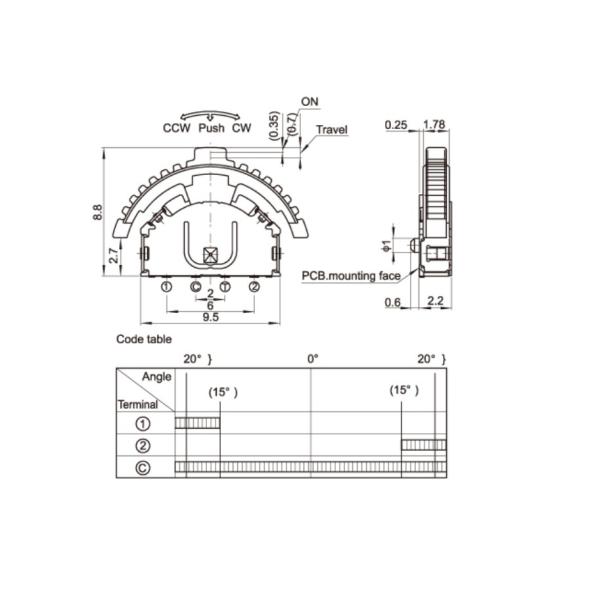

Drawing.

Horizontal Direction Double Action Tactile Switch For PC Board Push Switch
