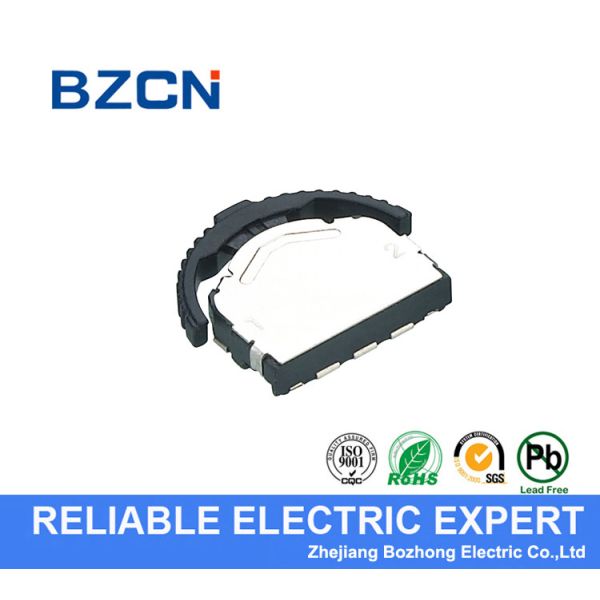

Compact Momentary Tactile Switch Black Knob 12v Voltage With Metal Nickel Cover
Compact Momentary Tactile Switch Black Knob 12v Voltage With Metal Nickel Cover
Compact Momentary Tactile Switch Black Knob 12v Voltage With Metal Nickel Cover
Compact Momentary Tactile Switch Black Knob 12v Voltage With Metal Nickel Cover
Specifications
Brand Name :
BZCN
Model Number :
TS-J004
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Operation :
Front push
Material :
PA66
Rating :
50mA
Voltage :
12v
Direction :
Horizontal
Terminal :
SMD
Description

Lever and push operation type momentary tactile switch black knob with metal nickle cover

Right angle, board edge mounted, tact switch offers an ultra compact design. This tact switch sits on the edge of the PC board, offering a unique design opportunity. It has a 200,000 life expectancy.

Applications for this tact switch include audio visual, computer peripherals, consumer electronics, telecommunications, instrumentation, medical equipment, and more.

Features.

Compact, low profile surface mounting type keyboard switch.

Contacts are completely sealed.

Reflow solderable.

Sharp click feel with positive tactile feedback.

Spec.

Model No. TS-J003
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds
