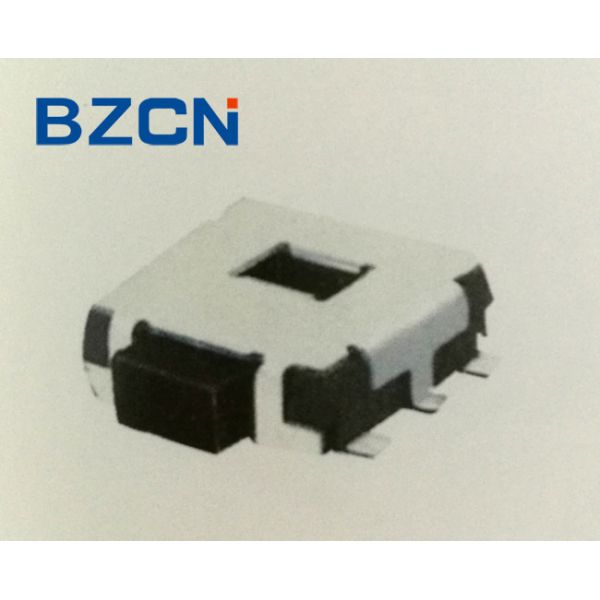

6 PIN Terminal Double Action Tactile Switch 5 X 5.5 Mm Size 300g Operating Force
6 PIN Terminal Double Action Tactile Switch 5 X 5.5 Mm Size 300g Operating Force
Specifications
Brand Name :
BZCN
Model Number :
TS-H005
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Operation :
Double action
Press :
Side press
Rating :
50mA
Voltage :
12v
Pin :
6pins
Terminal :
SMD
Description

5 * 5.5 mm multi function double action type tactile switch SMD 6 PIN terminal

Operation life:

Measurement shall be made following the test
set forth below:

DC 12V, 50 mA resistive load

Rate of operation: 2 times/s

Operating Force:300g

Average fault-free
life:50000 Cycles

Spec.

Model No. TS-H005
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

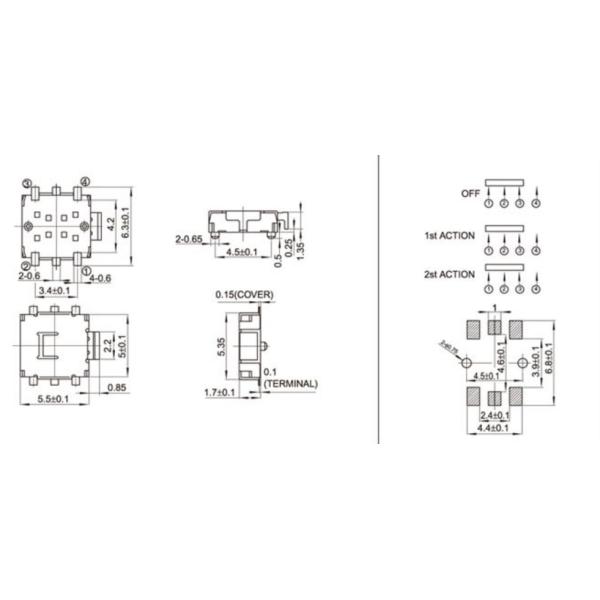

Drawing.

6 PIN Terminal Double Action Tactile Switch 5 X 5.5 Mm Size 300g Operating Force
