Thin Type Double Action Switch / Low Profile Tactile Switch High Precision
Thin Type Double Action Switch / Low Profile Tactile Switch High Precision
Specifications
Brand Name :
BZCN
Model Number :
TS-H006
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Operation :
Double action
Type :
Thin
Rating :
50mA
Voltage :
12v
Direction :
Horizontal
Terminal :
SMD
Description

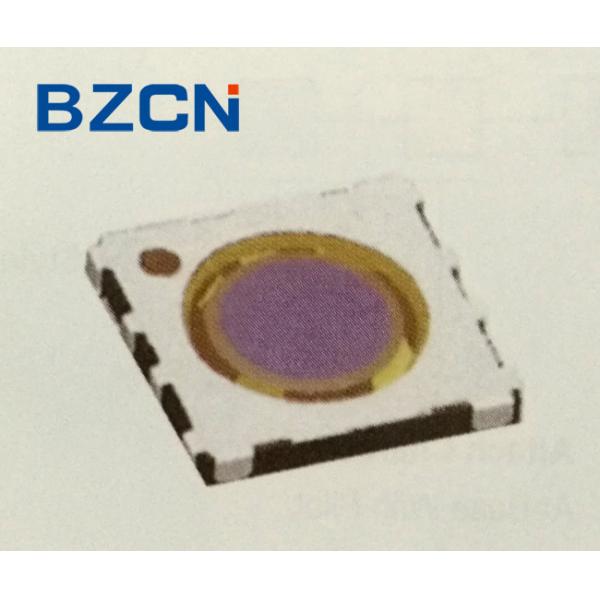

4.1 * 4.3 mm super thin multi function double action type tactile switch SMD terminal

Salt Mist.

The switch shall be checked after following
test:

temperature: 35℃±2℃

salt solution : 5±1%(solids by
mass)

After test, salt deposit shall be removed by
running water.

No remarkable corrosion
shall be recognized in
metal part.

Spec.

Model No. TS-H006
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

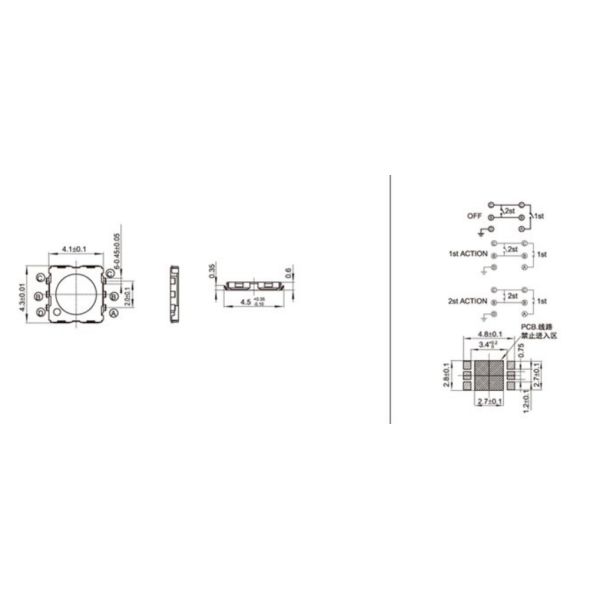

Drawing.

Thin Type Double Action Switch / Low Profile Tactile Switch High Precision
