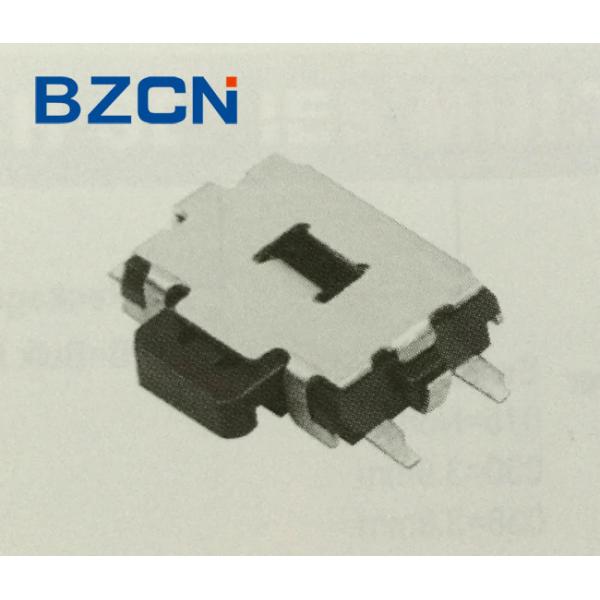

Side Press SMD Momentary Switch 50mA DC 12V Switch Rating Momentary Operation
Side Press SMD Momentary Switch 50mA DC 12V Switch Rating Momentary Operation
Specifications
Brand Name :
BZCN
Model Number :
TS-H004
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Operation :
Double action
Material :
PA66
Rating :
50mA
Voltage :
12v
Direction :
Horizontal
Terminal :
SMD
Description

3.6 * 4.7 mm multi function double action type tact switch SMD side press switch​

Vibration Resistance:

Measurements shall be made following the test
set forth below:

(1) Range of oscillation:10 to 55Hz

(2) Amplitude,pk-to-pk:1.5 mm

(3) Cycle of sweep: 10-55-10Hz in one minute,
approx.

(4) Mode of sweep: Logarithmically sweep or
uniform sweep.

(5) Direction of oscillation:

Three mutually perpendicular directions,
including the direction of stem travel.

6) 2 hours each ,for a total of 6 hours

Spec.

Model No. TS-H004
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

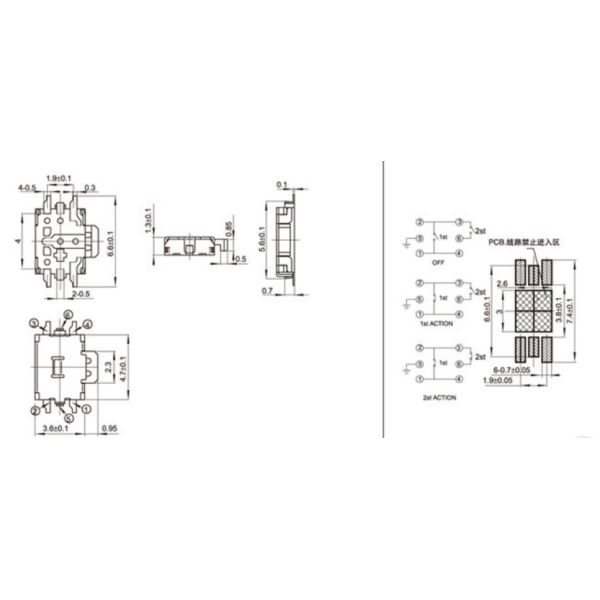

Drawing.

Side Press SMD Momentary Switch 50mA DC 12V Switch Rating Momentary Operation
