Multi Function Double Action Tactile Switch / Surface Mount Push Button
Multi Function Double Action Tactile Switch / Surface Mount Push Button
Specifications
Brand Name :
BZCN
Model Number :
TS-H002
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Operation :
Double action
Heat resistance :
Yes
Rating :
50mA
Voltage :
12v
Direction :
Vertical
Terminal :
SMD
Description

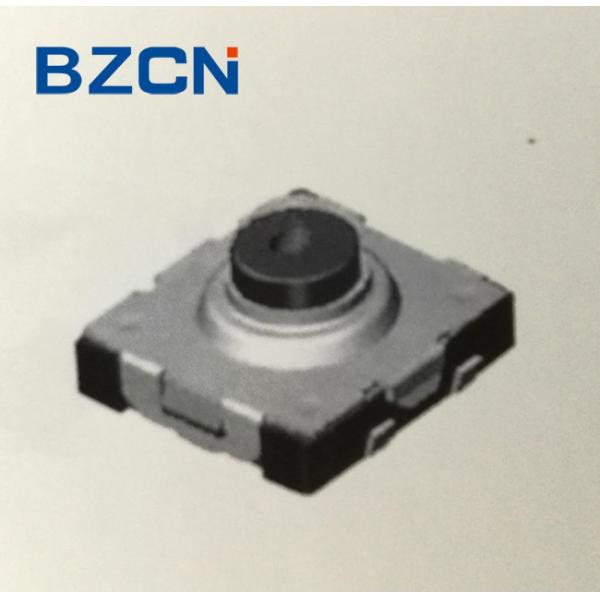

6 * 6.4 mm multi function double action type tact switch surface mounting terminal

Hand soldering

Please practice according to below conditions:
(1) Soldering temperature: 350℃ Max.
(2) Continuous soldering time: 3 s Max.
(3) Capacity of soldering iron:≤20 W

Spec.

Model No. TS-H002
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

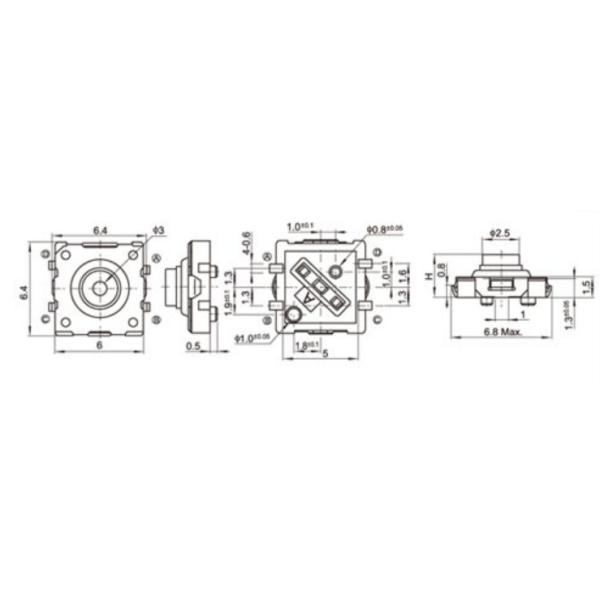

Drawing.

Multi Function Double Action Tactile Switch / Surface Mount Push Button
