Multi Function Double Action Tactile Switch / SMD Tactile Switch 6.2 X 6.5 Mm
Multi Function Double Action Tactile Switch / SMD Tactile Switch 6.2 X 6.5 Mm
Specifications
Brand Name :
BZCN
Model Number :
TS-H007
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Operation :
Double action
Material :
PA66
Rating :
50mA
Voltage :
12v
Direction :
Horizontal
Terminal :
SMD
Description

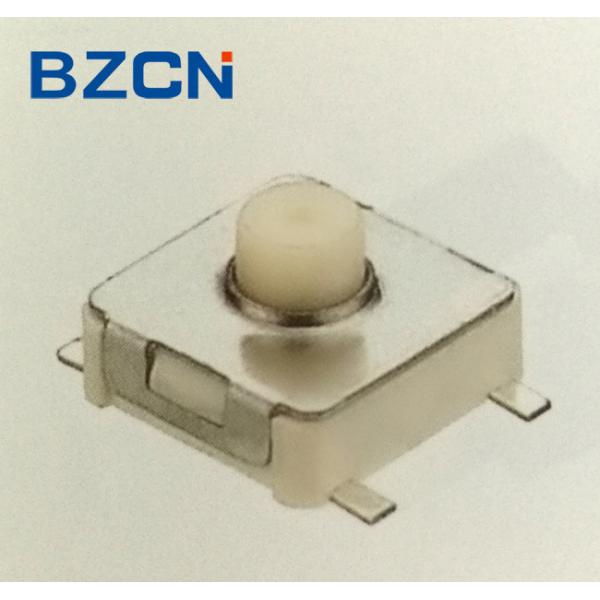

6.2 * 6.5 mm multi function white button double action type tact switch SMD type

Sulfuration
resistance:

Following the test set forth below the sample
shall be left in normal temperature and
humidity conditions for 1 h before measurements
are made:

H2S gas concentration: 3ppm±1ppm

temperature: 40±2℃(90～95%RH)

Spec.

Model No. TS-H007
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

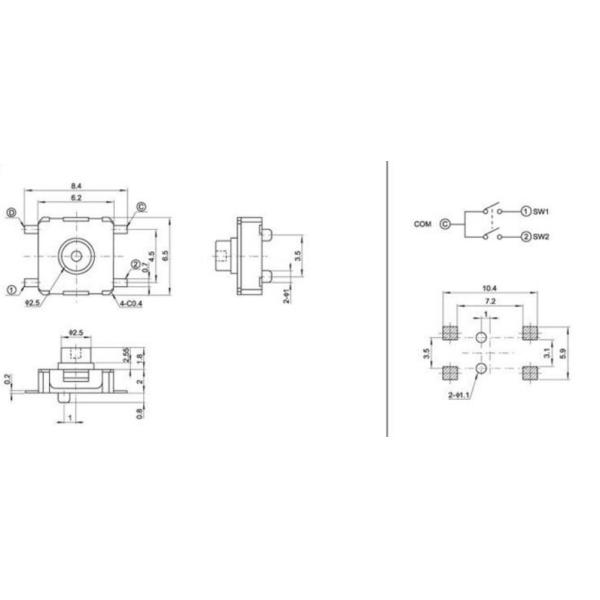

Drawing.

Multi Function Double Action Tactile Switch / SMD Tactile Switch 6.2 X 6.5 Mm
