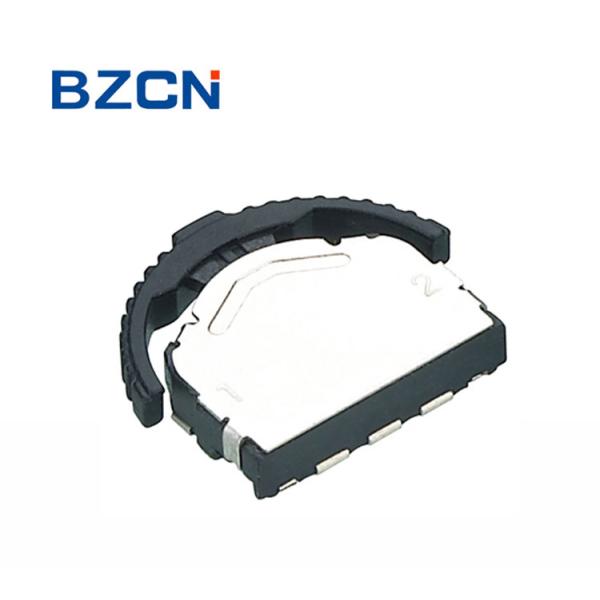

PCB Micro Push Switch Lever And Push Operation Type With Center Push Tactile Switch
PCB Micro Push Switch Lever And Push Operation Type With Center Push Tactile Switch
Specifications
Brand Name :
BZCN
Model Number :
TS-J003
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Operation :
Double action
Operation force :
180 gf
Rating :
50 mA
Voltage :
12v
Direction :
Horizontal
Terminal :
SMD
Description

Lever and push operation type with center push tactile switch for PCB micro push switch

Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

Spec.

Model No. TS-J002
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

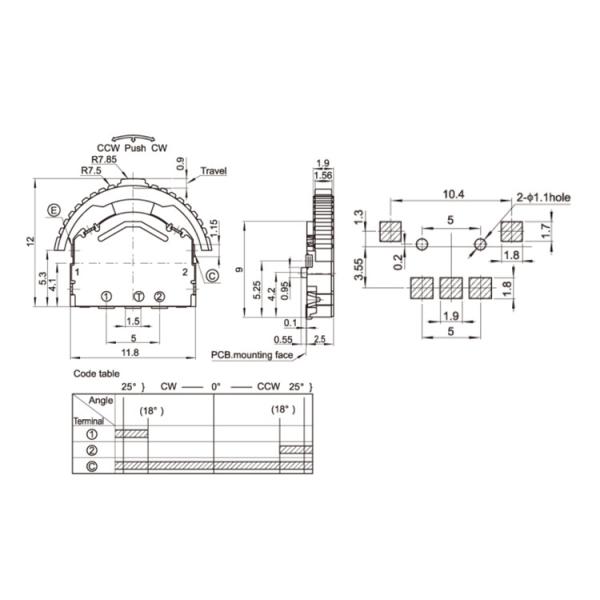

Drawing.

PCB Micro Push Switch Lever And Push Operation Type With Center Push Tactile Switch
