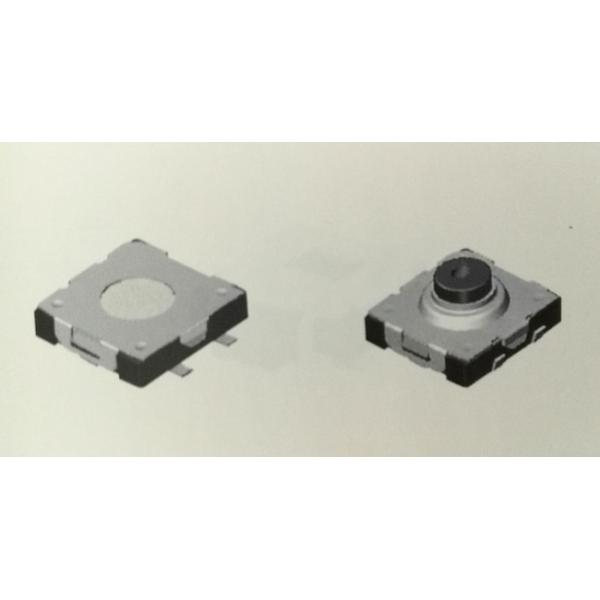

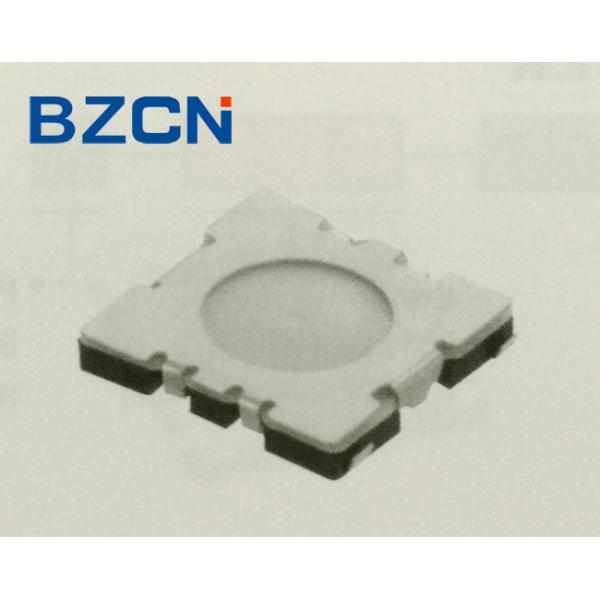

Low Profile Double Action Tactile Switch Impact Shock Resistance SMD Terminal
Low Profile Double Action Tactile Switch Impact Shock Resistance SMD Terminal
Low Profile Double Action Tactile Switch Impact Shock Resistance SMD Terminal
Low Profile Double Action Tactile Switch Impact Shock Resistance SMD Terminal
Specifications
Brand Name :
BZCN
Model Number :
TS-H003
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Operation :
Double action
Material :
PA66
Shape :
Square
Voltage :
12 v
Direction :
Vertical
Terminal :
SMD
Description

low profile multi function double action type tact switch surface mounting terminal

Impact Shock Resistance:

Measurements shall be made following the test
set forth below:

(1)Acceleration:80g

(2)Cycles of test :3 cycles each in
6directions, for a total of 18 cycles

Spec.

Model No. TS-H003
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

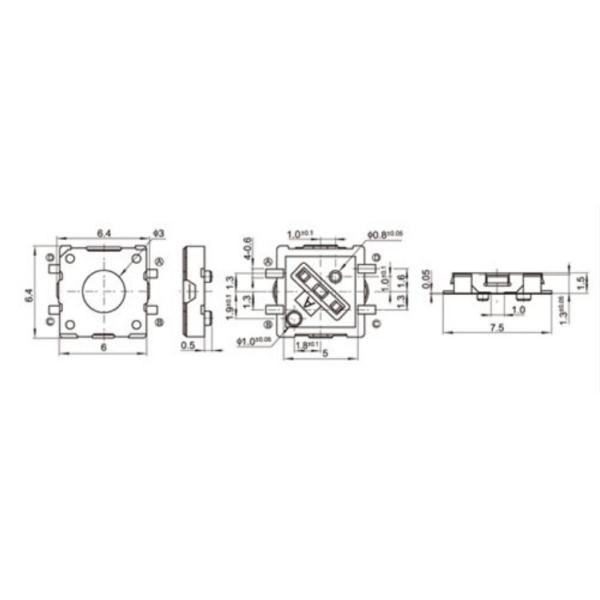

Drawing.

Low Profile Double Action Tactile Switch Impact Shock Resistance SMD Terminal
