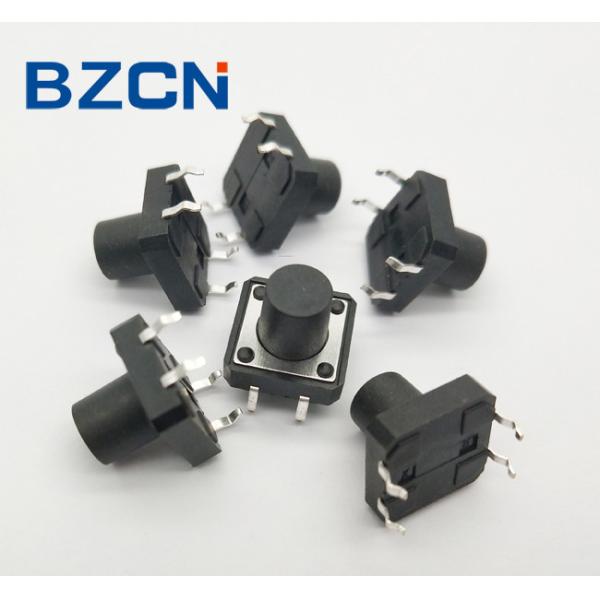

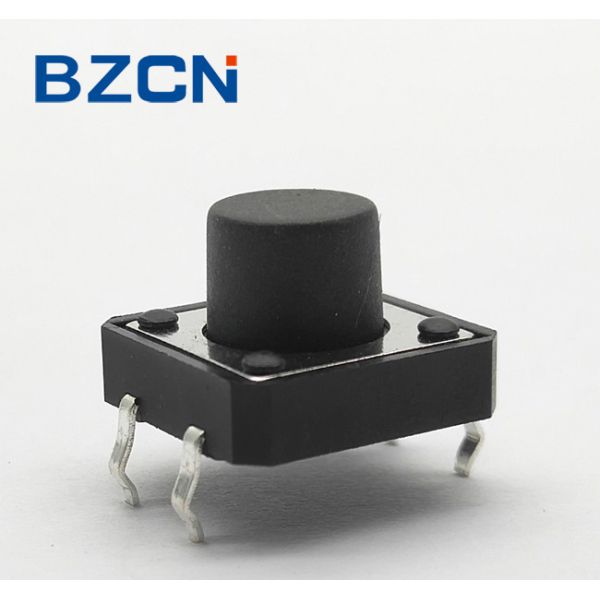

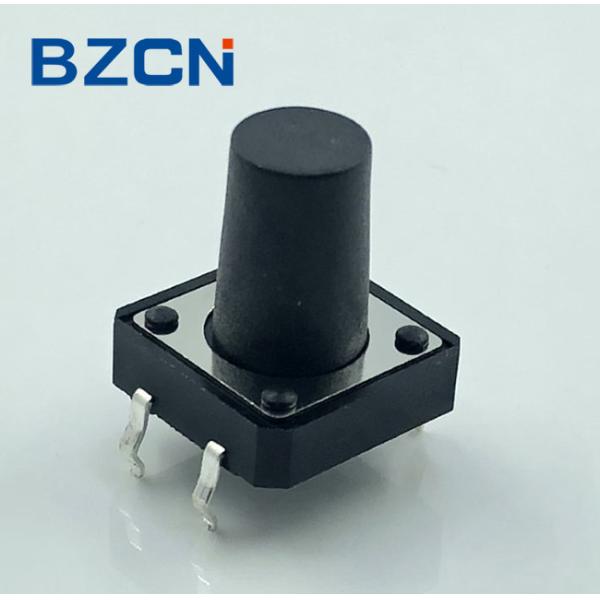

Black Momentary 12mm Tactile Switch High Operation Force With 50mA Rating
Black Momentary 12mm Tactile Switch High Operation Force With 50mA Rating
Black Momentary 12mm Tactile Switch High Operation Force With 50mA Rating
Black Momentary 12mm Tactile Switch High Operation Force With 50mA Rating
Black Momentary 12mm Tactile Switch High Operation Force With 50mA Rating
Black Momentary 12mm Tactile Switch High Operation Force With 50mA Rating
Specifications
Brand Name :
BZCN
Model Number :
TS-F001
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Operation :
Double action
Color :
Black case with Button
Rating :
50mA
Voltage :
12v
Direction :
Direct press
Terminal :
SMD
Description

high operation force black momentary 12mm tactile switch micro push button switch

Automatic soldering,

In case the automatic flow soldering is to be used

Preheat -------------- 150℃ ~ 175℃, 40 ~ 80 sec.

Peak temperature ----- 260℃ (max)

Soldering area temperature ------ 260℃, 1 ~ 4 sec, 2 times (max)

Spec.

Model No. TS-F001
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

Black Momentary 12mm Tactile Switch High Operation Force With 50mA Rating
