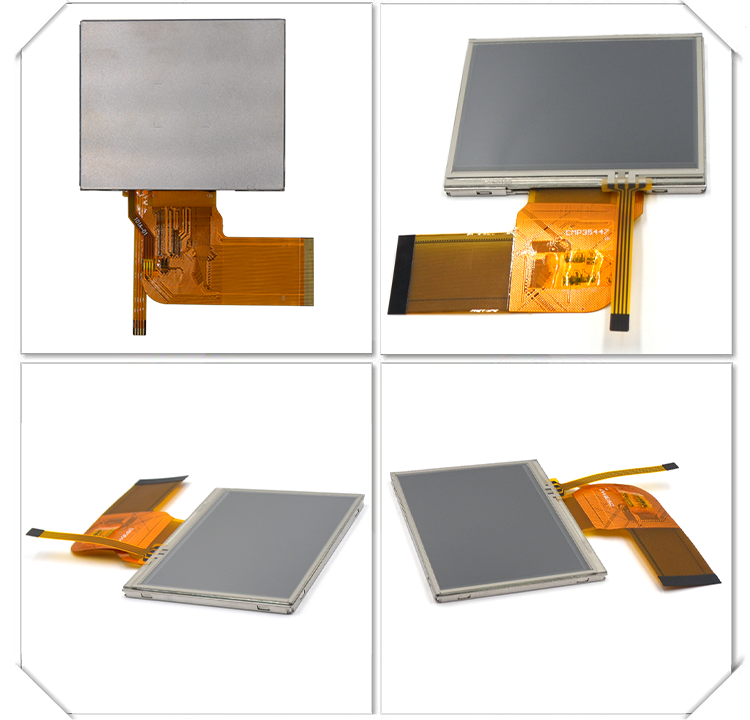

3.5 Inch Resistive SPI Color TFT LCD Panel Touch Screen Display Module 320x240
3.5 Inch Resistive SPI Color TFT LCD Panel Touch Screen Display Module 320x240
3.5 Inch Resistive SPI Color TFT LCD Panel Touch Screen Display Module 320x240
3.5 Inch Resistive SPI Color TFT LCD Panel Touch Screen Display Module 320x240
3.5 Inch Resistive SPI Color TFT LCD Panel Touch Screen Display Module 320x240
3.5 Inch Resistive SPI Color TFT LCD Panel Touch Screen Display Module 320x240
3.5 Inch Resistive SPI Color TFT LCD Panel Touch Screen Display Module 320x240
3.5 Inch Resistive SPI Color TFT LCD Panel Touch Screen Display Module 320x240
3.5 Inch Resistive SPI Color TFT LCD Panel Touch Screen Display Module 320x240
3.5 Inch Resistive SPI Color TFT LCD Panel Touch Screen Display Module 320x240
3.5 Inch Resistive SPI Color TFT LCD Panel Touch Screen Display Module 320x240
3.5 Inch Resistive SPI Color TFT LCD Panel Touch Screen Display Module 320x240
3.5 Inch Resistive SPI Color TFT LCD Panel Touch Screen Display Module 320x240
3.5 Inch Resistive SPI Color TFT LCD Panel Touch Screen Display Module 320x240
Specifications
Interface :
50 Pin, MCU/RGB/SPI
Supply Voltage :
3.3V
Color :
Color
Product Name :
320x240 TFT Display 3.5 Inch SPI TFT LCD Panel With Touch Screen
Display Type :
3.5 Inch TFT LCD Display
Viewing Angle :
6 O'Clock
Operating Temperature :
-20°C to 70°C
MOQ :
1 piece
Supply Ability :
5000000000 pieces/year
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Dimensions :
76.9mm x 63.9mm x 4.2mm
Packaging Details :
Tray + Inner Box + Carton
Controller Ic :
SSD2119
Touch Screen :
With resistive touch panel
Payment Terms :
T/T, L/C, Credit card, Cash
Display Size :
3.5 inch
Model Number :
KWH035ST54-F02
Brand Name :
Formike
Place of Origin :
China
Resolution :
320 x 240
Description

320x240 TFT Display 3.5 Inch SPI TFT LCD Panel With Touch Screen

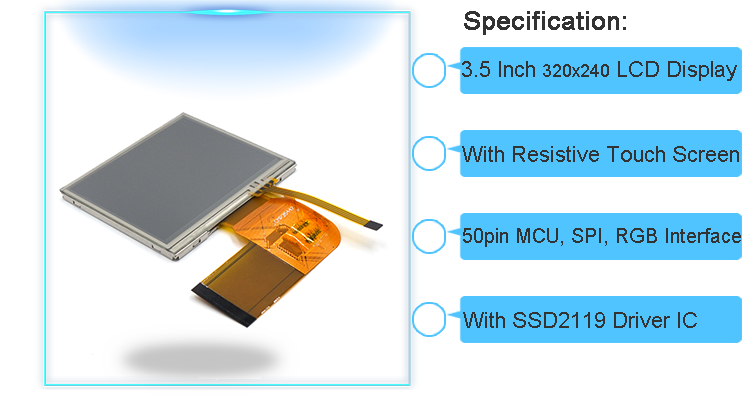

3.5 Inch Resistive SPI Color TFT LCD Panel Touch Screen Display Module 320x240

Product Name

320x240 TFT Display 3.5 Inch SPI TFT LCD Panel With Touch Screen
LCD Size 3.5 Inch TFT LCD Display Module with Resistive Touch Screen
Display Mode Transmissive
Resolution 320x240
Outline Dimension (mm) 76.90x63.90x4.20
Active Area (mm) 70.08x52.56
Dot pitch (mm) 0.219x0.219
Viewing Direction 6 O'Clock
Interface MCU, SPI, RGB Interface, 50 Pin
Driver IC SSD2119
Brightness (Cd/m2) 450
Contrast Ratio 300:1
Backlight 6 White LED

Backlight Supply

(Current/Voltage)

 40mA 9.6V
Touch Screen With Resistive Touch Screen

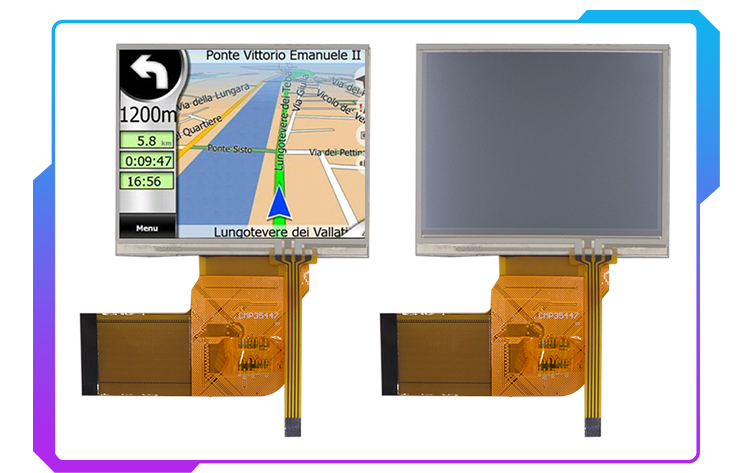

* KWH035ST54-F02 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD Display, driver IC, FPC, backlight, Resistive Touch Screen.

* It is 320x240 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
